Zhaga Book 18 4 PIN Connector Switching DC-AC

Dongguan Zelv Electronic Technology Co.,Ltd
Zhaga Book 18 4 PIN Connector Switching DC-AC thumbnail-1
Zhaga Book 18 4 PIN Connector Switching DC-AC thumbnail-2
Zhaga Book 18 4 PIN Connector Switching DC-AC thumbnail-3
Zhaga Book 18 4 PIN Connector Switching DC-AC thumbnail-4
Zhaga Book 18 4 PIN Connector Switching DC-AC photo-1
Zhaga Book 18 4 PIN Connector Switching DC-AC photo-2

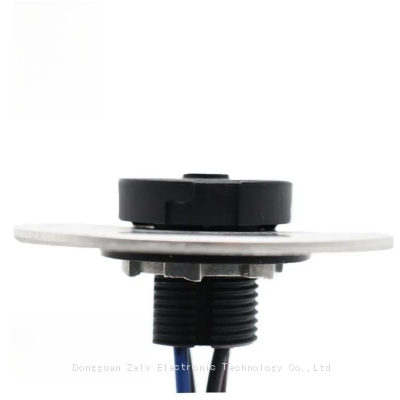

Zhaga Book 18 4 PIN Connector Switching DC-AC photo-3

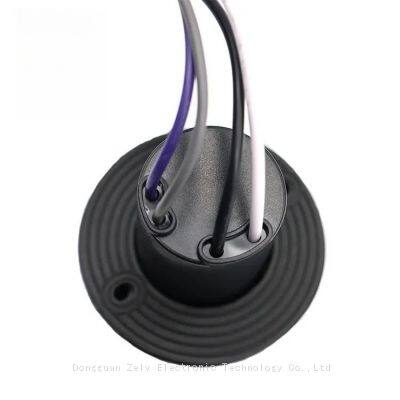

Zhaga Book 18 4 PIN Connector Switching DC-AC photo-4
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China


Key attributeIndustry-specific attributes
Rated Voltage
120-277VAC
Rated Current
30mA
Application
Residential / General-Purpose
WIFI
NO
Other attributes
Customized
Yes
Customized support
available processing socket accessories
Place of Origin
Dongguan, China
Brand Name
Zelv
Model Number
Network
none
Type
Extension Socket
Grounding
Standard Grounding
Product name
zhaga sesnor receptacle
Warranty
3 Years
Certificate
CE RoHS UL
Other

Product details

Shanghai Long-join Brand JL-710 Zhaga Book 18 4 PIN Connector Switching DC-AC







ModelJL-700
Body Dimensions (mm)Φ30*29.4
Protection Cap Dimensions (mm)Φ45.2*10.8
Gasket Dimensions (mm)36.8*2.5
Lock Nut MaterialZinc alloy
Gasket MaterialPBT+phenolic
Body ProtectionPBT
IP Ratinga base with dome to reach IP66
IK09 Capable TestPass
Can Add configure ConnectorDali 2.0 / 0-10 dimming
Application1.Outdoor Luminaires - Wall Packs - Parking Lots - Walkway.
2.Street and Area Lighting
cell control







Model

JL-710

Zhaga Input Parameter

Rated voltage range

100-277VAC

Rated Voltage Range(Max)

85-305VAC

Maximum steady-state input AC current

30mA (under 220VAC)

I2t

0.009A2s (under 220VAC)

Conversion efficiency

80%(under 220VAC)

Zhaga Output Parameter

Output voltage

24V DC

Stable voltage adjust precision

+/-2%

Rated current

0.21A

Rated power

5W

Noise

150 mVp-p

Ripple

100 mVp-p

Linear adjustment rate

+/-0.12%

Load adjustment rate

+/-5%

Po

<0.12W





Features:

• Comply with ZHAGA BOOK18 standard

• IP66 (cooperate with our ZHAGA light controller)

• Support top surface installation/side installation/upside-down installation

• Small size, suitable for installation on all kinds of lamps

• The cost is much lower than choosing a dimming driver solution with secondary voltage output

• AC wide voltage input (85~305VAC)

• No-load power consumption ≤0.12W

• Comprehensive protection: overvoltage protection/undervoltage protection/overcurrent protection/short circuit protection/ Open circuit protection/over temperature protection

• 0~10V dimming signal switch output

• CLASS II power supply

• Passed RoHs and UL certification







• The default line length is 152.4mm, and the length can be customized

• The stripping length is 10mm by default, the insulation layer is reserved, and the length can be customized

• AC wire gauge (black wire, white wire): 18AWG /AWM1015, 2.9mm outside diameter including insulation

• Signal wire gauge (purple wire, gray wire): 20AWG/AWM1015, 2.6mm outside diameter including insulation




  The size of the opening is exactly



  the same as the standard NEMA



  socket, and the lamp with the



  opening of the NEMA socket can



  also be installed directly JL-710



  socket.










Note: Compared with the NEMA standard light controller, the ZHAGA light controller has a flexible installation position and a smaller volume, which makes the lamp more beautiful. The installation position also reflects the different functions of the ZHAGA light controller. (Light control, microwave, infrared)






Note:In this project case, the combination of zhaga socket and protect cover/ shorting cap can be equivalent to the pre-installation project of NEMA standard smart street light. Retrofit and upgrade traditional street lights.Compared with the street lamp project of the NEMA socket, the zhaga socket has a more beautiful design and saves costs.








Note: We provide different sizes of zhaga light control covers and bases for you to design your own controller.







Note: This zhaga light control has the same function as the traditional nema street light controller. It controls the switch of the street light through the brightness of the ambient light and reduces the cost.






Note: This zhaga product design is mainly applied to the principle of infrared micro- wave induction. Through infrared induction of moving objects (cars or people in mo- tion), street light switches are controlled, which not only satisfies lighting needs but also saves electricity costs.






Note: This series of light controller products are based on the ZHAGA BOOK18 inter-face standard development of smart Hui type rotary lock light controller, adopts light sensor + microwave mobile combined sensor, can output DALI Dimming signal. The light controller is suitable for roads, lawns, courtyards, parks, parking lots, industrial Lighting scenes such as mines.






Note: In this project case combination, choose the zhaga socket to match the zhaga series finished light control. According to the needs of the actual project, choose the nature of the controller (light control, smart or infrared control) to choose the right product. Compared with light control and intelligent control, infrared control is generally suitable for indoors, such as large factories and underground garages. Or it can be combined with intelligent light control to realize the intelligentization of urban lighting.







Product Tags: zhaga book 18 , zhaga receptacle , zhaga sensor , DALI , D4i , zhaga socket , LED light , street lighting
