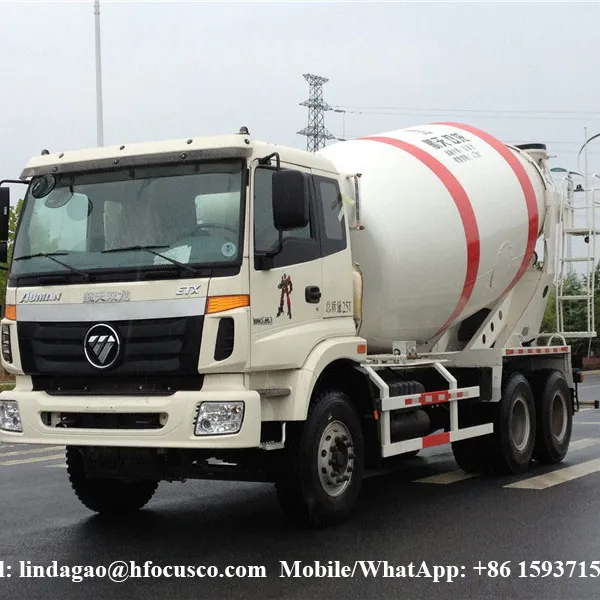

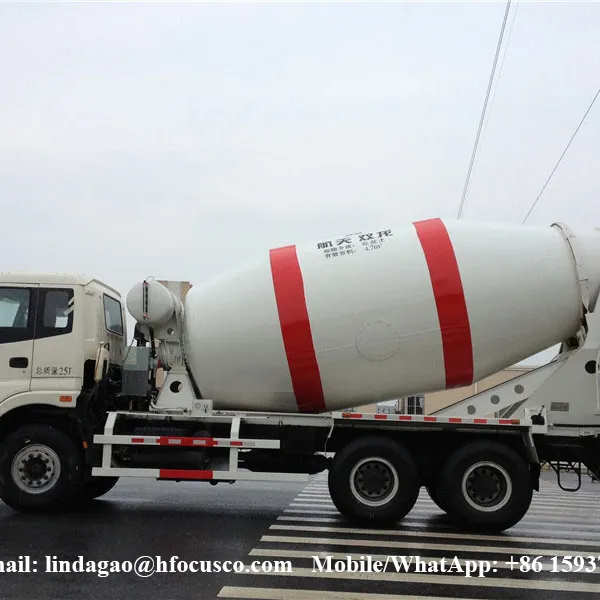

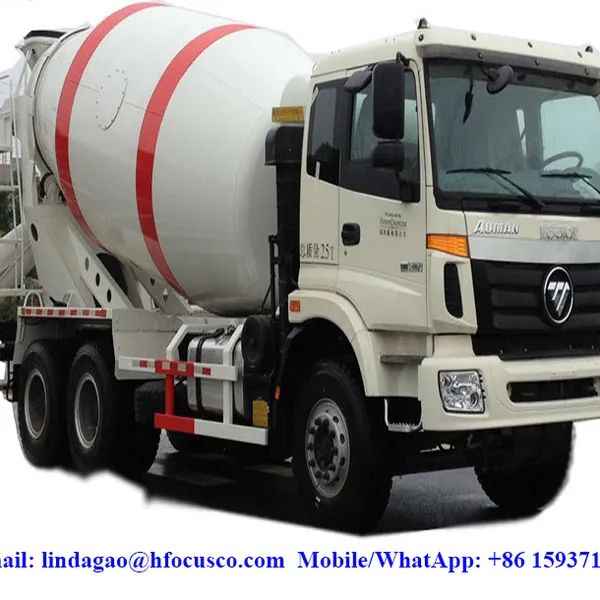

Concrete mixer truck full name concrete mixer truck, is used to transport concrete used for mixing construction trucks; Because of its shape, it is often called the field snail car. These trucks are equipped with cylindrical mixing cylinders to carry the mixed concrete. During the transportation, the mixing cylinder will be kept rotating to ensure that the concrete will not solidify. After the delivery of concrete, usually will be washed with water inside the mixing cylinder, to prevent the hardening of the concrete space, so that the volume of the mixing cylinder is less and less.
Our concrete mixer truck advantages:
Shape: The tank body adopts a pear-shaped structure with small inclination angle, low center of gravity, and safe and stable driving.
Material: The mixer drum and blade are made of 520JJ special wear-resistant steel, which can enhance wear resistance and extend service life effectively.
Structure: The sub-frame adopts the assembled cable-stayed structure to further improve the anti-torsion capability of the frame; reasonably reduce the influence of the torsion of the upper part on the chassis, and extend the service life of the chassis from the structure.
Specification of Sinotruk 6*4 12m3 Concrete mixer Truck
| Drive model | 6x4/LHD | |
| Max. Driving Speed(km/h) | 75 | |
| Cabin | Passengers Allowed in front row | 3 persons |
| Vehicle | Curb Weight(kg) | 12770 |
| Overall Dimensions(L x W x H)(mm) | 8600*2500*3700 | |
| Approach/Departure angle(°) | 21/15 | |
| Wheel Base(mm) | 3600+1350 | |
| Overhang (front/rear) (mm) | 1320/2330 | |
| Wheel Track (front/rear) (mm) | 1995/1820/1850 | |
| Axle charge(front/rear)(ton) | 43664 | |
| Tire | 12.00R20 ,10 wheels with one spare tire | |
| Engine | Model | WD615.69 |
| Air-in Type | TURBO, inter-cooling | |
| Engine Type | Vertical, In-line, water-cooling, 4 strokes | |
| Fuel | Diesel | |
| MAX Power(HP) | 336 | |
| Emission standard | Euro Ⅱ | |
| Cylinder Number | 6 | |
| Rated Speed(RPM) | 2200 | |
| MAX Torque(N.M) | 1350 | |
| Displacement(L) | 9.726 | |
| Gear Box | Model | HW15710 |
| Shift | 10manual | |
| Reverse shift | 2 | |
| Rated Speed(RPM) | 2600 | |
| MAX Torque(N.M) | 1500 | |
| Upper part | ||
| Mixing Drum | Capacity | 14cubic meters |
| Shell Material | Alloy steel(special wear- resistant material, enhance the service life of tank at least 3 times) |
|
| Lining Material | 16Mn 6mm alloy steel | |
| End plate Material | 8mm alloy steel | |
| Blade Material | Bao Steel 520 5mm alloy steel (equipped with wear-resistant strip, longer service time) |
|
| Feed Rate (m3/min) | ≥3 | |
| Discharging Rate(m3/min) | ≥2 | |
| Discharging Residual Ratio(%) | ≤0.5 | |
| Discharging Rage | 180° | |
| Operation mode | Control panel in cabin or on each side the mixer tank |
|
| Hydraulic system | Hydraulic pump | America Sauer or America Eaton |
| Hydraulic motor | America Sauer or America Eaton | |
| Radiator | Chinese brand | |
| Reducer | Italy PMP or Italy Bonfiglioli or Germany ZF | |
| Water Tank | Volume(L) | 400 |
| Supply system | Air-pressure | |
| Description | Provide water to concrete during transportation and to cool down the hydraulic system. With wash-hand device. |
