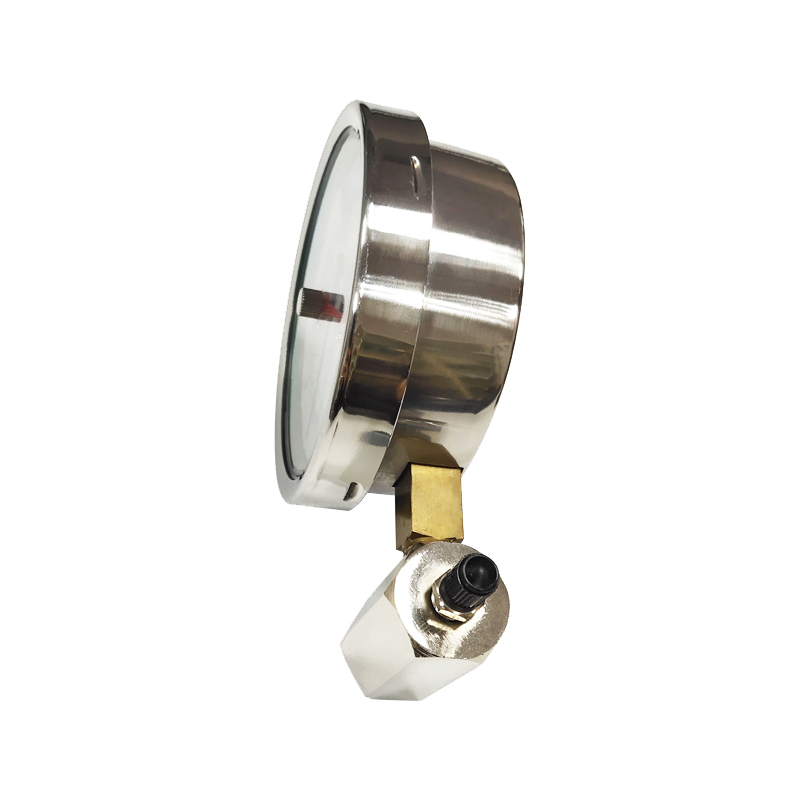

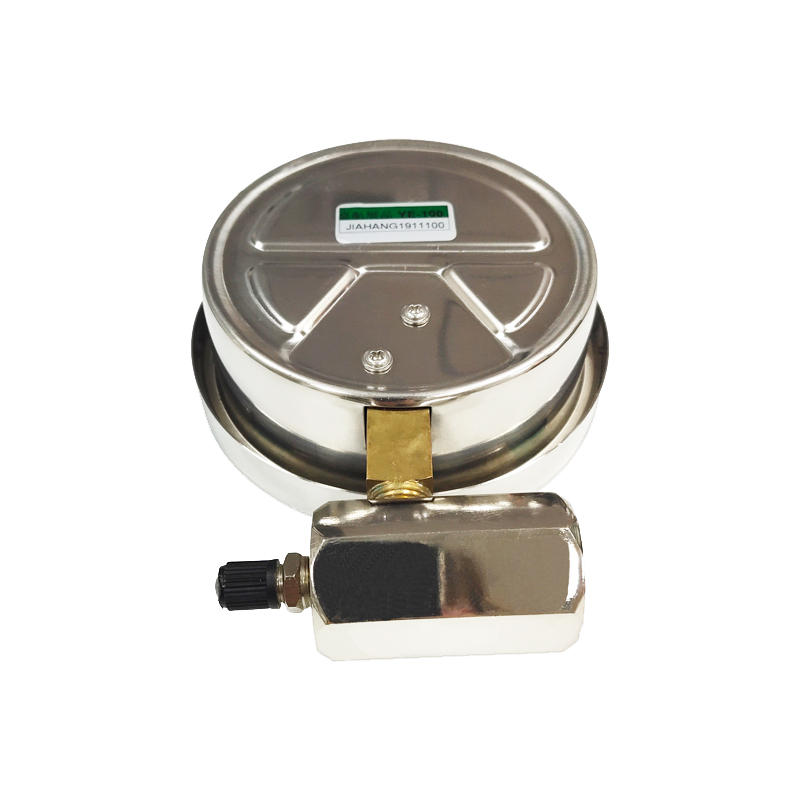

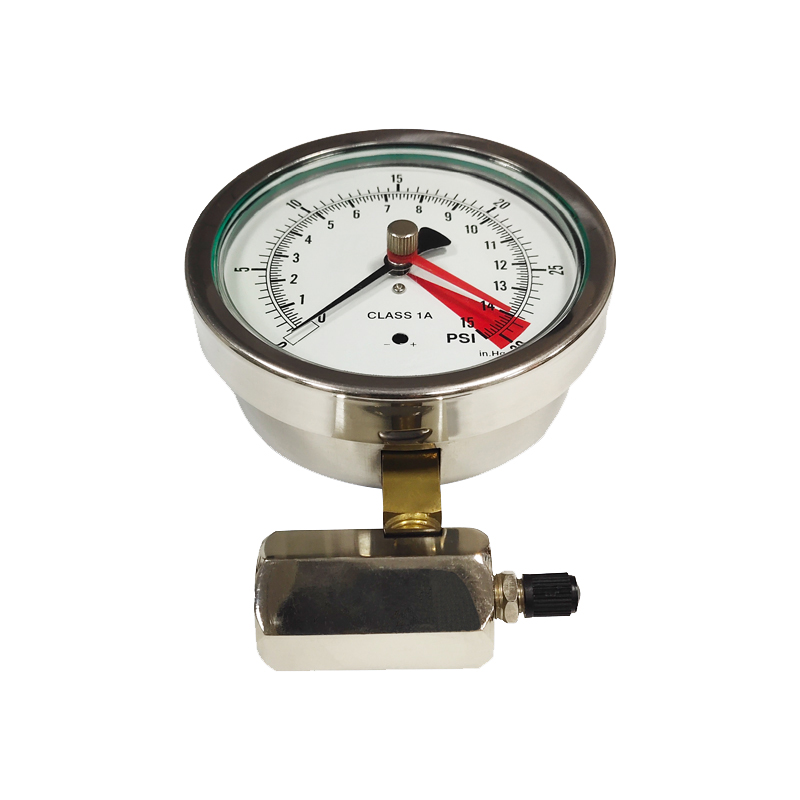

Diaphragm Capsule Pressure Gauge-Overvoltage protection type

Model : YYG-100;

Size : ∅100mm;

Displacement : 1.1-1 .4mm;

Accuracy Class(%): 1;1.6;2.5

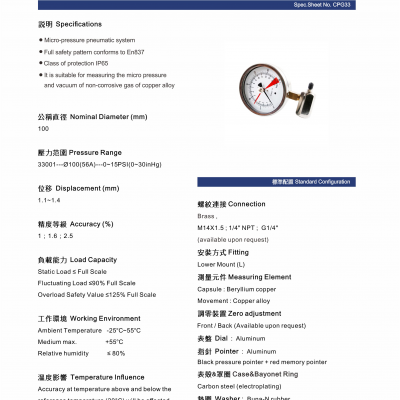

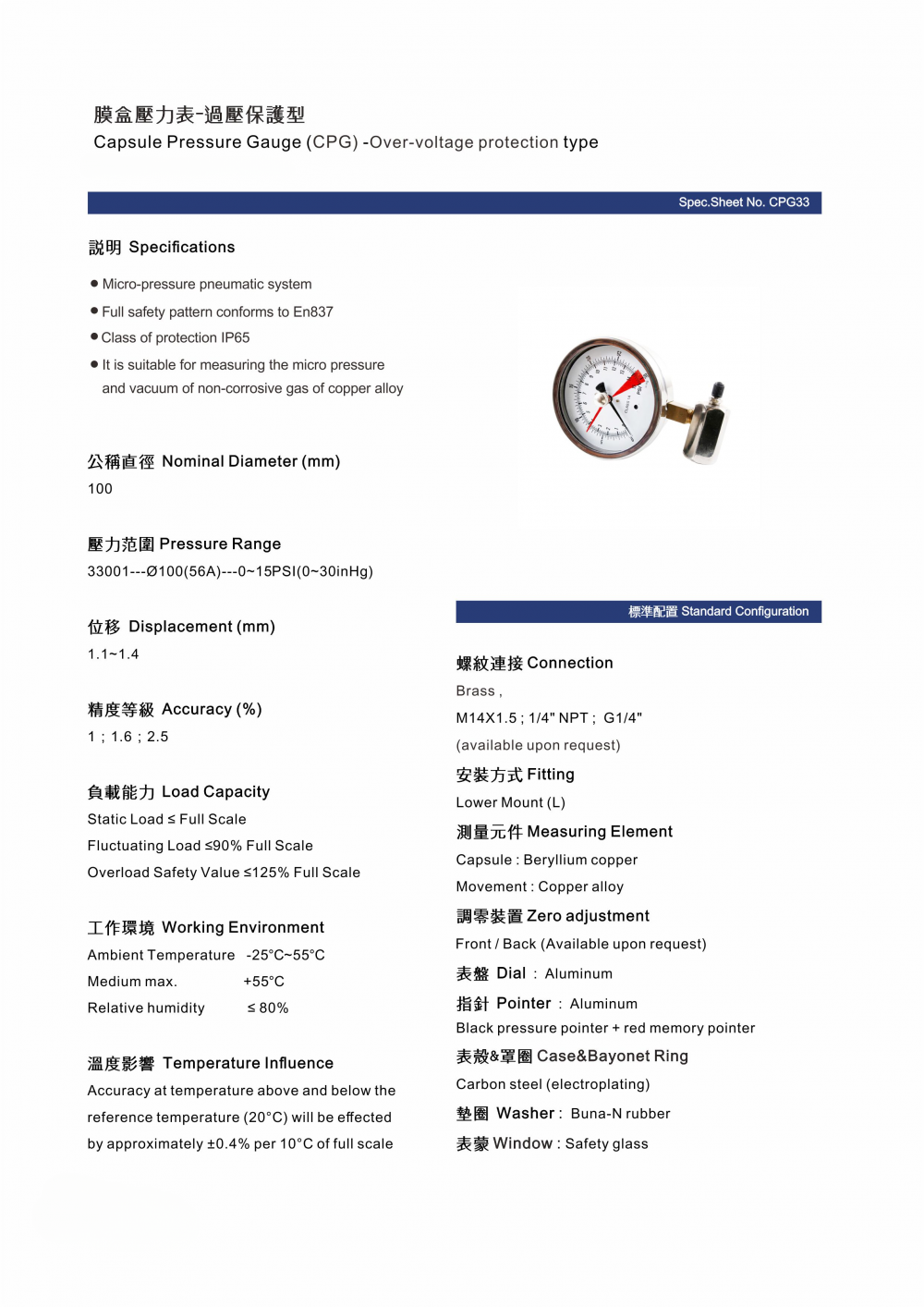

Capsule Pressure Gauge(CPG)-Over-voltage protection type

Model:YYG-100

Specifications

Micro-pressure pneumatic system

Full safety pattern conforms to En837

Class of protection lP65

lt is suitable for measuring the micro pressure

and vacuum of non-corrosive gas of copper alloy

Nominal Diameter(mm):100

Pressure Range:33001---8100(56A)---0~15PS1(0~30inHg)

 Displacement(mm):1.1~1.4

Accuracy(%):1;1.6;2.5

 Load Capacity

Static Load ≤ Full Scale

Fluctuating Load s90% Full Scale

Overload Safety Value ≤125% Full Scale

Working Environment

AmbientTemperature -25°C~55°C

Medium max.:+55°C

Relative humidity≤80%

 Standard Configuration

 Connection

Brass ,

M14X1.5; 1/4"NPT; G1/4"

(available upon request)

 Fitting

Lower Mount(L)

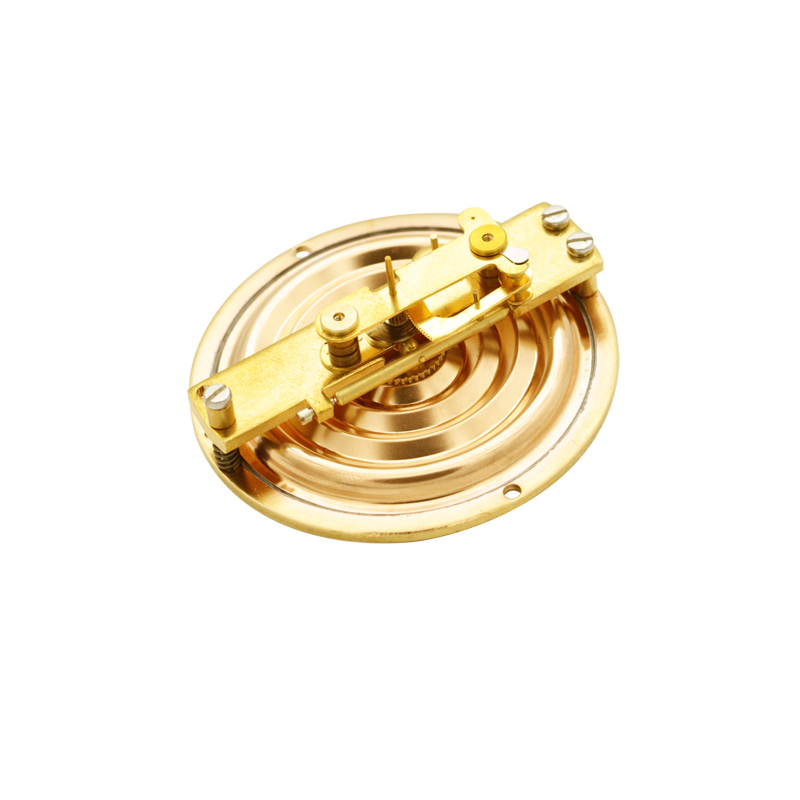

 Measuring Element

Capsule :Beryllium copper

Movement :Copper alloy

 Zero adjustment

Front/Back(Available upon request)

Dial :Aluminum

Pointer :Aluminum

Black pressure pointer + red memory pointer

TemperatureInfluence

Accuracy at temperature above and below the

reference temperature(20°C) will be effectedby approximately +0.4% per 10'C of full scale

 Case&Bayonet Ring

Carbon steel (electroplating)

Washer:Buna-Nrubber

Window:Safety glass
