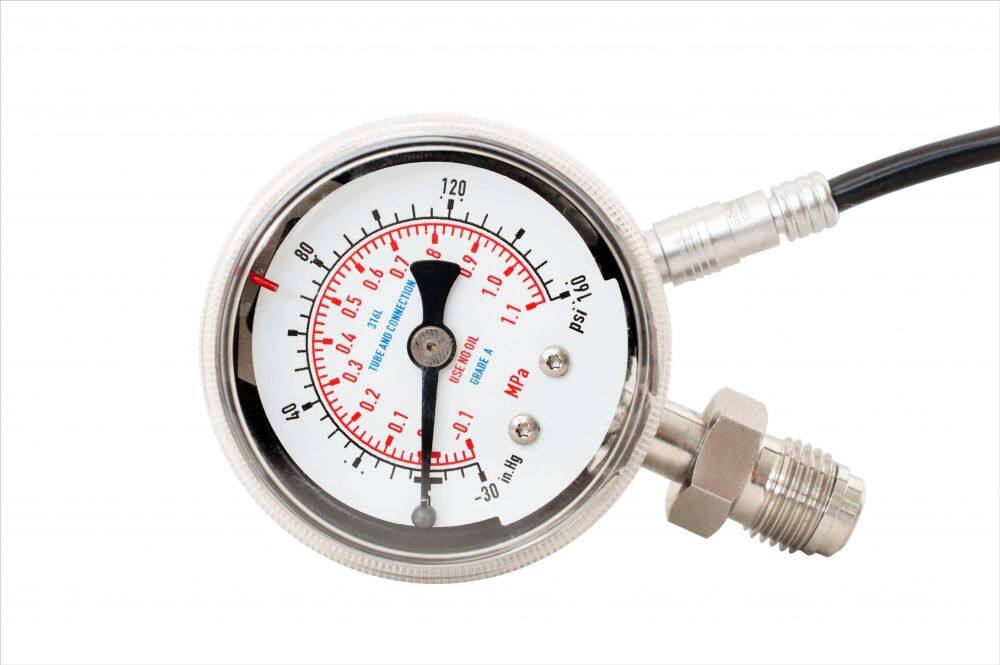

50MM radial EP high purity UHP electrical contact pressure gauge 2.5FS
- 999 Piece / Pieces per Month
You May Like
-
60MM radial all-steel grade 2.5 PFA ultra-high purity pressure gauge
-
0~10Kpa 2.5-level precision 63MM radial all-steel micro-pressure capsule meter gauge 1.6FS
-
semi-steel liquid-filled shock-resistant pressure gauge
-
63MM radial stainless steel 1.5 inch chuck sanitary pressure gauge
-
63MM back connection sterilizer all-steel medical pressure gauge
-
98MM radial stainless steel 1.5 inch chuck sanitary pressure gauge 1.6FS
Product Details
| Brand Name | eagle eye instrument |
Product Description
50MM radial EP high purity UHP electrical contact pressure gauge 2.5FS full range
Radial all stainless steel clean electric contact pressure gauge
Product model :YXC-50H
Instrument accuracy :2/1/2
Shell material :304 stainless steel
Connector material :316L stainless steel EP grade
Dial diameter :50mm
IP Class :IP54
Overpressure capacity :125% full scale can return to zero
Ambient temperature :-40℃~+80°C
EP-A high purity UHP electrical contact pressure gauge
The surface finish of the joint part is less than or equal to 0.25uM, the internal surface finish of the C-tube is less than or equal to 0.4uM, the 316L material EP-S grade,
The surface finish of the joint part is less than or equal to 0.25uM, the internal surface finish of the C-tube is less than or equal to 0.25uM, 316L material EP-SV grade,
The surface finish of the joint part is less than or equal to 0.25uM, the internal surface finish of the C-tube is less than or equal to 0.25uM, VIM-VAR material,
