SF6 Gas density relay Magnetically assisted electrical contact pointer relay SF6
- 8888 Piece / Pieces per Month
- Intelligent pressure transmitter 2088 electronic digital display high temperature resistant pressure transmitter High-precision hammer-type pressure sensor
- Standard pressure transmitter digital display 4-20mA Water pressure pneumatic hydraulic oil pressure steam pressure transmitter, Diffused silicon digital pressure transmitter
- High purity pressure gauge(HPG,H- pressure)-VCR1/4" Female/Male Face Seal Swivel/ BA grade
- Capsule Pressure Gauge(CPG)-Over-voltage protection type Capsule Pressure Gauge made in China
- Differential Pressure Gauge(DPG)-Magnetic piston type,Micro-pressure pneumatic system Full safety pattern conforms to En837
- Fire Fighting gauge,Special Pressure Gauges For Fire Fighting
Product Description

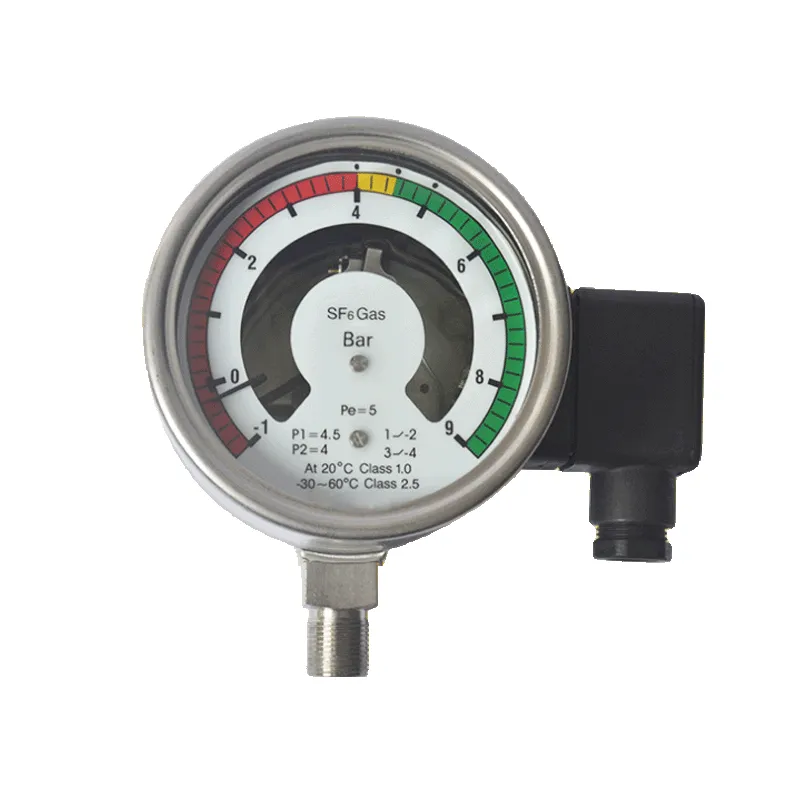

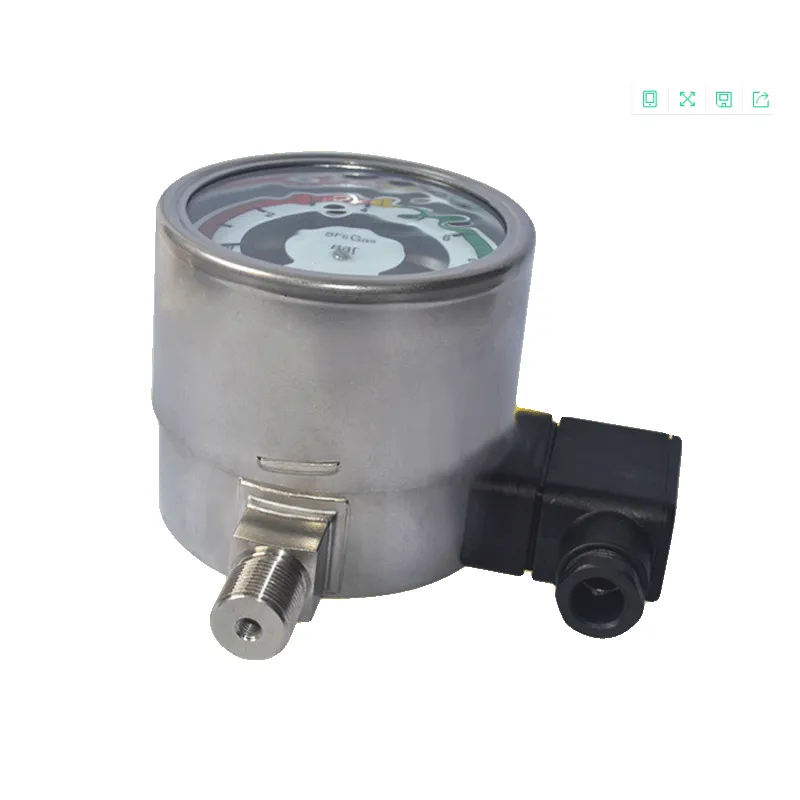

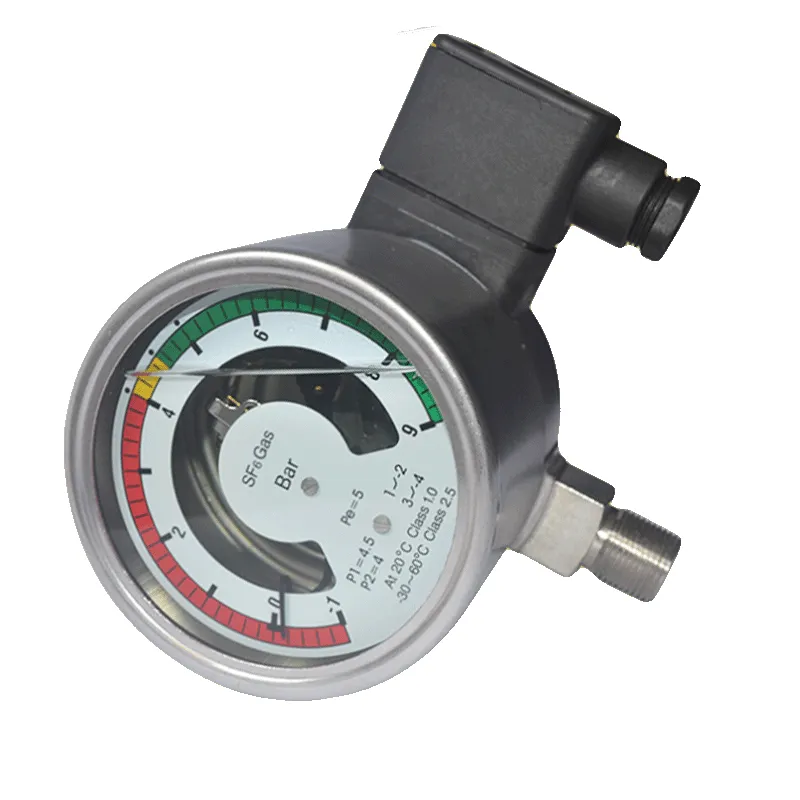

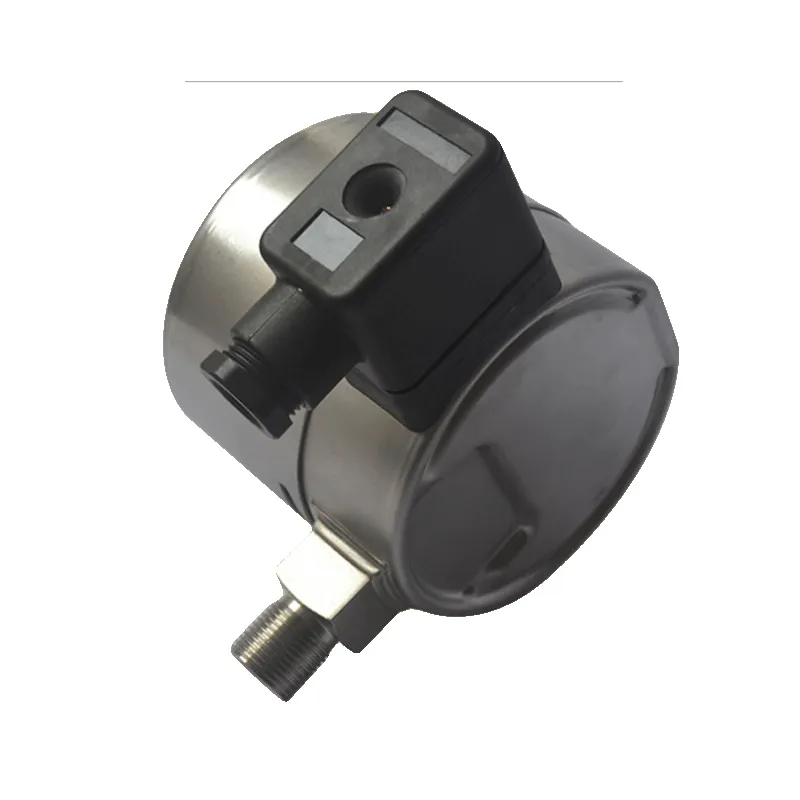

SF6 Gas density relay Magnetically assisted electrical contact pointer relay SF6
Diameter of watch circle :100
Calibration pressure PE: subject to customer specifications
Accuracy Specifications:
■ ± 1% at +20 °C ambient temperature
■-20... ±2.5 % at +60 °C ambient temperature, the calibration pressure is consistent with the reference isovolume line (Reference Figure KALI-Chemie AG, Hanover, D? ring, Ph.D., 1979)
Scale range:
Range 0.16... 2.5 MPa vacuum and overpressure range (20 °C ambient temperature and gas phase)
Allowable ambient temperature:
Working: -20 +60 °C (-4 +140 °F), gas phase
Storage: -50 +60 °C (-58 +140 °F)
Process connection:
G ? B (according to EN 837), radial direct mounting stainless steel, wrench opposite side width 22 mm
Other connection methods or locations can be provided according to customer requirements.
Pressure element:
Stainless steel, welded
Air tightness: leakage rate ≤ 1? 10-9 kPa ? l / s
Test method: helium mass spectrometry test
Movement: stainless steel, bimetallic sheet (temperature compensation)
Dial: Aluminum
Shell:
Stainless steel, gas filled type
Stainless steel, liquid filling type
Air tightness: leakage rate ≤ 1? 10-6 kPa ? l / s
Table glass:
Laminated safety glass
Transparent crack resistant plastic
Ring of cover:
Bayonet ring, stainless steel, secured by 3 solder joints
Allowable humidity:
≤ 90% r. h. (non-condensing)
Protection level:
IP 65, according to EN 60529 / IEC 529 standard
Weight:
Gas filled type: about 0.8 kg
Liquid filled type: about 1.2 kg
100% high voltage test:
2 kV, 50 Hz, 1s
Switch contact:
Electrical connection
Electrical junction box cable with M20 x 1.5 locking sleeve cross-sectional area 2.5mm2
Number of switch contacts:
1 magnetically assisted electrical contact
2 magnetically assisted electrical contacts
3 magnetically assisted electrical contacts
Switch direction:
Pressure of descent
Pressure of rise
Switch function:
Open at regular intervals
Normally closed
Switching contact (2 more switching points)
Circuit:
Electrical connection (not applicable to conversion contact)
Electrical isolation
Switch accuracy:
Switch point = calibration pressure PE: see accuracy specification
Switching point ≠ calibration pressure PE: Translate to calibration pressure
Switching voltage:
AC 250 V
Switching power
Gas filled type: 30 W / 50 VA, 1 A
Liquid filling type: 20 W / 20 VA, 1 A
Switching point material :80 % Ag / 20 % Ni, gold plated
