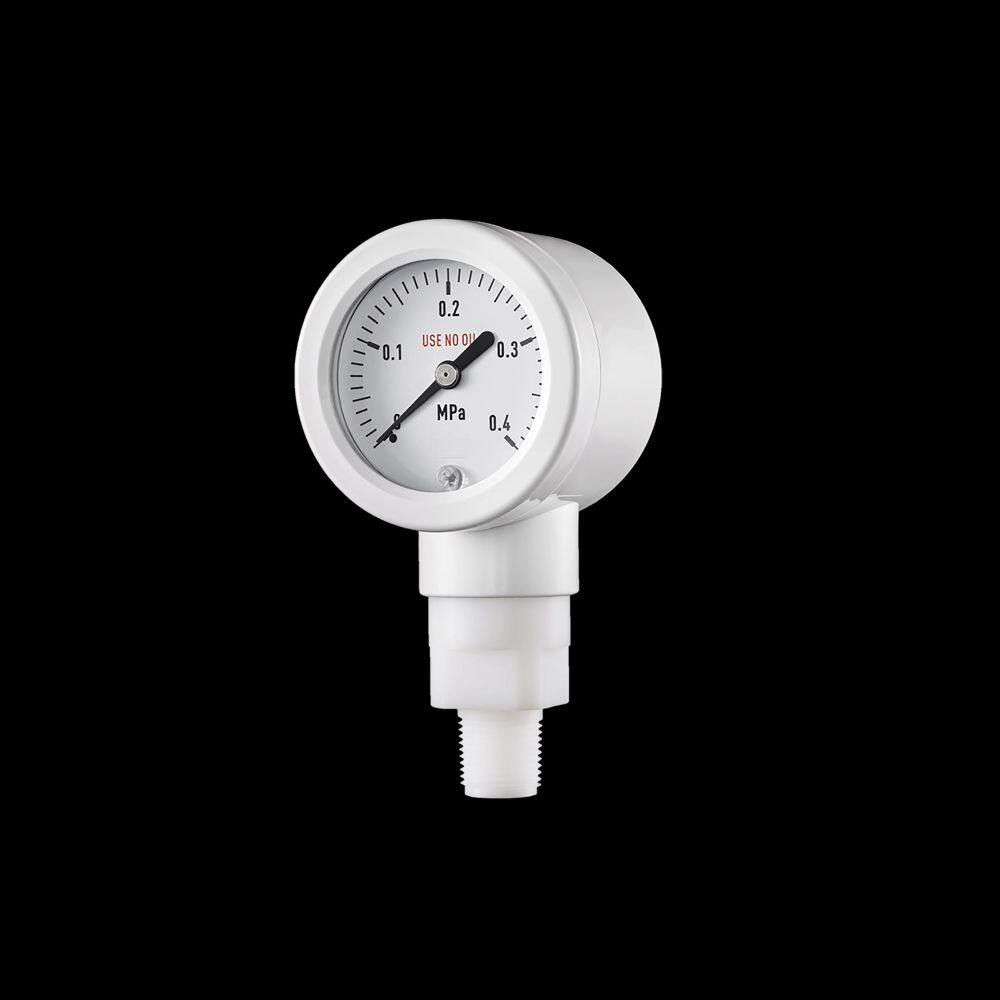

60MM radial all-steel grade 2.5 PFA ultra-high purity pressure gauge
Product parameters: PFA ultra-high purity pressure gauge
Product model: YFJ-60E
Instrument accuracy: (2/1/2)
Shell material: PP material
Connector material: PFA material
Threaded interface: G3/8 R3/8 straight pipe
Dial diameter: 60mm
IP rating: IP54
Helium leak detection:
Cleanliness: EP level
Surface smoothness: Ra≤0.25 um
Ambient temperature: 10℃~30℃
Overpressure capability: can return to zero after 100% full scale
Fluctuating pressure: 67% of full scale
Constant voltage: 75% of full scale
Deoiled PFA ultra-high purity pressure gauge
PFA material clean pressure gauge
EP grade ultra-high purity pressure gauge
UV high definition printed dial clean pressure gauge
PP material glass ultra-high purity pressure gauge
Accuracy level 2/1/2PFA ultra-high purity pressure gauge
The pressure change drives the elastic element and then indicates the pressure value through the precision movement.
PP material shell PFA ultra-high purity pressure gauge
