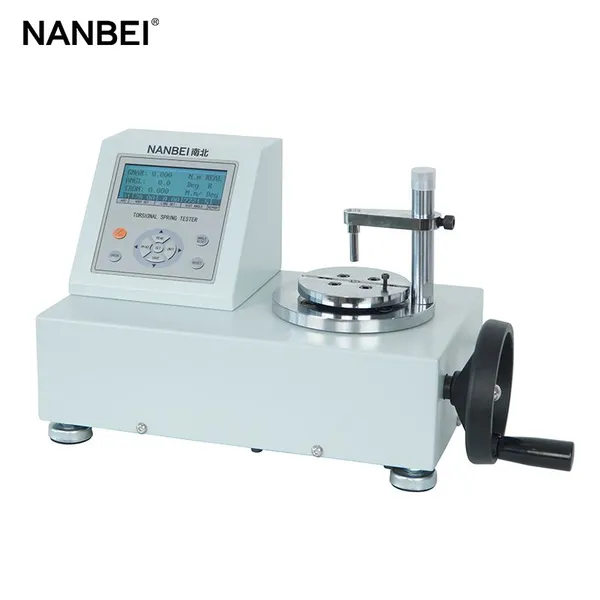

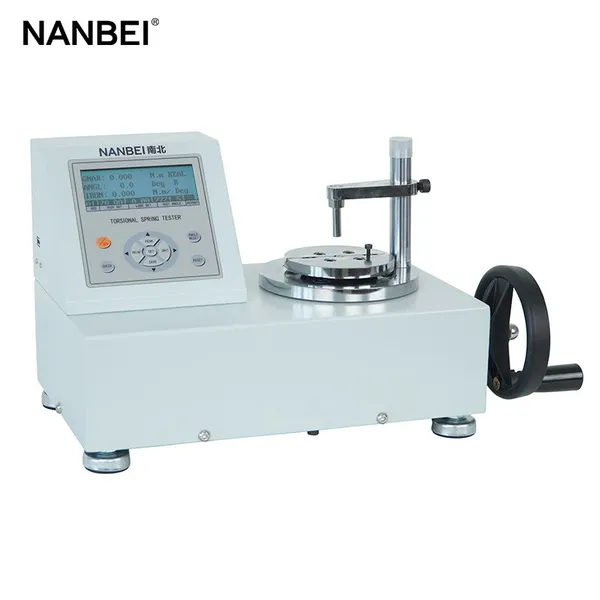

Laboratory Measuring Instrument High Precision Digital Torsion Spring Tester

Laboratory High Precision Digital Torsion Spring Tester

Application and description

ANH series of digital torsion spring testing machine is designed for testing and testing a variety of torsion spring and an intelligent multi-function measuring instruments.

With simple operation, high precision, full function, easy to carry and so on.

Widely used in a variety of electrical, light industry, machinery manufacturing, research institutions and other industries.

Features

1. high precision, high resolution, sampling speed, large screen display.

2.the use of high-precision torque sensor, with torque direction display. High precision rotary encoder,

angle arbitrary measurement

3.can be free to set the upper and lower torque value and the maximum, small rotation angle value,

beyond the set range when the text flicker and buzzer alarm.

4.three parameters display (torque force value, rotation angle, spring stiffness)

5. three units of mutual conversion, to choose from (N · m, kgf · cm, Ib · in).

6.real-time, peak, automatic peak three modes can be free to switch.

7.the use of USB interface and PC communication, synchronization test function can be connected to

computer testing, computer synchronization display test torque and angle torque and time angle

and time curve and the test process detailed measurement parameters of the record, and can save,

Do all kinds of analysis.

8.peak hold, automatic release function, release time free set.

9.large storage capacity, can save 99 sets of test data.

10.no operation automatically shut down function, time can be set freely.

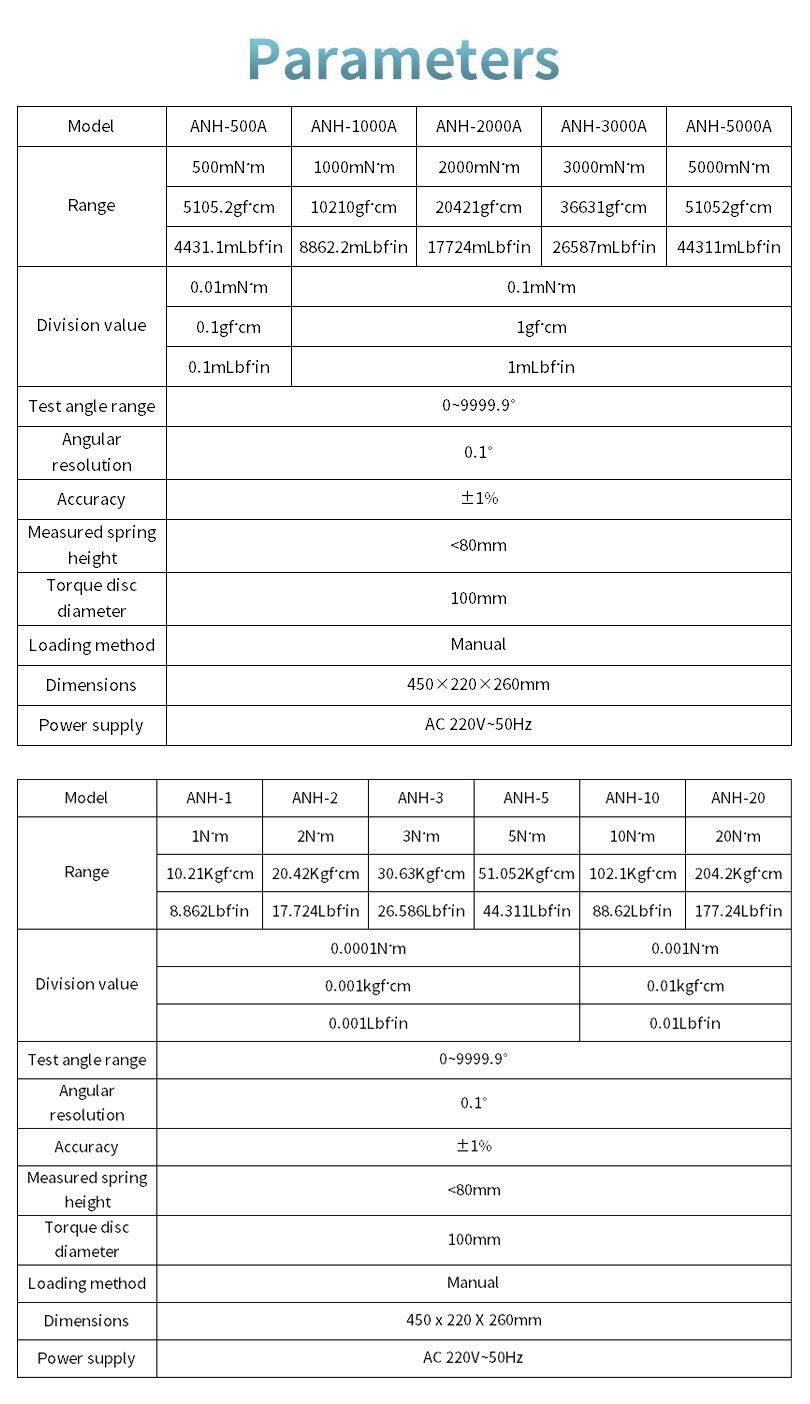

Technical data
