Home > Transportation > Trailer > Truck Trailer > Box Van Trailers for Sale,Van Box Curtain Side Vehicle Truck Semi Trailer for Beverage
Box Van Trailers for Sale,Van Box Curtain Side Vehicle Truck Semi Trailer for Beverage
US$ 10000 - 99999
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
FOCUS
Place of Origin:
China
Model Number:
van trailer 001
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Related Products
-
Buy Used Trailers & Semi-trailers at Low Prices, 3 Axle 30~35m3 Tipping Tipper Dump Semi TrailerUS$ 10000 - 99999MOQ: 1 Unit -
3 Axles 60Tons Side Wall Cargo Semi TrailersUS$ 22222 - 99999MOQ: 1 Unit
-
3 Axles 40Ft Flatbed Container Semi TrailersUS$ 88888 - 99999MOQ: 1 Unit
-
3 Axles 80Tons Low Bed Semi TrailersUS$ 88888 - 99999MOQ: 1 Unit
-
4x2 FAW Car Carrirer Truck for 5 Sets CarsUS$ 88888 - 99999MOQ: 1 Unit
Brand Name
FOCUS
Place of Origin
China
Model Number
van trailer 001
Material
Aluminum / Alloy
Size
12000*2500*4000
Certification
CE
Type
Semi-Trailer
OEM No.
010
Max Payload
50T
Product Description

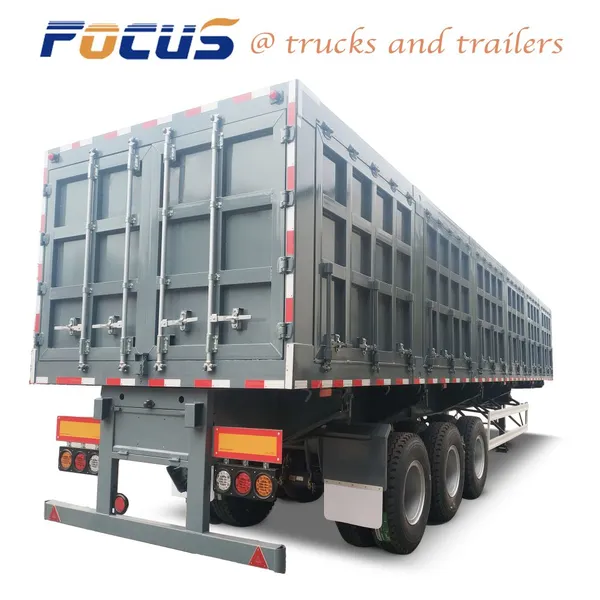

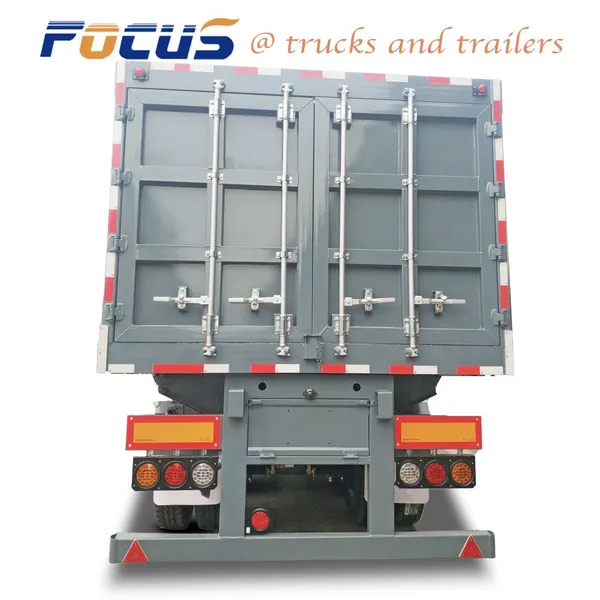

40Tons Van box curtain side vehicle truck semi trailer for beverage Pallets General Haulage
| PARAMETER | ||
| OVERALL DIMENSION (mm) |
Length | 12000 |
| Width | 2500 | |
| Height | 4000(box height 2400mm) | |
| WEIGTH (kg) |
Kerb. Weight | 8500 |
| Max Payload | 40000 | |
| Total Mass | 48500 | |
| WHEELBASE (mm) | 6830+1310+1310 | |
| MAIN FRAME | ||
| DESCRIPTION | Heavy duty and extra durability designed high tensile steel Q345B, welded by automatic Submerged-Arc processes 500mm height Beam | |
| TOP FLANGE (mm) | 14 mm | |
| MIDDLE FLANGE (mm) | 8mm | |
| BOTTOM FLANGE (mm) | 16 mm | |
| PLATFORM | ||
| STRUCTURE (mm) |
Front & Rear | 2mm(Detachable type) |
| Right & Left | PVC cover (750g/m2) | |
| Floor | 3mm, checked plate. | |
| SUSPENSION | ||
| Type | One Couple of Tri-axle Mechanical Suspension | |
| DESCRIPTION | Six Sets of 10 pieces 13x90mm leaf spring | |
| AXLE | ||
| MAKE & BRAND | Fuwa axle | |
| WEIGHT RATING & TOTAL AXLE | 13000kg x 3pcs | |
| KINGPIN | ||
| TYPE | One unit of 3.5'' SAE standard welded Kingpin | |
| LANDING GEAR | ||
| TYPE | 28T, 2 speed, manual operating, heavy duty landing gear | |
| BRAKE SYSTEM | ||
| TYPE | A system with emergency brake and parking brake; Dual line- air brake,piggyback spring on all axles;Two units of WABCO RE 4 relay valve(or equivalent); Four units of T30/30 spring brake chamber; Two units of T30 brake chamber, two units of 40L air tanks; two units of standard copper air-connector. | |
| TIRE & RIM | ||
| RIM SIZE X NUMBERS | 8.25 -20 x 13pcs | |
| TYRE TYPE & SIZE X NUMBERS | 11.00R20 x 13pcs (including one spare tyre) | |
| SPARE WHEEL CARRIER | One set of spare wheel carrier | |
