Home > Transportation > Trailer > Other Trailers > Buy Used Trailers & Semi-trailers at Low Prices, 3 Axle 30~35m3 Tipping Tipper Dump Semi Trailer

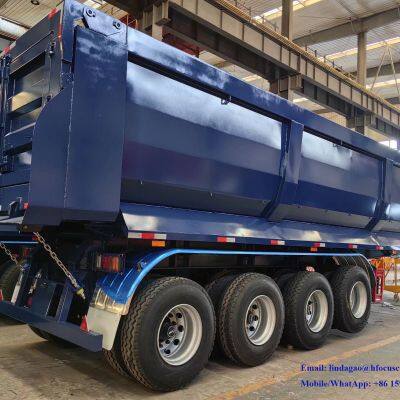

Buy Used Trailers & Semi-trailers at Low Prices, 3 Axle 30~35m3 Tipping Tipper Dump Semi Trailer
US$ 10000 - 99999
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
FOCUS
Place of Origin:
China
Model Number:
FOCUS Dump Semi Trailer 001
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Related Products
-
3 Axles 60Tons Side Wall Cargo Semi TrailersUS$ 22222 - 99999MOQ: 1 Unit -
3 Axles 40Ft Flatbed Container Semi TrailersUS$ 88888 - 99999MOQ: 1 Unit
-
3 Axles 80Tons Low Bed Semi TrailersUS$ 88888 - 99999MOQ: 1 Unit
-
4x2 FAW Car Carrirer Truck for 5 Sets CarsUS$ 88888 - 99999MOQ: 1 Unit
-
4x2 FAW Car Carrirer Truck for 5 Sets CarsUS$ 88888 - 99999MOQ: 1 Unit
Brand Name
FOCUS
Place of Origin
China
Model Number
FOCUS Dump Semi Trailer 001
Size
30cbm 60t
OEM No.
FOCUS 004
Max Payload
30cbm 60t
Best Price Top Quality 3 Axle 30~35m3 Tipping Tipper Dump Semi Trailer
| Item | FCS9400ZZXHJD | |
| Volume | According to the desgin-9200mm*2350mm*1700mm | |
| Overall length | 10120 | |
| Overall width | 2550mm | |
| Specification | ||
| Item | Qty. | Notice |
| Chassis | Heavy duty and extra durability designed I beam;Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.Top Flange 14mm,width 146mm;Middle Flange 8mm;Bottom Flange 16mm,width 146mm |
|
| Axle | 3 | FUWA-16T |
| Tyre | 12 | Domestic12.00R20 |
| Rim | 12 | Domestic8.5-20 |
| Leaf spring | 6 | 100 width*10pieces*16thickness |
| Suspention | 3 | Standard type |
| Braking system | 2 line air braking system with air tank ,emergency relay valve WABCO,braking chambers and mechanical slack adjusters.Domestic ABS 4S/2M | |
|
Electrical system |
24 volt electrical system.7 pin electrical connector.Parking .Stop,reverse,number plate and indicator lights.Rear lights conform to European standard,rear front and side reflectors | |
| Shotblasting and paint | Chassis is comletely shotblasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.Total 80-100 microns.Waxed | |
| Landing gear | 1 | 28T double operation Domestic |
| Kingpin | 1 | 90# welded type |
| Cylinder | 1 | 5TG-F120*7500 |
| Tool box | 1 | Standard |
| Body sheet | Side 6mm ,floor 8mm.Carbon steel | |
| Board | Standard type | |
