2 Axle Low Bed Dollytrailer With Turntable

2 Axle Low Bed Dollytrailer With Turntable photo-1

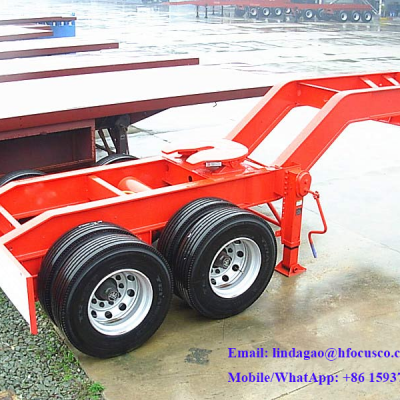

2 Axle Low Bed Dollytrailer With Turntable photo-2
2 Axle Low Bed Dollytrailer With Turntable photo-3
2 Axle Low Bed Dollytrailer With Turntable photo-4
2 Axle Low Bed Dollytrailer With Turntable photo-5
US$ 88888 - 99998 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
FOCUS
Place of Origin:
China
Model Number:
FOCUS -Dolly 01
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days
Brand Name FOCUS
Place of Origin China
Model Number FOCUS -Dolly 01
Material Steel
Size 6800mm*2480mm
Certification DOT
Type Full Trailer
OEM No. FOCUS 029
Max Payload 45000kgs

Dolly trailer is also known as "full trailer, flatbed truck, flatbed trailer and trailer". Simply, a trailer is linked to in front of a truck. It is very common in the long haul to hang a car behind a truck (or more than one). It is a full trailer.

Generally, it adopts inflatable solid tires, with low surface height and large loading capacity. There is no risk of bursts or blowout. Safe, simple and durable. It has no power and needs towing trucks or forklifts for towing. Usually, one or more flatbed trucks and a forklift or tractors form a vehicle to carry out the cargo plane transportation or large equipment handling. It is widely used in airports, ports, railway stations, factories and large warehouses. The efficiency of the transfer of goods is greatly improved. Reduce the cost of forklift and manpower


The advantage of 2Axles Low Bed Dolly trailer With Turntable1. High quality, high strength, light-weight, convenient maintenance;
2. Easy control  simple structure and flexible turning;
3. High transport efficiency, low fuel consumption
4. Low cost of manufacturing
5.Removable  hanger can be used for storage
The specification of 2Axles Low Bed Dolly trailer With Turntable

Tare Weight

7700kg

Overall Length

6800mm

Overall Width

2480mm

Payload

45000kg

I Beam & Chassis

Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm.

Axle

2 axles

Fuwa 13 ton

Suspension

Heavy duty mechanical suspension

Floor

3mm checker plate

Turntable

15T turntable

Bar eye ring

50mm one set

Leaf Spring

8 piece Leaf spring

King Pin

JOST brand 2” Bolt-in King Pin

Landing Gear

JOST brand Two-speed, manual operating, heavy duty landing gear

Wheel Rim

8.25-22.5 wheel rim

Tire

11R22.5 tire with one spare tire, 13 pieces

Twist Lock

4 nos. of ISO twist lock for 1x20ft container

Spare Tire

One set of spare tire including a carrier

Braking System

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks

Painting

Complete Chassis sandblasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint

Accessories

One standard toolbox
