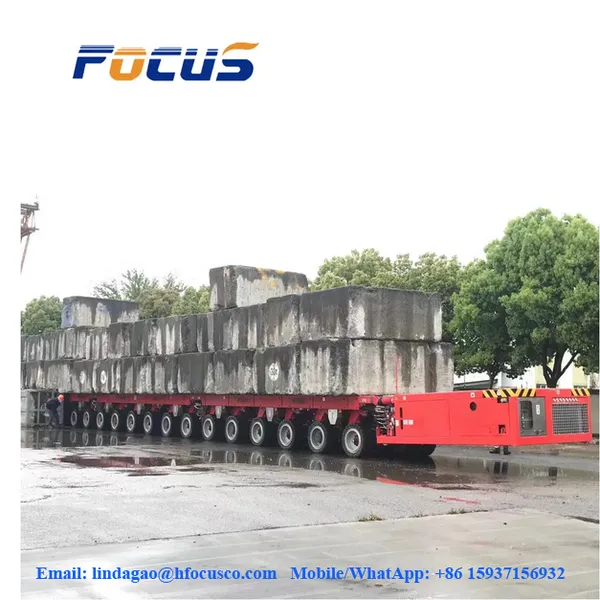

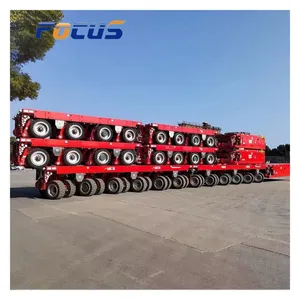

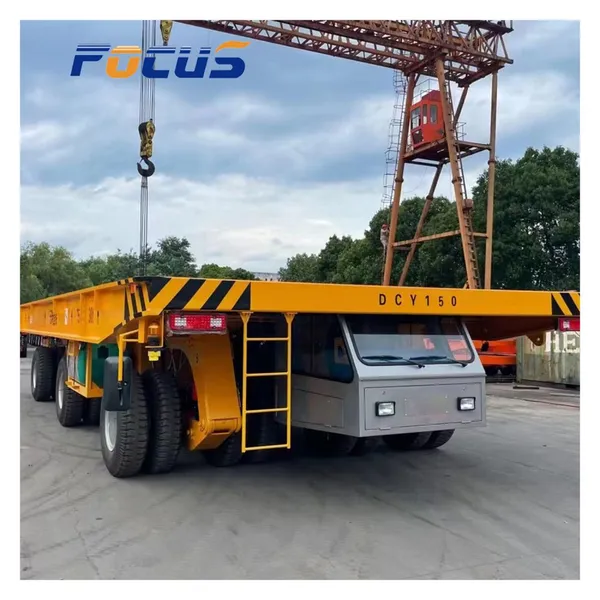

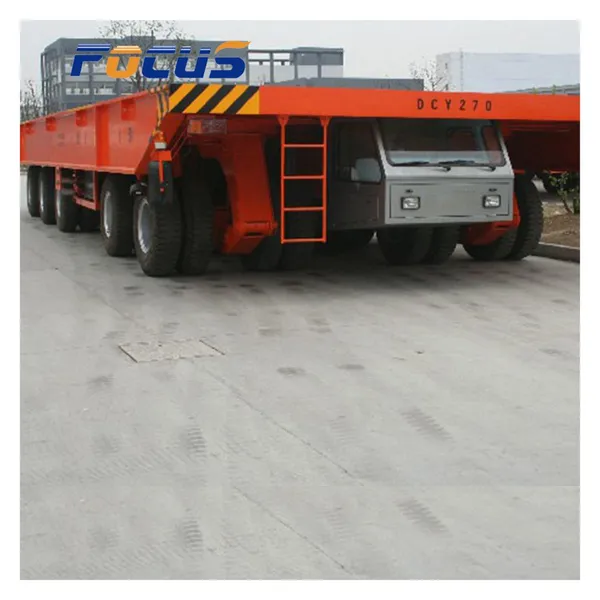

Heavy 200 Tons Self-propelled Hydraulic Modular Trailer Semi Truck Trailer Hydraulic Power Flatbed transporter for Sale
1.Design method: adopt the international advanced three-dimensional virtual design, and complete the virtual simulation operation test of the whole machine. Creative design for your own special transportation program.High tensile steel provides the strongest performance of semi trailer. Automatic submerged arc welding and straightening machines make best main beam.One coat blasting plus two coats polyester painting.2.Production organization mode: It has its own processing, testing and assembly bases for key technologies, institutions and structures, and at the same time adopts a socialized collaborative method for production. Standard and Brands of semi trailer parts can be chosen according to different requests.Necessary accessories offered.3.Assembly capacity: It has a high-level assembly workshop of more than 35,000 square meters, which provides a good basic condition for the production, assembly and debugging of equipment. Strict processing, assembly and testing processes have been established to ensure the assembly quality of the products.4.Quality control system: In the process of product development, quality control is carried out in strict accordance with the requirements of the ISO9001 quality assurance system, including design control, production control (including outsourcing and subcontractor evaluation and quality control), sales and service control . For special structures and institutions, a special quality control team is established, and special processes and process evaluation standards are formulated at the same time to ensure the final assembly quality of products.
| Overall Dimensions | 17900 x 2990 x 1080 ±290 mm(optional depends on capacity needed) | ||||
| Main technical parameters of modular trailer | |||||
| Brand name | Aotong Brand | ||||
| Rated load capacity | 20000kg/axis x 8 axis=160,000kgs | ||||
| Max loading capacity | 30000kg/axis x 8 axis=240,000kgs | ||||
| Net weight of the trailer | 45,000kgs | ||||
| Max trailer speed | 30km/h (full load) | ||||
| The distance of axle | 1550mm | ||||
| The distance of wheel | 740/1820mm | ||||
| Tyre | 64 units of 7.50R15; Triangle brand | ||||
| Wheel Rim | 64 units of 6.5-15; | ||||
| Axle | 16 units of hydraulic steering axle; Julin brand | ||||
| suspension | Single point hydraulic suspension with Julin supports | ||||
| The thickness of floor | 50-60mm | ||||
| Main beam | Box type beam | ||||
| Braking system | Dual-pipes braking system, equipped with pneumatic type, parking brake system; with double air chambers | ||||
| Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness); German standard | ||||
| Main compose of modular trailer | |||||
| Width and height of joint beam | 2990mm, 1080 ±290mm | ||||
| Unit trailer | 4 axis + 4 axis unit trailer | ||||
| Tandem steering support | End beam, triangle support | ||||
| Other parts | Tandem joint parts; tractor frame | ||||
| Power unit | Diesel engines station for hydraulic gooseneck | ||||
| Main technical parameter of hydraulic gooseneck | |||||
| Payload | 30000kgs | ||||
| Behind gyration radius | 2550mm | ||||
| Height of tractor turnable | 1450mm | ||||
| Steering facility | Steering power takeoff | ||||
| Max rotation angle of tractor (relative gooseneck) | ±55° | ||||
| Kingpin | 90mm | ||||
