Home > Transportation > Trailer > Truck Trailer > Side Curtain Trailer | Curtain Side Trailer,Commercial Vehicle Curtain Sider Trailer Curtainsider Semi-Trailer for Pellets Goods Transport
Side Curtain Trailer | Curtain Side Trailer,Commercial Vehicle Curtain Sider Trailer Curtainsider Semi-Trailer for Pellets Goods Transport
US$ 10000 - 99999
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
FOCUS
Place of Origin:
China
Model Number:
FOCUS TRAILER 005
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Related Products
-
42000 Liters Truck Aluminum Fuel Tanks Trailer,Fuwa Axles Spring/Air Bag SuspensionUS$ 11000 - 99999MOQ: 1 Unit -
Terminal Port Container Semi Trailer, Bomb Cart Semi-Trailer/Terminal Trailer/ Skeleton TrailerUS$ 10000 - 99999MOQ: 1 Unit
-
20FT/40FT/45FT/60FT Roll Mafi Trailer, Roll Trailer for Heavy Static Goods and Materials in The Maritime Shipping IndustryUS$ 10000 - 99999MOQ: 1 Unit
-
Container Chassis & Trailers,30t-40t 2/3 Axles Focus 20FT Skeletal Container Trailer ChassisUS$ 10000 - 99999MOQ: 1 Unit
-
Box Van Trailers for Sale,Van Box Curtain Side Vehicle Truck Semi Trailer for BeverageUS$ 10000 - 99999MOQ: 1 Unit
Brand Name
FOCUS
Place of Origin
China
Model Number
FOCUS TRAILER 005
Material
Aluminum / Alloy
Size
12000*2500*4000
Certification
DOT
Type
Semi-Trailer
OEM No.
FOCUS TRAILER 005
Max Payload
40t

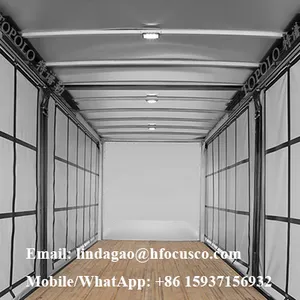

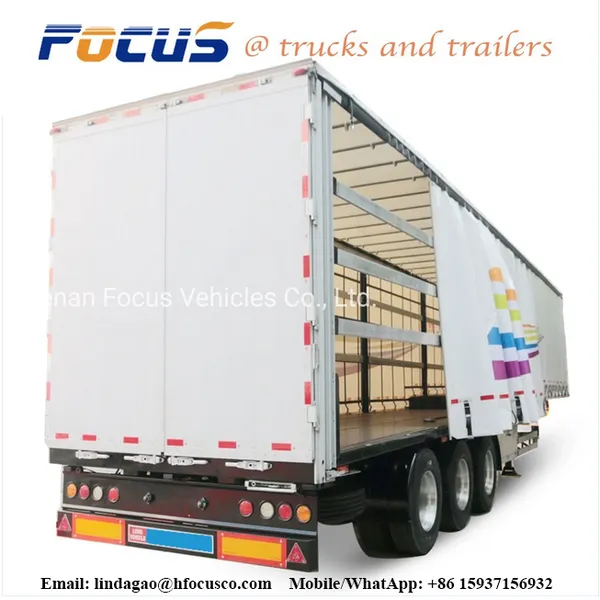

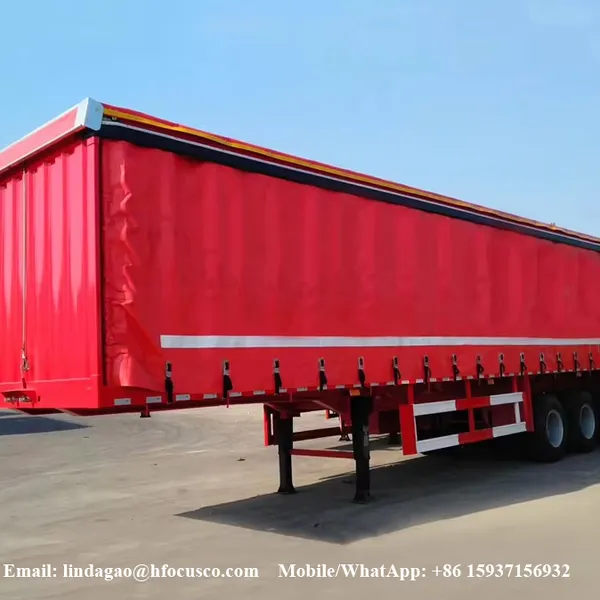

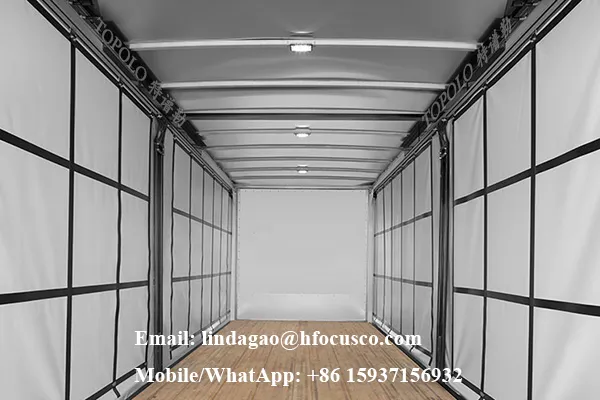

40 foot tri-axle commercial vehicle Curtain Sider Trailer curtainsider semi-trailer for pellets goods transport
| PARAMETER | ||
| OVERALL DIMENSION (mm) |
Length | 12000 |
| Width | 2500 | |
| Height | 4000(box height 2400mm) | |
| WEIGTH (kg) |
Kerb. Weight | 8500 |
| Max Payload | 40000 | |
| Total Mass | 48500 | |
| WHEELBASE (mm) | 6830+1310+1310 | |
| MAIN FRAME | ||
| DESCRIPTION | Heavy duty and extra durability designed high tensile steel Q345B, welded by automatic Submerged-Arc processes 500mm height Beam | |
| TOP FLANGE (mm) | 14 mm | |
| MIDDLE FLANGE (mm) | 8mm | |
| BOTTOM FLANGE (mm) | 16 mm | |
| PLATFORM | ||
| STRUCTURE (mm) |
Front & Rear | 2mm(Detachable type) |
| Right & Left | PVC cover (750g/m2) | |
| Floor | 3mm, checked plate. | |
| SUSPENSION | ||
| Type | One Couple of Tri-axle Mechanical Suspension | |
| DESCRIPTION | Six Sets of 10 pieces 13x90mm leaf spring | |
| AXLE | ||
| MAKE & BRAND | Fuwa axle | |
| WEIGHT RATING & TOTAL AXLE | 13000kg x 3pcs | |
| KINGPIN | ||
| TYPE | One unit of 3.5'' SAE standard welded Kingpin | |
| LANDING GEAR | ||
| TYPE | 28T, 2 speed, manual operating, heavy duty landing gear | |
| BRAKE SYSTEM | ||
| TYPE | A system with emergency brake and parking brake; Dual line- air brake,piggyback spring on all axles;Two units of WABCO RE 4 relay valve(or equivalent); Four units of T30/30 spring brake chamber; Two units of T30 brake chamber, two units of 40L air tanks; two units of standard copper air-connector. | |
| TIRE & RIM | ||
| RIM SIZE X NUMBERS | 8.25 -20 x 13pcs | |
| TYRE TYPE & SIZE X NUMBERS | 11.00R20 x 13pcs (including one spare tyre) | |
| SPARE WHEEL CARRIER | One set of spare wheel carrier | |
| ELECTRICAL SYSTEM | ||
| VOLTAGE | 24 volt standard 7 pin plug SAE / ISO1185 socket, support from tractor | |
| ELECTRICAL APPLIANCES | Tail lamp with turning signal, brake light & reflector, Side lamp etc. One set of 6-core standard Cable | |
| ACCESSORIES | ||
| STANDARD | One tooling box with a set of standard trailer tool | |
| Option 1 | Front wall, Rear door, Top roof are detachable type, which should be assembly in destination country by customer. | |
| Option 2 | 40ft container transport is available if the length change to 11.5 meter, which could save large sea freight. | |
