Home > Instruments & Meters > Meter for Liquid & Gas > Pressure Gauge > 100MM 100Kpa 5 Times Overpressure， Absolute Pressure Pressure Gauge， 1.6F.S.
100MM 100Kpa 5 Times Overpressure， Absolute Pressure Pressure Gauge， 1.6F.S.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2023
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electrical Contact 4~20mA, 25Kpa Diaphragm Point Contact Differential Pressure Pressure Gauge 1.6 Accuracy 100mm DialNegotiableMOQ: 1 Piece -
100Kpa Absolute Pressure Gauge 1.6 Accuracy 150mm,All Stainless Steel With Stable AccuracyNegotiableMOQ: 1 Piece
-
250MM 1.6Mpa 0.1FS Precision Precision Pressure GaugeNegotiableMOQ: 1 Piece
-
High Pressure Pressure GaugeNegotiableMOQ: 1 Piece
-
63MM Axial EP Grade Ultra-high Purity Explosion-proof Electric Contact Pressure GaugeNegotiableMOQ: 1 Piece

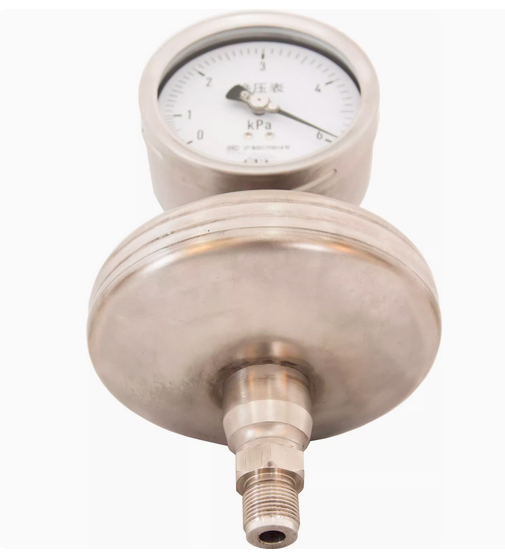

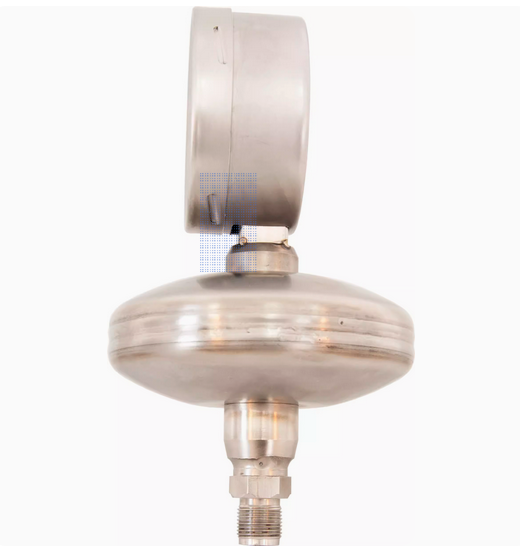

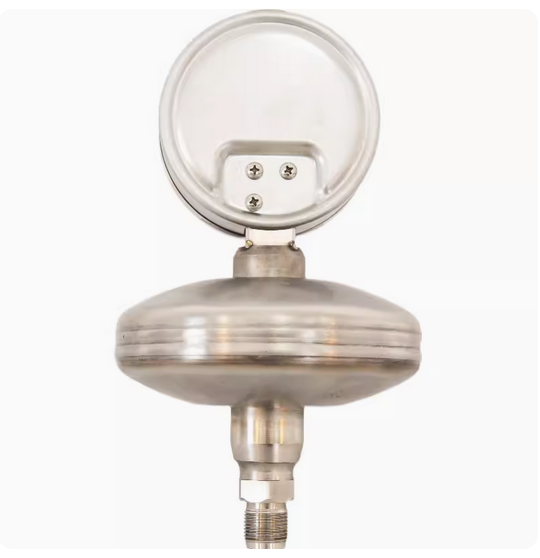

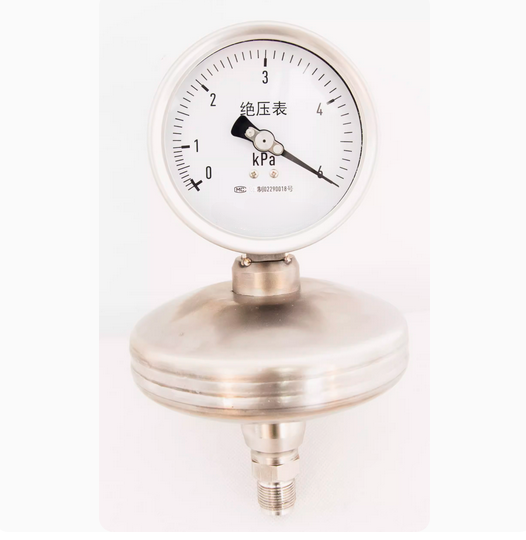

100MM 100Kpa 5 times overpressure， absolute pressure pressure gauge， 1.6F.S.
Absolute pressure gauge product parameters
Product model: absolute pressure pressure gauge
Instrument accuracy: 1.6F.S.
Shell material: stainless steel 304/316L
Connector material: stainless steel 304/316L
Dial diameter: 100mm
IP rating: IP65
Overpressure capability: can return to zero after 100% full scale
Ambient temperature: -20℃~60℃

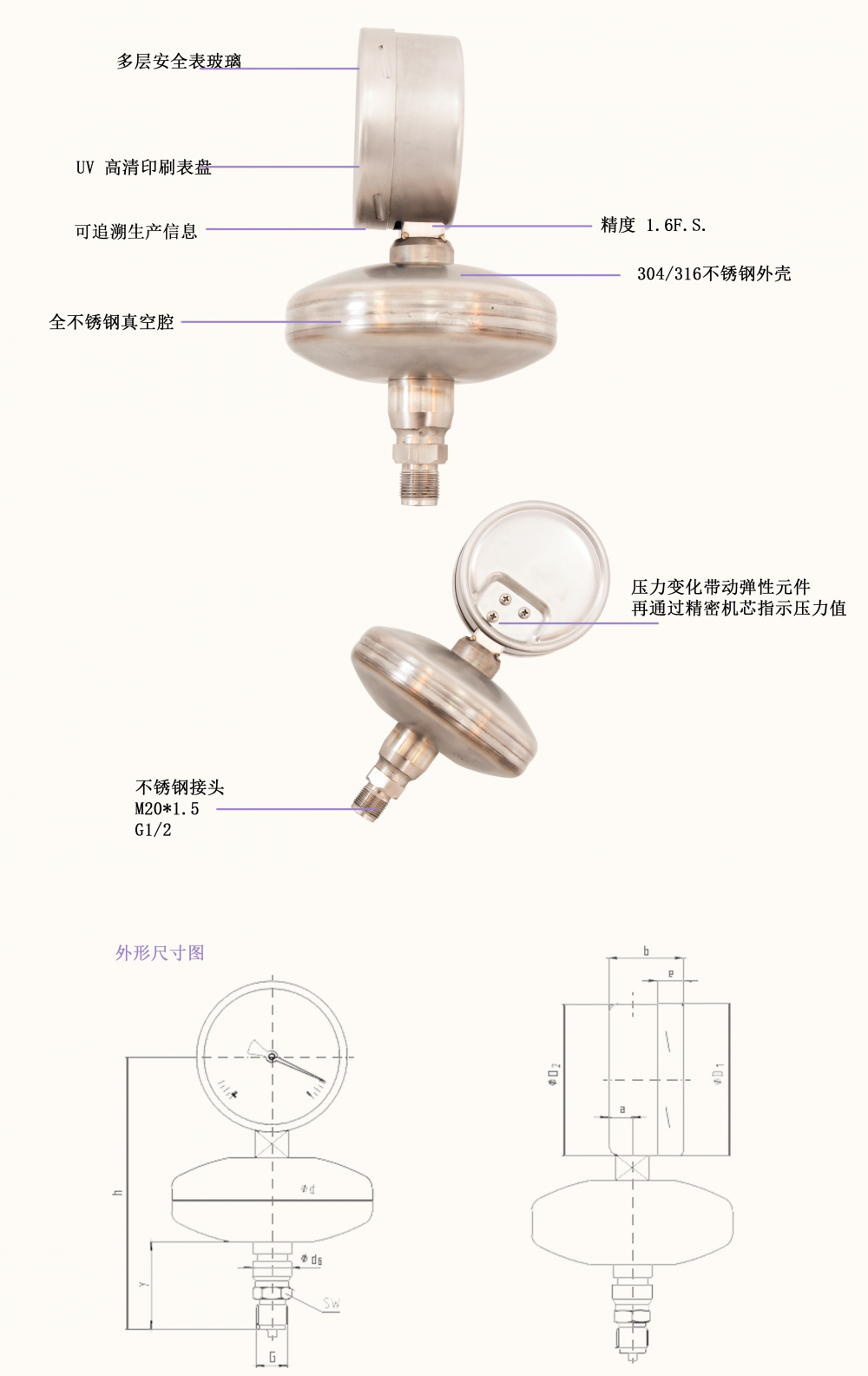

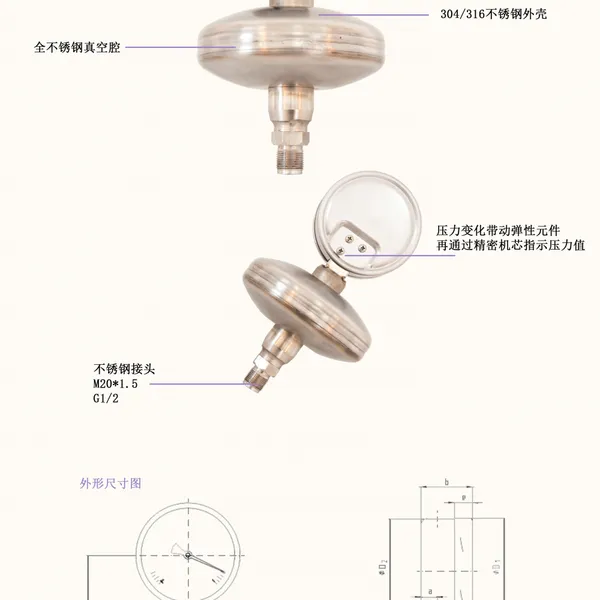

Multilayer safety watch glass
UV high definition printed dial
Traceable production information
Accuracy 1.6F.S.
All stainless steel vacuum chamber
Stainless steel connector M20*1.5G1/2
304/316 stainless steel housing
The pressure change drives the elastic element and then indicates the pressure value through the precision movement.
