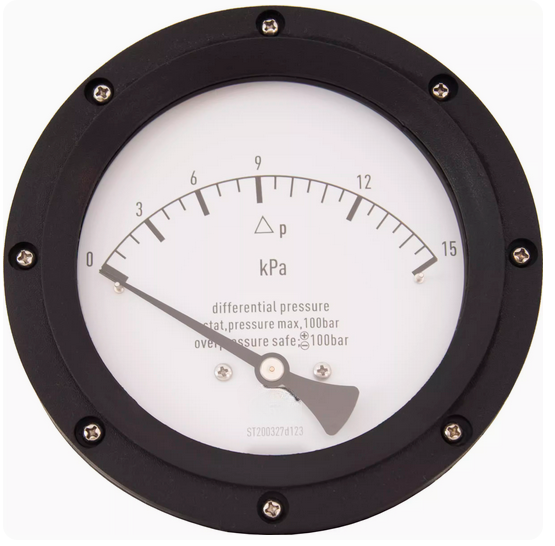

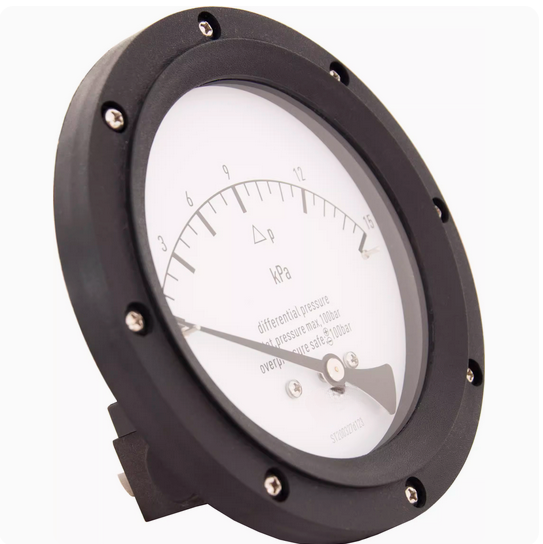

120MM Horizontal/bottom Electric Contact Magnetic Differential Pressure Electric Contact Pressure Gauge

120MM horizontal/bottom electric contact magnetic differential pressure electric contact pressure gauge
15Kpa differential pressure 6Mpa electrostatic contact 150mm outer diameter 2.5FS
35Kpa differential pressure 6Mpa electrostatic contact 150mm outer diameter 2.5FS
45Kpa differential pressure 6Mpa electrostatic contact 150mm outer diameter 2.5FS
60Kpa differential pressure 6Mpa electrostatic contact 150mm outer diameter 2.5FS
100Kpa differential pressure 6Mpa electrostatic contact 150mm outer diameter 2.5FS
160Kpa differential pressure 6Mpa electrostatic contact 150mm outer diameter 2.5FS
250Kpa differential pressure 6Mpa electrostatic contact 150mm outer diameter 2.5FS
400Kpa differential pressure 6Mpa electrostatic contact 150mm outer diameter 2.5FS
600Kpa differential pressure 6Mpa electrostatic contact 150mm outer diameter 2.5FS
1000Kpa differential pressure 6Mpa electrostatic contact 150mm outer diameter 2.5FS

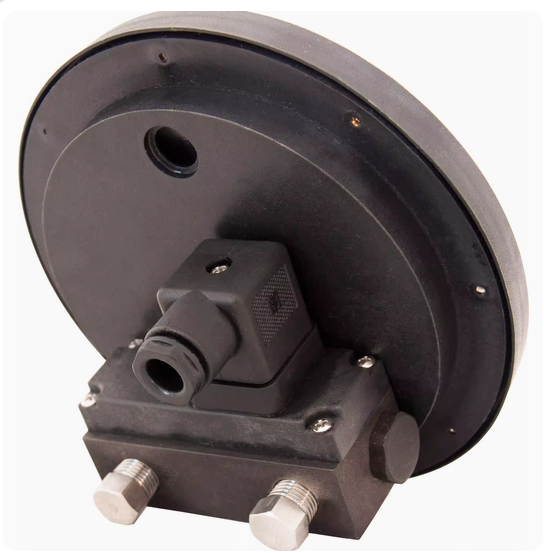

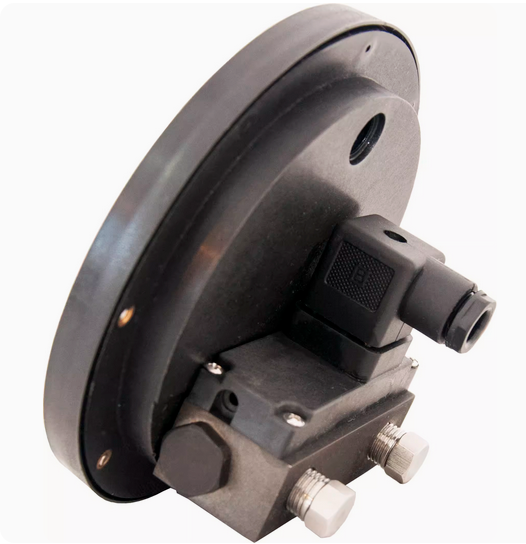

Axial connection + transmitter YC-120 series industrial magnetic differential pressure meter
Industrial magnetic differential pressure meter product parameters:
Product Model: Axial connection + transmitter
Instrument accuracy :2.5F.S.
Case material: aluminum brake alloy
Joint material :316L stainless steel, aluminum alloy
Dial diameter :150MM
IP level :IP54/65
Overpressure capacity :100% full scale can be returned to zero
Ambient temperature :0 ° C ~+70 ° C

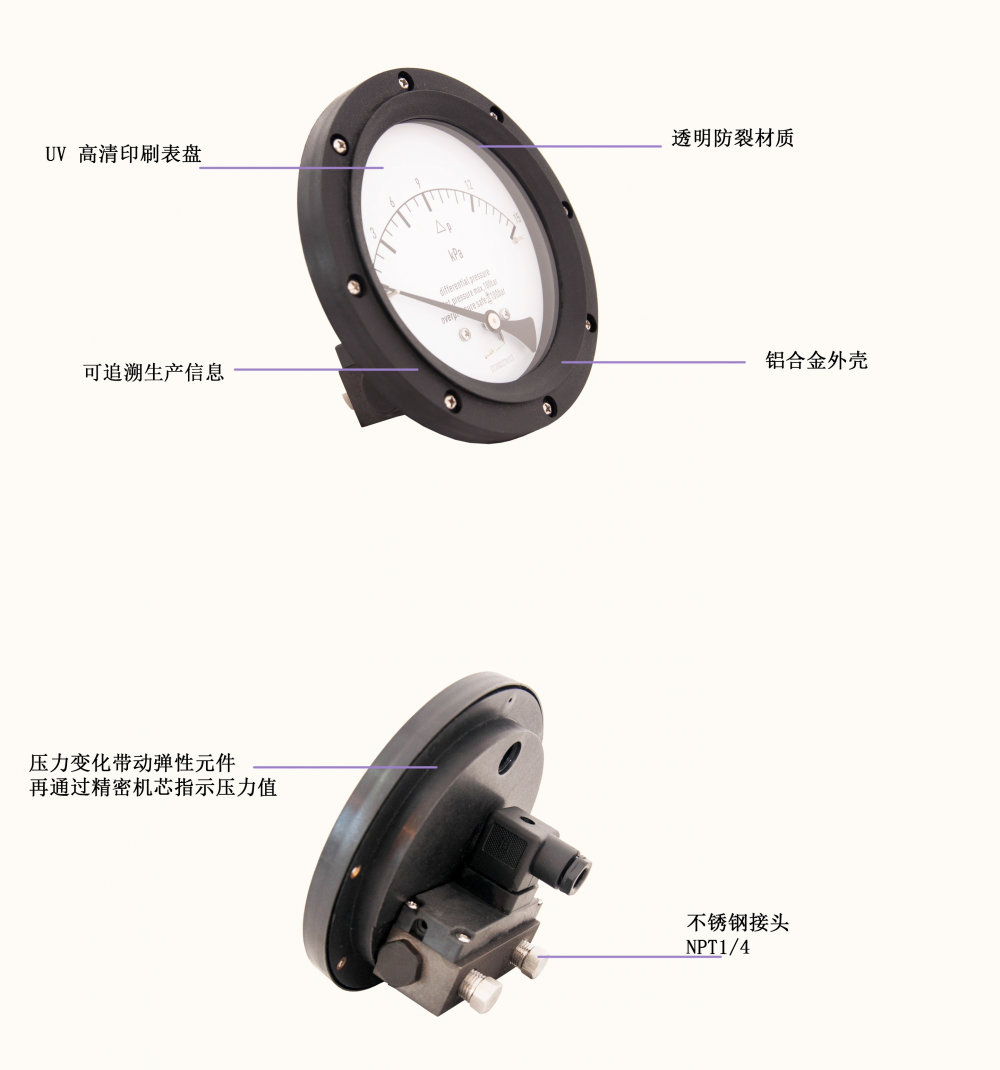

UV HD printed dial
Traceability of production information
Transparent crack resistant material
Aluminium alloy housing
The pressure change drives the elastic element and then indicates the pressure value through the precision movement
Stainless steel joint NPT1/4
