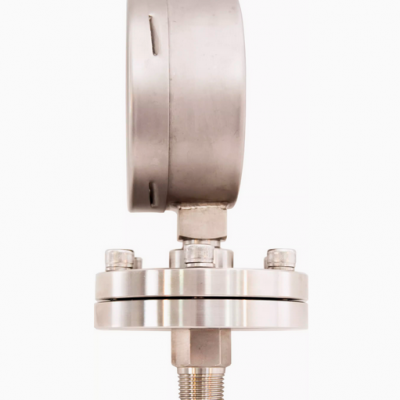

Hastelloy Monel Bile Material PTFE Diaphragm Pressure Gauge
SUS316L isolation diaphragm 1.6 level precision diaphragm pressure gauge
SUS316L PTFE sprayed isolation diaphragm 1.6 level precision diaphragm pressure gauge
Titanium isolation diaphragm 1.6 level precision diaphragm pressure gauge
Bile isolation diaphragm 1.6 level precision diaphragm pressure gauge
Harbin alloy isolation diaphragm 1.6 level precision diaphragm pressure gauge
Monel alloy isolation diaphragm 1.6 level precision diaphragm pressure gauge
PTFE isolation diaphragm 1.6 grade precision diaphragm pressure gauge
Inconel625 isolation diaphragm 1.6 level precision diaphragm pressure gauge

Radial connection
YTNP-100H series
All stainless steel liquid-filled shock-resistant diaphragm pressure gauge

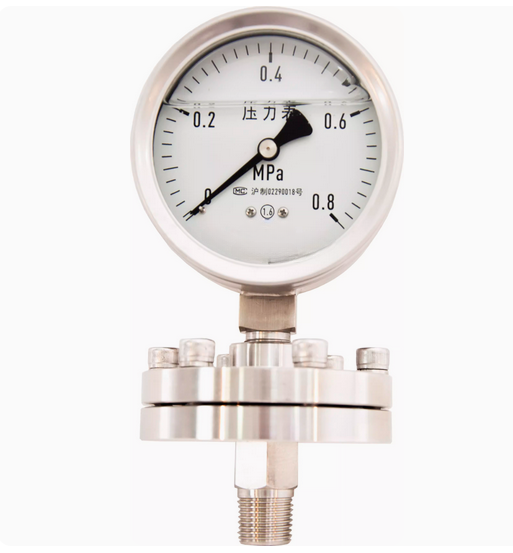

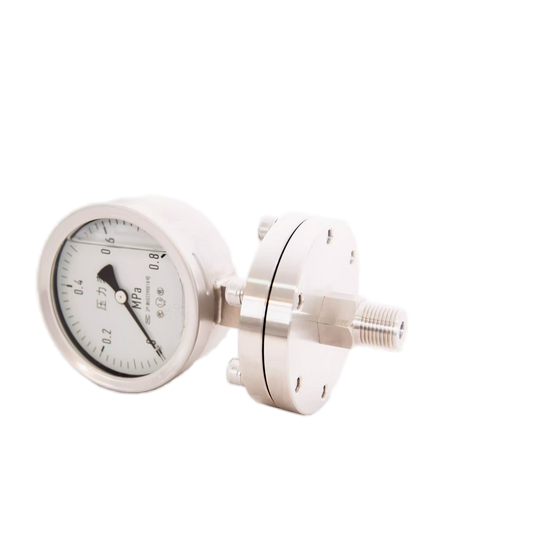

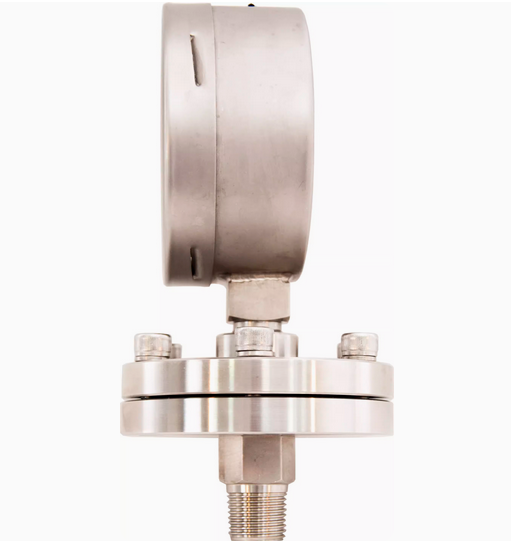

Product model: Liquid-filled shock-resistant diaphragm pressure gauge YTNP-100H
Instrument accuracy: 1.6/1.0 F.S.
Shell material: stainless steel 304/316L
Connector material: stainless steel 304/316L
Diaphragm material: Hastelloy, Monel, gall material, PTFE
Dial diameter: 100mm
IP rating: IP65
Overpressure capability: can return to zero after 400% full scale
Ambient temperature: -20℃~60℃

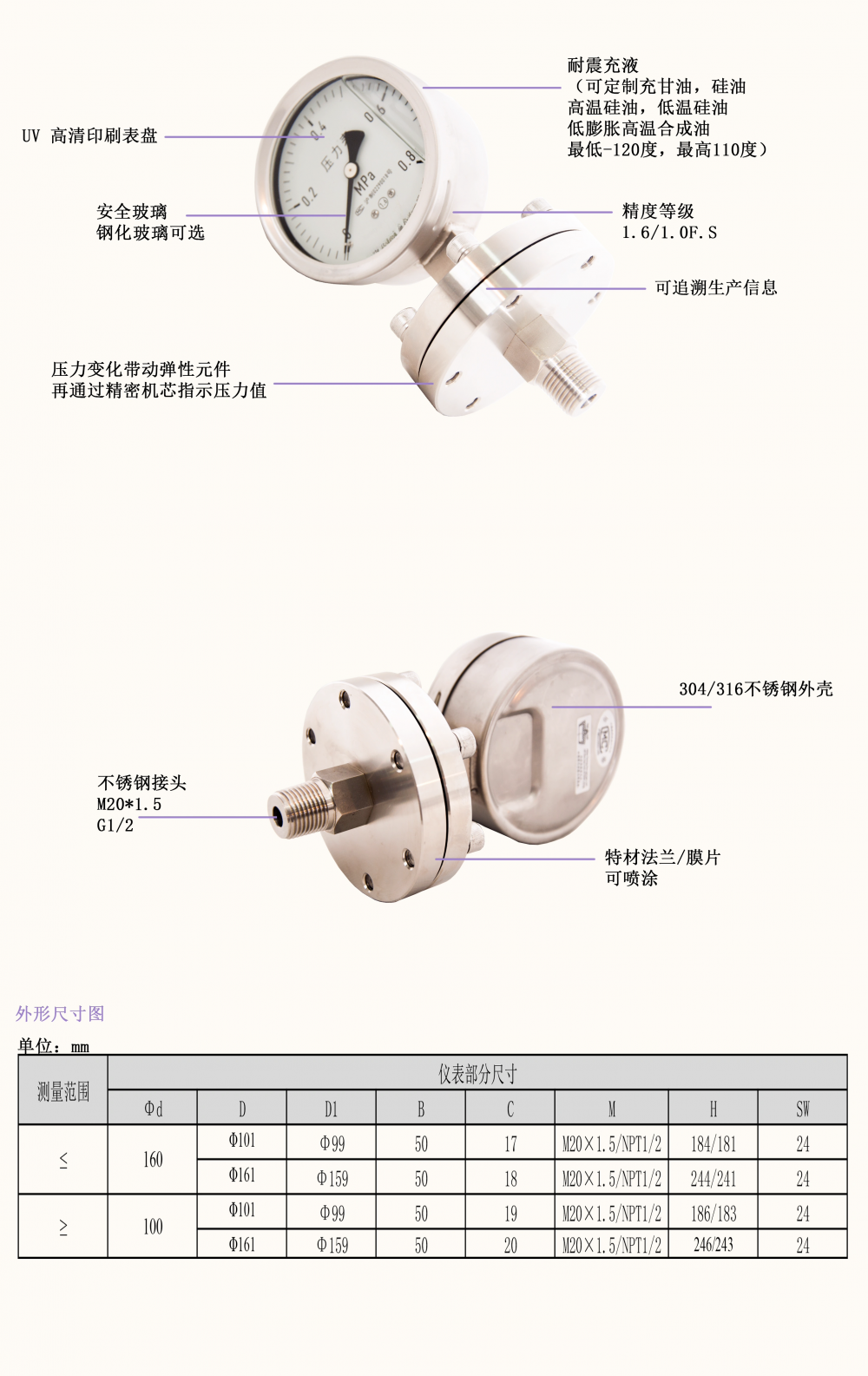

UV high definition printed dial
Safety glass tempered glass optional
Shock-resistant liquid filling (can be customized to fill with glycerin, silicone oil, high temperature silicone oil, low temperature silicone oil, low expansion, high temperature synthetic oil, minimum -120 degrees, maximum 110 degrees)
The pressure change drives the elastic element and then indicates the pressure value through the precision movement.
Stainless steel connector:M20*1.5G1/2

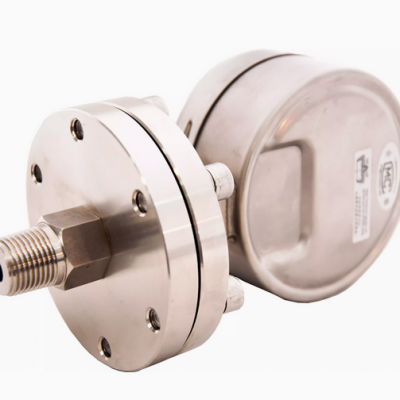

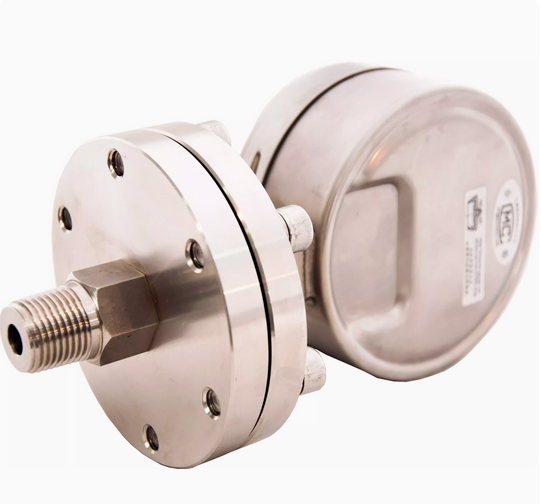

304/316 stainless steel housing
Special material flange/diaphragm can be sprayed
