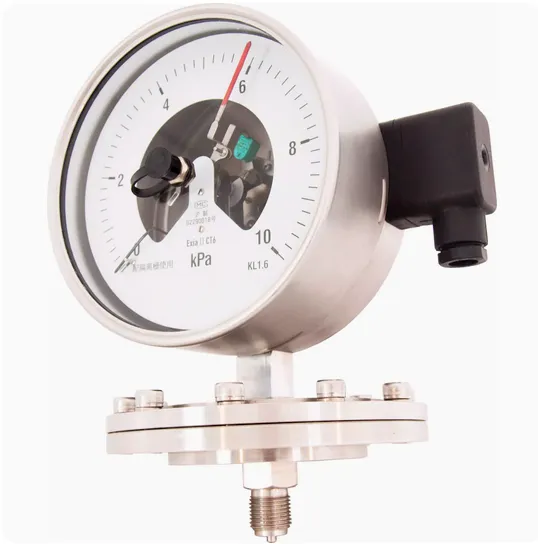

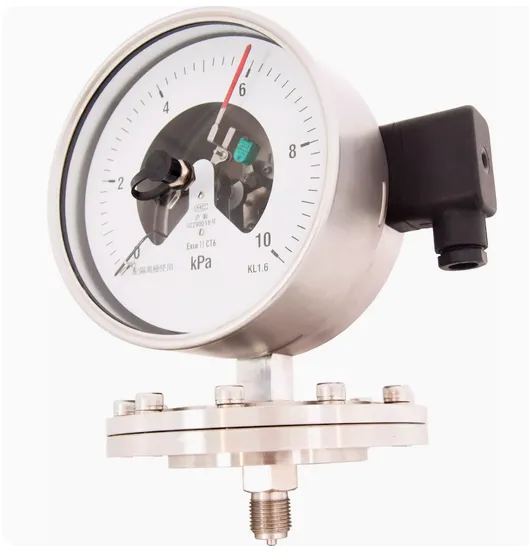

All stainless steel inductive electric contact diaphragm pressure gauge 4-20mA

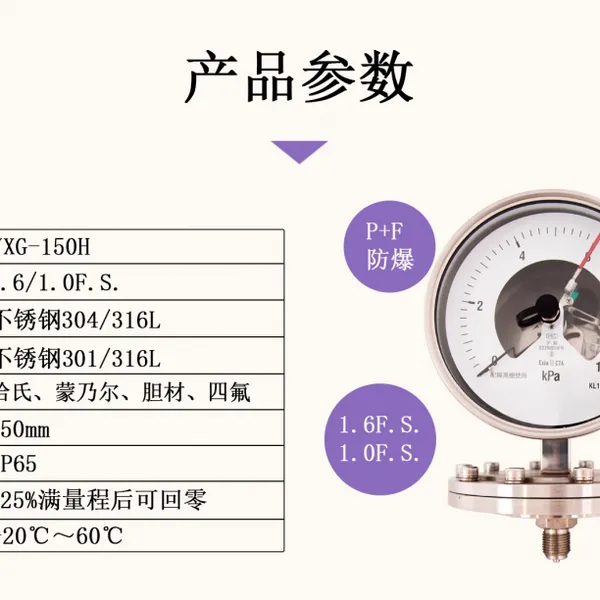

Product parameters of inductive electric contact diaphragm pressure gauge
Product model: YXG-150H
Instrument accuracy: 1.6/1. OF.S.
Shell material: stainless steel 304/316L
Connector material: stainless steel 301/316L
Diaphragm material: Hastelloy C-276, Monel, gall material, PTFE
Dial diameter: 100mm/150mm/160mm
IP rating: IP65
Overpressure capability: can return to zero after 125% full scale
Ambient temperature: -20℃~60℃
P+F explosion-proof

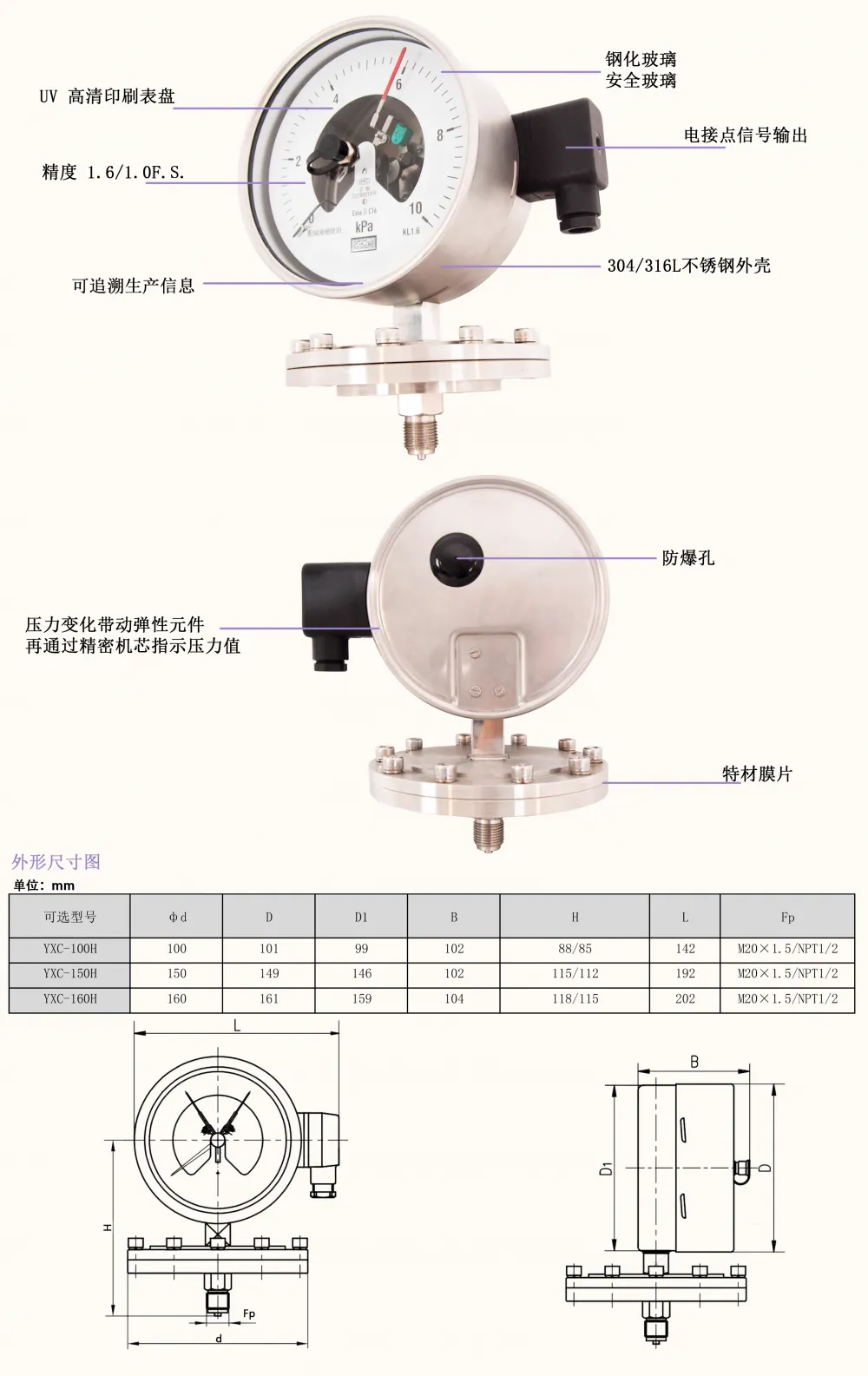

UV high definition printed dial
Tempered glass safety glass
Accuracy 1.6/1.OF.S.
Electrical contact signal output
Traceable production information
304/316L stainless steel shell
The pressure change drives the elastic element and then indicates the pressure value through the precision movement.
Explosion protection hole
