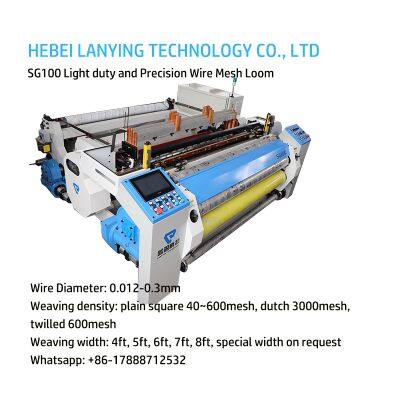

SG100 Series Weaving Machine
SG100 Series CNC metal wire mesh weaving machine mainly suitable for ultra fine, thin fabric weaving. It adopts large touch screen HMI, the operation is simple; specially designed precision let-off and precision tension control algorithm can display the tension in real time and automatically adjust the mesh surface tension; CNC 3-roller take-up structure can realize non-stop mesh removal at any length. The user can choose different shedding mechanism,L cam arch heald frames mechanism, electronic rotary dobby, servo dobby shedding mechanism. The weaving precision is high and noise is small, easy to operate and maintenance. According to the accuracy, it is divided into SG100L light-duty series and SG100P precision series.
Wire diameter |
0.016-0.3mm |
||
Weaving density |
Plain weave square hole 40-400 (or 20-260)mesh/inch; twilled weave upto 600mesh/inch |
||
Nominal width (special width on request) |
1.3m |
1.6m |
2m |
Speed(the actual speed depends on the weaving specs and width) |
80-120RPM |
80-100RPM |
65-80RPM |
Total power |
7.5KW |
8.5KW |
8.5KW |
Size (L*W*H) mm |
2750X3300X1500 |
2750X3600X1500 |
2750X4000X1500 |
Weight |
4200KG |
4500KG |
4600KG |
Basic tension |
15000 N/m |
||
Product Series |
SG100 Series |
SG130 Series |
SG160 Series |
SG180 Series |
|
Standard weaving width (Special width on request)
|
1300mm 1600mm 2000mm |
1300mm 1600mm 2000mm 2500mm 3000mm |
1300mm 1600mm 2000mm 2500mm 3000mm |
1300mm 1600mm 2000mm 2500mm 3000mm 4000mm |
Wire diameter range |
0.016-0.3mm |
0.06-0.45mm |
0.1-0.7mm |
0.2-2.1mm |
Plain weave square hole (mesh/inch) |
40-400 |
20-260 |
10-100 |
6-60 |
Twill weave (mesh/inch) |
≤600 |
≤400 |
≤350 |
≤260 |
Wire material |
Stainless steel, iron, copper, aluminum, platinum, nickel, polyester |
Stainless steel, iron, copper, aluminum, |
Stainless steel, iron, copper, aluminum, |
Stainless steel, iron,copper, aluminum, |
Speed |
100 rpm |
100 rpm |
50-70 rpm |
35-50 rpm |
Basic tension |
15000 N/m |
20000 N/m |
40000 N/m |
60000 N/m |
-
SG100P/130-1JD precision metal wire mesh weaving machineSG100 Series CNC metal wire mesh weaving machine mainly suitable for ultra fine, thin fabric weaving.
-
SG100L/130-1JD Light-duty metal wire mesh weaving machineSG100 Series CNC metal wire mesh weaving machine mainly suitable for ultra fine, thin fabric weaving.
-
SG100L/160-1JD Light-duty metal wire mesh weaving machineSG100 Series CNC metal wire mesh weaving
