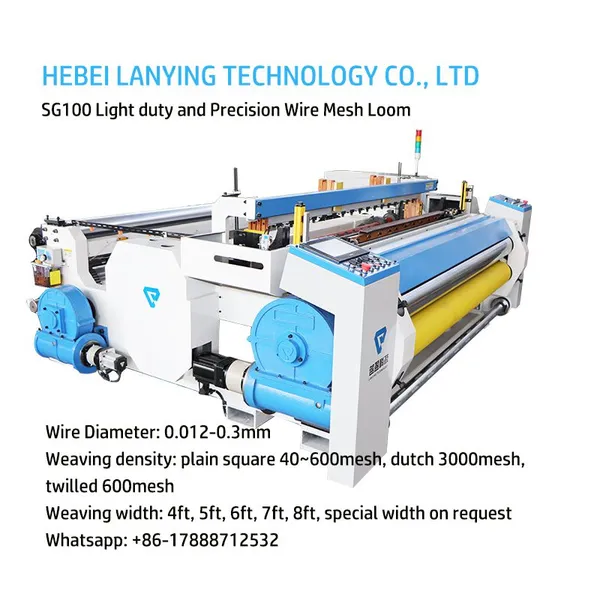

Help CenterElectronical Rotary Dobby Type Wire Mesh Weaving Machine From LANYING Wire Mesh Weaving Machine
Product Spotlights
Related Products
-
Advanced CNC Metal Wire Mesh Weaving Machines From CHINA LANYINGNegotiableMOQ: 1 Set -
Optimized Dutch Weave Wire Mesh Weaving Machine From LANYING 3000meshUS$ 19000 - 35000MOQ: 1 Set
-
Micro Wire Mesh Weaving Machine From LANYING Wire Mesh Weaving MachineUS$ 18000 - 30000MOQ: 1 Set
-
PCB Screen Printing Wire Mesh Weaving MachineUS$ 19000 - 30000MOQ: 1 Set
-
PLC Controlled Automatic Precsion High Speed Wire Mesh Weaving MachineUS$ 19000 - 30000MOQ: 1 Set
Product Series |
SG100 Series |
SG130 Series |
SG160 Series |
SG180 Series |
|
Standard weaving width (Special width on request)
|
1300mm 1600mm 2000mm |
1300mm 1600mm 2000mm 2500mm 3000mm |
1300mm 1600mm 2000mm 2500mm 3000mm |
1300mm 1600mm 2000mm 2500mm 3000mm 4000mm |
Wire diameter range |
0.016-0.3mm |
0.06-0.45mm |
0.1-0.7mm |
0.2-2.1mm |
Plain weave square hole (mesh/inch) |
40-400 |
20-260 |
10-100 |
6-60 |
Twill weave (mesh/inch) |
≤600 |
≤400 |
≤350 |
≤260 |
Wire material |
Stainless steel, iron, copper, aluminum, platinum, nickel, polyester |
Stainless steel, iron, copper, aluminum, |
Stainless steel, iron, copper, aluminum, |
Stainless steel, iron,copper, aluminum, |
Speed |
100 rpm |
100 rpm |
50-70 rpm |
35-50 rpm |
Basic tension |
15000 N/m |
20000 N/m |
40000 N/m |
60000 N/m |
Lanying CNC metal wire mesh weaving machines, we mainly produce wire weaving machines for stainless steel mesh weaving, brass wire mesh weaving, copper wire mesh weaving, nickel wire mesh weaving, patinum wire mesh weaving, etc.. Any inquiry, please feel free to contact Ms. Bonnie Chen
