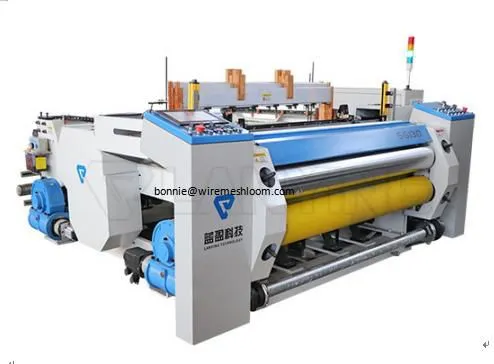

Help CenterCHINA Most Advanced LANYING CNC Metal Wire Mesh Weaving Machine SG100/SG130/SG160/SG180
Product Spotlights
Related Products
-
Rapier Wire Mesh Weaving Machine From LANYING Wire Mesh Weaving MachineUS$ 18000 - 30000MOQ: 1 Set -
Electronical Rotary Dobby Type Wire Mesh Weaving Machine From LANYING Wire Mesh Weaving MachineUS$ 18000 - 30000MOQ: 1 Set
-
Advanced CNC Metal Wire Mesh Weaving Machines From CHINA LANYINGNegotiableMOQ: 1 Set
-
Optimized Dutch Weave Wire Mesh Weaving Machine From LANYING 3000meshUS$ 19000 - 35000MOQ: 1 Set
-
Micro Wire Mesh Weaving Machine From LANYING Wire Mesh Weaving MachineUS$ 18000 - 30000MOQ: 1 Set
Hebei Lanying Technology Co., LTD is a technology-oriented enterprise that is composed of mechanical and automation professionals, with strong R&D capacity. We have been engaged in the manufacturing of metal wire mesh weaving looms since 20 years ago. We commit to improving the automation and efficiency of the metal wire mesh weaving. From self-developed special CNC system and algorithm for the metal wire mesh weaving loom to the fully CNC weaving loom and the fully CNC warping machine. We not only manufacture general use wire mesh weaving machine but also provide customized machines and effective overall solutions according to customer requirements.Our products mainly include four series: SG100 series, SG130 series, SG160 heavy-duty series, SG180 super heavy-duty series which cover all-round weaving range from light and thin fabrics with a diameter of 0.016mm (not limited to) to heavy fabrics with a diameter of 2.1mm (not limited to). With reliable quality and after-sales services, our products not only win domestic customers trust, but also export to France, Japan, South Korea, India, Russia, Taiwan and other countries and regions.
Lanying technology, which is progressing with the times, is committed to researching and developing high-precision and high performance looms. We will satisfy customers' arbitrary needs for metal wire weaving fabrics with our best products!
Lanying technology, which is progressing with the times, is committed to researching and developing high-precision and high performance looms. We will satisfy customers' arbitrary needs for metal wire weaving fabrics with our best products!
Product Series |
SG100 Series |

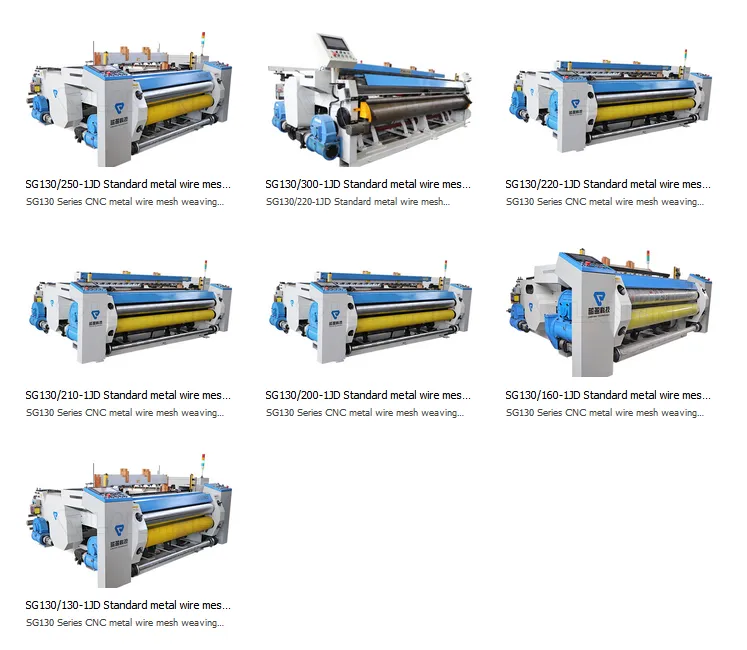

SG130 Series |
SG160 Series |
SG180 Series |
|
Standard weaving width (Special width on request)
|
1300mm 1600mm 2000mm |
1300mm 1600mm 2000mm 2500mm 3000mm |
1300mm 1600mm 2000mm 2500mm 3000mm |
1300mm 1600mm 2000mm 2500mm 3000mm 4000mm |
Wire diameter range |
0.016-0.3mm |
0.06-0.45mm |
0.1-0.7mm |
0.2-2.1mm |
Plain weave square hole (mesh/inch) |
40-400 |
20-260 |
10-100 |
6-60 |
Twill weave (mesh/inch) |
≤600 |
≤400 |
≤350 |
≤260 |
Wire material |
Stainless steel, iron, copper, aluminum, platinum, nickel, polyester |
Stainless steel, iron, copper, aluminum, |
Stainless steel, iron, copper, aluminum, |
Stainless steel, iron,copper, aluminum, |
Speed |
100 rpm |
100 rpm |
50-70 rpm |
35-50 rpm |
