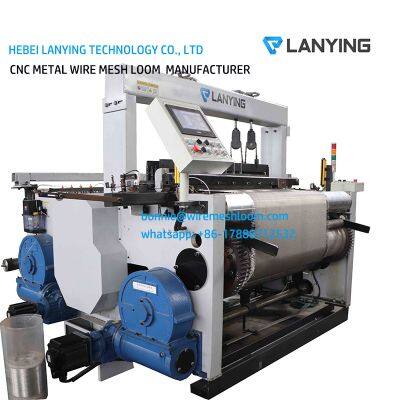

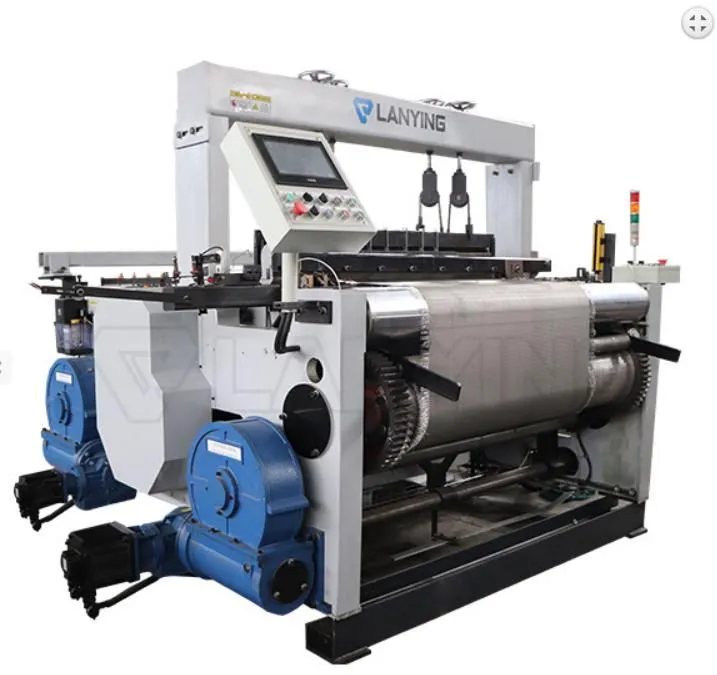

SG160 Series weaving machine
SG160 Series CNC metal wire mesh weaving machine is designed for heavy wire mesh weaving. The opening is small, and mesh surface is flat, there are single beat-up form and double beat-up form.
Product Series |
SG100 Series |
SG130 Series |
SG160 Series |
SG180 Series |
|
Standard weaving width (Special width on request)
|
1300mm 1600mm 2000mm |
1300mm 1600mm 2000mm 2500mm 3000mm |
1300mm 1600mm 2000mm 2500mm 3000mm |
1300mm 1600mm 2000mm 2500mm 3000mm 4000mm |
Wire diameter range |
0.016-0.3mm |
0.06-0.45mm |
0.1-0.7mm |
0.2-2.1mm |
Plain weave square hole (mesh/inch) |
40-400 |
20-260 |
10-100 |
6-60 |
Twill weave (mesh/inch) |
≤600 |
≤400 |
≤350 |
≤260 |
Wire material |
Stainless steel, iron, copper, aluminum, platinum, nickel, polyester |
Stainless steel, iron, copper, aluminum, |
Stainless steel, iron, copper, aluminum, |
Stainless steel, iron,copper, aluminum, |
Speed |
100 rpm |
100 rpm |
50-70 rpm |
35-50 rpm |
ire diameter |
0.1-0.7mm |
||||
Weaving density |
Plain weave square hole 10-100mesh/inch; twilled weave up to 350mesh/inch | ||||
Nominal width (special width on request) |
1.3m |
1.6m |
2m |
2.5m | 3m |
Speed(the actual speed depends on the weaving specs and width) |
60-70RPM |
60-70RPM |
50-60RPM |
45-55RPM | 40-45RPM |
Total power |
10.5KW |
12KW |
12.5KW |
13.5KW | 17KW |
Size (L*W*H) mm |
2700X3300X1960 |
3000X3600X1960 |
2800X4000X2150 |
2800X4500X2150 | 2800X4800X2150 |
Weight |
6300KG |
7000KG |
8500KG |
9500KG | 12000KG |
Basic tension |
40000 N/m |
||||
