Rock Permeability Testing Dual Packer 75NTW Drill Pipe Buckle
Negotiable
/ Piece
1 Piece(Min. Order)
- TianJin
- T/T Other
- 2 days
You May Like
-
Rock Testing Packer (NQ HQ PQ) Not Pulling the Drill Pipe
-
Hq Hole Wire Line Air Inflation Double Packer for Geology Permeability Lugeon Testing
-
Air or Water Inflation Double Packer for Geotechnical Engineering Permeability Testing
-
Water Inflatable Double Packer/Geological Borehole Underground Permeability Lugeon Testing Equipment
-
Wire-Line Core Barrels Inflated Packers Permeability Testing With Bumper
-
Hand Pump/Manual Pressure Test Pump
Product Details
| Brand Name | aoxing | Place of Origin | China | |
| Model Number | 50-1000mm |
Product Description
Product Description
The Lugeon test, sometimes call also Packer test, is an in-situ testing method widely used to estimate the avarage hydraulic conductivity of rock mass. It is indeed In situ test of formation permeability performed by measuring the volume of water taken in a section of test hole when the interval is pressurized at given pressure (10 bars -150 psi). It is used primarily in variably permeable formations under evaluation of fracturating .

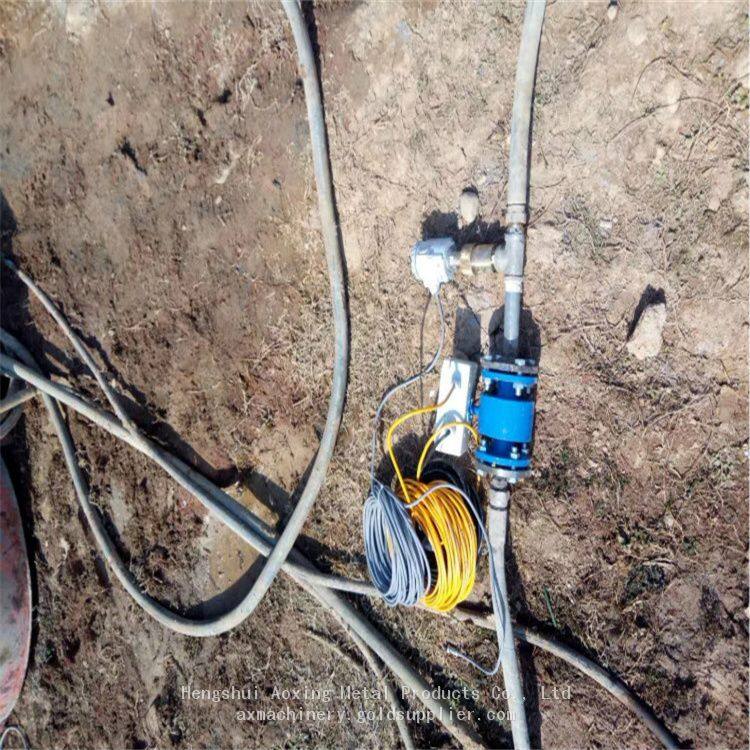

Deployment and operation is simple. The wireline permeability packer assemble is deployed down the drill rods until the bit seating sub lands on the drill rod bit. With the top seal assembly (tighthead) tightened, the packers are inflated and water is then pumped through the tighthead down the rods, through the packers and into the formation.
Main technical parameters:
Sealing hole diameter: 30-200mm (can be processed according to user requirements)
Working pressure :1-8MPa (can be processed according to user needs)
Work flow rate: 3-4.5 tons of grouting per hour
Sealing depth: 1-8000m
Deployment and operation is simple. The wireline permeability packer assemble is deployed down the drill rods until the bit seating sub lands on the drill rod bit. With the top seal assembly (tighthead) tightened, the packers are inflated and water is then pumped through the tighthead down the rods, through the packers and into the formation.
Main technical parameters:
Sealing hole diameter: 30-200mm (can be processed according to user requirements)
Working pressure :1-8MPa (can be processed according to user needs)
Work flow rate: 3-4.5 tons of grouting per hour
Sealing depth: 1-8000m
| Model | OD (mm) | Expansion of scope (mm) | Hole dia. (mm) | Working pressure≤ (Mpa) | Compressive strength (Mpa) | |
| Test pressure | Burst pressure | |||||
| φ32-2 | 50±2.0 | 90 8-4 | 60 | 6 | 12 | 24 |
| φ38-2 | 55±2.0 | 95 8-4 | 65 | 5 | 10 | 20 |
| φ38-4 | 60±2.0 | 95 8-4 | 75 | 12 | 18 | 24 |
| φ45-2 | 63±2.0 | 100 8-4 | 75 | 4 | 8 | 16 |
| φ45-4 | 69±2.0 | 100 8-4 | 75 | 16 | 24 | 32 |
| φ51-2 | 69±2.0 | 110 8-4 | 90 | 4 | 8 | 16 |
| φ51-4 | 75±2.0 | 110 8-4 | 90 | 16 | 24 | 32 |
| φ64-2 | 84±2.0 | 120 8-4 | 100 | 3 | 6 | 12 |
| φ64-4 | 90±2.0 | 120 8-4 | 100 | 8 | 12 | 16 |
| φ76-2 | 94±2.0 | 130 8-4 | 110 | 3 | 6 | 12 |
| φ76-4 | 99±2.0 | 130 8-5 | 110 | 8 | 12 | 16 |
| φ89-2 | 109±2.0 | 140 8-5 | 130 | 3 | 6 | 12 |
| φ102-2 | 122±2.0 | 160 8-5 | 150 | 3 | 6 | 12 |
