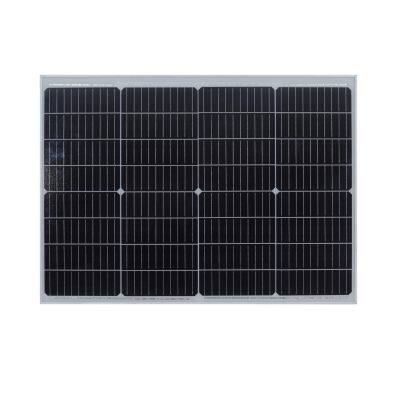

Mirekold Energy Monocrystalline Solar Panel 156 Series 5 W- 350W Solar Panel
US$ 0.09 - 0.12
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
Mirekold
Place of Origin:
China
Model Number:
MK350W24V72M156
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
15 days
Related Products
-
Mirekold Energy Monocrystalline Solar Panel 156 Series 5 W- 350W Solar PanelUS$ 0.09 - 0.12MOQ: 200 Pieces -
Mirekold Energy Monocrystalline Solar Panel 125 Series 50W 200W China Factory Solar PanelUS$ 0.09 - 0.12MOQ: 200 Pieces
-
Mirekold Energy Monocrystalline Solar Panel 158 Series 30W 360W China Factory Solar PanelUS$ 0.09 - 0.12MOQ: 200 Pieces
-
Mirekold Energy Monocrystalline Solar Panel 166 Series 40W 500W China Factory Solar PanelUS$ 0.09 - 0.12MOQ: 200 Pieces
-
Mirekold Energy Monocrystalline Solar Panel 182 Series 50W 560WChina Factory Solar PanelUS$ 0.09 - 0.12MOQ: 200 Pieces
Brand Name
Mirekold
Place of Origin
China
Model Number
MK350W24V72M156
Material
Monocrystalline Silicon
Size
1950*990*35*25
Max. Power
350
Number of Cells
32
| Company Abbreviation Power Watts Battery Voltage Volts Number of Cells Monocrystalline Cell Specifications | Pmax（W ) | Vmp ( V ) | Imp（A） | Voc（V) | Isc（A | Single crystal 156.75 *156.75Battery dicing specifications and string number | long *Width *Border height *Installation side width | Photovoltaic junction box model accessories description | regular packaging says |
| MK5W3.6V12M156 | 5 | 6.12 | 0.81 | 7.26 | 0.86 | Dicing 15.6 *22MM12 string | 210*190*17*17 | Model 703 (without cable or without MC4 connector) | 20Pieces in a carton without inner box |
| MK8W3.6V12M156 | 8 | 6.39 | 1.6 | 7.63 | 1.68 | Dicing156.75 *22MM12 string | 290*240*17*17 | Model 702 (without cable or without MC4 connector) | 20Pieces in a carton without inner box |
| MK10W3.6V12M156 | 10 | 6.36 | 1.56 | 7.59 | 1.64 | Dicing156.75 *31MM12 string | 325*235*17*17 | Model 702 (without cable or without MC4 connector) | 20Pieces in a carton without inner box |
| MK5W12V36M156 | 5 | 18 | 0.81 | 21.4 | 0.86 | Dicing 15.6 *22MM36 string | 210*190*17*17 | Model 703 (without cable or without MC4 connector) | 20Pieces in a carton without inner box |
| MK8W12V36M156 | 8 | 18 | 1.6 | 21.4 | 1.68 | Dicing156.75 *22MM36 string | 290*240*17*17 | Model 702 (without cable or without MC4 connector) | 20Pieces in a carton without inner box |
| MK10W12V36M156 | 10 | 18 | 1.56 | 21.4 | 1.64 | Dicing156.75 *31MM36 string | 325*235*17*17 | Model 702 (without cable or without MC4 connector) | 20Pieces in a carton without inner box |
| MK15W12V36M156 | 15 | 18.45 | 0.81 | 22.7 | 0.85 | Dicing156.75 *15.6MM36 string | 350*350*17*17 | Model 701 (without cable or without MC4 connector) | 10Pieces in a carton without inner box |
| MK20W12V36M156 | 20 | 19.8 | 1.01 | 23.63 | 1.06 | Dicing156.75 *19.5MM36 string | 420*350*17*17 | Model 701 (without cable or without MC4 connector) | 10Pieces in a carton without inner box |
| MK25W12V36M156 | 25 | 19.8 | 1.01 | 23.63 | 1.06 | Dicing156.75 *22.4MM36 string | 450*350*17*17 | Model 701 (without cable or without MC4 connector) | 10Pieces in a carton without inner box |
| MK30W12V36M156 | 30 | 19.44 | 1.54 | 23.74 | 1.62 | Dicing156.75 *26MM36 string | 535*350*17*17 | SY026 1*10Diode double hole without wire | 10Pieces in a carton without inner box |
| MK40W12V36M156 | 40 | 18.9 | 2.11 | 22.5 | 2.22 | Dicing156.75 *39MM36 string | 770*350*25*20 | SY026 1*10Diode double hole without wire | 5Pieces in a carton without inner box |
| MK50W12V36M156 | 50 | 19.2 | 2.6 | 23.2 | 2.73 | Dicing156.75 *46MM36 string | 460*680*25*20 | SY026 1*11Diode double hole without wire | 5Pieces in a carton without inner box |
| MK60W12V36M156 | 60 | 19.2 | 3.12 | 23.2 | 3.4 | Dicing156.75 *52MM36 string | 510*680*25*20 | SY027 2 15 A diode | 5Pieces in a carton without inner box |
| MK70W12V36M156 | 70 | 19.2 | 3.64 | 23.2 | 3.97 | Dicing156.75 *63.75MM36 string | 620*680*25*20 | SY027 2 15 A diode | 5Pieces in a carton without inner box |
| MK100W12V36M156 | 100 | 18.3 | 5.46 | 22.6 | 5.76 | Dicing156.75 *78.3MM36 string | 760*680*25*20 | SY027 2 15 A diode | 2Pieces in a carton without inner box |
| MK120W12V36M156 | 120 | 19.3 | 6.21 | 23.3 | 6.77 | Dicing156.75 *104MM36 string | 1000*680*30*25 | SY026 1*10Diode double hole without wire | 2Pieces in a carton without inner box |
| MK130W12V36M156 | 130 | 19.2 | 7.29 | 23.2 | 7.95 | Dicing156.75 *125.4MM36 string | 1190*680*30*25 | SY027 2 15 A Diode strip 60 CM2.5 flat photovoltaic line +mc4 Male and female heads | 2Pieces in a carton without inner box |
| MK180W12V36M156 | 180 | 18.9 | 9.5 | 22.97 | 10.47 | Full movie 156.75 *156.75MM36 string | 1480*680*30*25 | SY207 2 15 A Diode strip 60 CM2.5 flat photovoltaic line +mc4 Male and female heads | 2Pieces in a carton without inner box |
| MK300W24V60M156 | 300 | 32.67 | 9.19 | 38.8 | 9.88 | Full movie 156.75 *156.75MM60 string | 1640*990*35*25 | PVCQ107 3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female connector | 30A pallet plus a box |
| MK350W24V72M156 | 350 | 37.8 | 9.25 | 44.98 | 10.18 | Full movie 156.75 *156.75MM72 string | 1950*990*35*25 | PVCQ107 3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female connector | 30A pallet plus a box |
