Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Cell > Mirekold Energy Monocrystalline Solar Panel 182 Series 50W 560WChina Factory Solar Panel

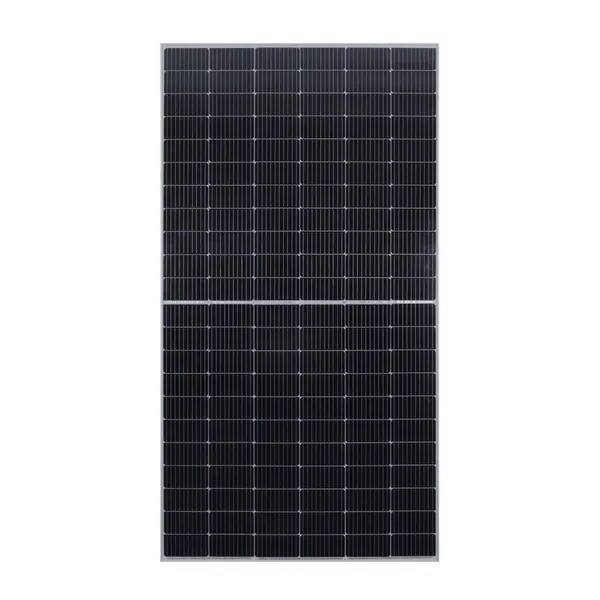

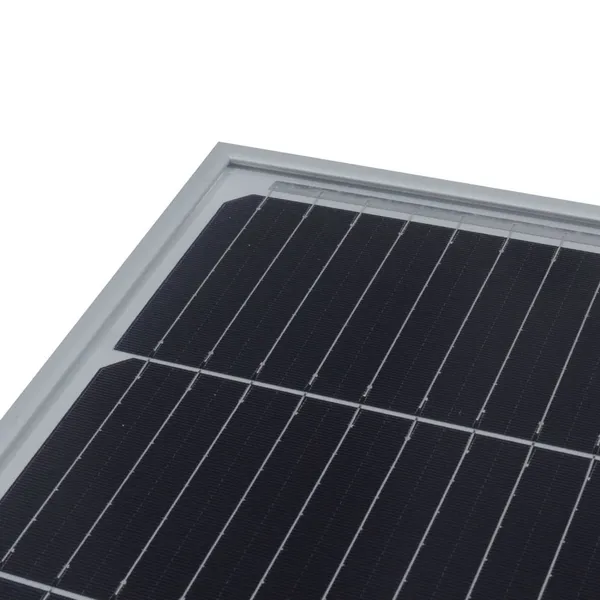

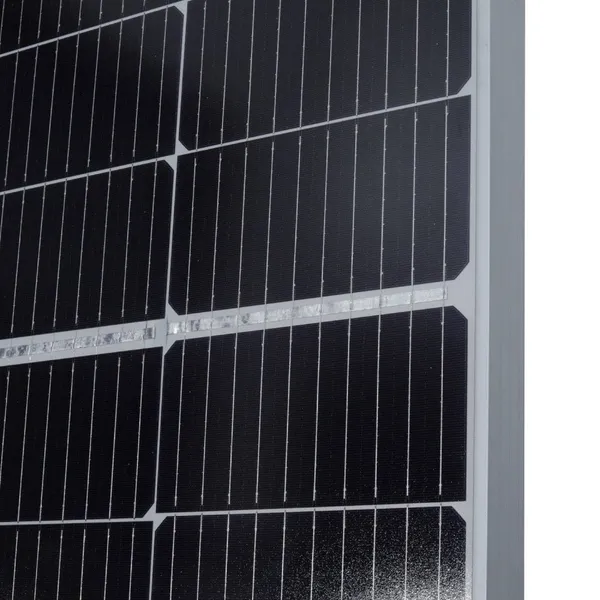

Mirekold Energy Monocrystalline Solar Panel 182 Series 50W 560WChina Factory Solar Panel

Mirekold Energy Monocrystalline Solar Panel 182 Series 50W 560WChina Factory Solar Panel thumbnail-1
Mirekold Energy Monocrystalline Solar Panel 182 Series 50W 560WChina Factory Solar Panel thumbnail-2
Mirekold Energy Monocrystalline Solar Panel 182 Series 50W 560WChina Factory Solar Panel thumbnail-3
Mirekold Energy Monocrystalline Solar Panel 182 Series 50W 560WChina Factory Solar Panel thumbnail-4
Mirekold Energy Monocrystalline Solar Panel 182 Series 50W 560WChina Factory Solar Panel thumbnail-5
Mirekold Energy Monocrystalline Solar Panel 182 Series 50W 560WChina Factory Solar Panel photo-1
Mirekold Energy Monocrystalline Solar Panel 182 Series 50W 560WChina Factory Solar Panel photo-2
Mirekold Energy Monocrystalline Solar Panel 182 Series 50W 560WChina Factory Solar Panel photo-3
Mirekold Energy Monocrystalline Solar Panel 182 Series 50W 560WChina Factory Solar Panel photo-4
Mirekold Energy Monocrystalline Solar Panel 182 Series 50W 560WChina Factory Solar Panel photo-5
US$ 0.09 - 0.12 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
Mirekold
Place of Origin:
China
Model Number:
MK500W24V132M182
Contact Supplier Request Quote Chat Now
Youwei Electronic Commerce (Hangzhou) Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Mirekold
Place of Origin China
Model Number MK500W24V132M182
Material Monocrystalline Silicon
Size 1950*990*35*25
Max. Power 500
Number of Cells 32
Monocrystalline module model Peak power Peak operating voltage Peak operating current open circuit voltage short circuit current ) 182Monocrystalline battery chip Component size Junction box specifications and models Packing box
    W*L*H(mm)
Company Abbreviation Power Watts Battery Voltage Volts Number of  Cells Monocrystalline Cell Specifications  Pmax   （W   )  Vmp    ( V )  Imp     （A）    Voc （V)    Isc  （A） Single  crystal 182 *182Battery chip dicing specifications and serial chip quantity  description long  *Width *Border height *Installation side width Accessories  description (other models and requirements are calculated separately) General  packaging instructions
MK50W12V36M182 50 20.16 2.48 23.4 2.54 Dicing  182 *36.4MM32 string 685*400*25*20 SY026    1*10Diode double hole without wire 5Pieces  in a carton without inner box
MK55W12V36M182 55 21.49 2.55 24.73 2.8 Dicing  182 *36.4MM36 string 740*400*25*20 SY026    1*10Diode double hole without wire 5Pieces  in a carton without inner box
MK60W12V32M182 60 19 3.15 21.88 3.3 Dicing  182 *45.5MM32 string 430*760*25*20 SY027    2 15 ADiode double hole without wire 5Pieces  in a carton without inner box
MK80W12V32M182 80 19 4.21 21.88 4.51 Dicing  182 *60.6MM32 string 540*765*25*20 SY027    2 15 ADiode double hole without wire 5Pieces  in a carton without inner box
MK90W12V36M182 90 21.34 4.21 24.58 4.51 Dicing 182 *60.6MM36 string 600*765*25*20 SY027   2 15 ADiode double  hole without wire 5Pieces in a carton without inner  box
MK100W12V36M182 100 20.16 4.96 23.4 5.2 Dicing  182 *72.8MM36 string 720*760*30*25 SY027    2 15 ADiode double hole without wire 2Pieces  in a carton without inner box
MK110W12V36M182 110 21.49 5.11 24.73 5.36 Dicing  182 *72.8MM36 string 720*760*30*25 SY027    2 15 ADiode double hole without wire 2Pieces  in a carton without inner box
MK120W12V32M182 120 18.6 6.45 21.88 6.77 Dicing  182 *91MM32 string 800*760*30*25 SY027    2 15 ADiode double hole without wire 2Pieces  in a carton without inner box
MK135W12V36M182 135 21.38 6.31 24.66 6.63 Dicing  182 *91MM36 string 880*760*30*25 SY027    2 15 ADiode double hole without wire 2Pieces  in a carton without inner box
MK150W12V60M182 150 17.43 8.62 20.43 9.137 Dicing  182 *60.6MM30+30 string 980*760*30*25 SY027    2 15 ADiode double hole without wire 2Pieces  in a carton without inner box
MK160W12V64M182 160 18.65 8.57 21.88 9 Dicing  182 *60.6MM32+32 string 1040*760*30*25 SY027  15 A Diode strip 60 CM2.5 flat photovoltaic line +mc5 Male and female heads 2Pieces  in a carton without inner box
MK180W12V68M182 180 21.34 8.47 24.6 8.9 Dicing  182 *60.6MM36+36 string 1180*760*30*25 PVCQ107    3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female  connector 2Pieces  in a carton without inner box
MK200W12V68M182 200 20.02 9.99 23.08 10.48 Dicing  182 *72.8MM34+34 string 1320*760*30*25 PVCQ107    3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female  connector 2Pieces  in a carton without inner box
MK215W12V72M182 215 21.3 10.09 22.01 10.59 Dicing  182 *72.8MM36+36 string 1370*760*30*25 PVCQ107    3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female  connector 2Pieces  in a carton without inner box
MK230W24V64M182 230 36.9 6.23 42.24 6.54 Dicing  182 *91MM64 string 1540*760*30*25 PVCQ107    3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female  connector 2Pieces  in a carton without inner box
MK240W24V64M182 240 38 6.31 43.77 6.63 Dicing  182 *91MM64 string 1540*760*30*25 PVCQ107    3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female  connector 2Pieces  in a carton without inner box
MK250W24V64M182 250 38.4 6.51 44.8 6.83 Dicing  182 *91MM64 string 1540*760*30*25 PVCQ107    3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female  connector 2Pieces  in a carton without inner box
MK240W24V64M182 240 38 6.31 43.77 6.63 Dicing  182 *91MM64 string 1580*808*30*25   PVCQ107    3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female  connector 2Pieces  in a carton without inner box
MK260W24V72M182 260 42.14 6.17 48.6 6.48 Dicing  182 *91MM72 string 1720*760*30*25 PVCQ107    3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female  connector 2Pieces  in a carton without inner box
MK270W24V72M182 270 42.76 6.31 49.24 6.63 182*182Dicing  182 *91MM72 string 1720*760*30*25 PVCQ107    3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female  connector 2Pieces  in a carton without inner box
MK280W24V72M182 280 43.2 6.48 49.75 6.8 Dicing  182 *91MM72 string 1720*760*30*25 PVCQ107    3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female  connector 2Pieces  in a carton without inner box
MK290W24V120M182 290 35.28 8.21 40.68 8.63 Dicing  182 *60.6MM60+60 string 1290*1134*35*25 PVCQ107    3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female  connector 30A  pallet plus a box
MK300W24V120M182 300 35.64 8.41 41.04 8.83 Dicing  182 *60.6MM60+60 string 1290*1134*35*25 PVCQ107    3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female  connector 30A  pallet plus a box
MK300W24V126M182 300 36.54 8.21 42.21 8.62 Dicing  182 *60.6MM63+63 string 1360*1134*35*25 PVCQ107    3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female  connector 30A  pallet plus a box
MK310W24V126M182 310 37.1 8.35 42.84 8.77 Dicing  182 *60.6MM63+63 string 1360*1134*35*25 PVCQ107    3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female  connector 30A  pallet plus a box
MK320W24V126M182 320 37.17 8.58 43.28 9.03 Dicing  182 *60.6MM63+63 string 1360*1134*35*25 PVCQ107    3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female  connector 30A  pallet plus a box
MK330W24V132M182 330 39.2 8.41 45.14 8.83 Dicing  182 *60.6MM66+66 string 1430*1134*35*25 PVCQ107    3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female  connector 30A  pallet plus a box
MK340W24V132M182 340 39.6 8.58 46.06 9.01 Dicing  182 *60.6MM66+66 string 1430*1134*35*25 PVCQ107    3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female  connector 30A  pallet plus a box
MK350W24V120M182 350 35.28 9.9 40.68 10.4 Dicing  182 *72.8MM60+60 string 1540*1134*35*25 PVCQ107    3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female  connector 30A  pallet plus a box
MK360W24V120M182 360 35.64 9.82 41.04 10.31 Dicing  182 *72.8MM60+60 string 1540*1134*35*25 PVCQ107    3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female  connector 30A  pallet plus a box
MK390W24V108M182 390 30.76 12.69 36.62 13.32 Dicing  182 *91MM54 string+54 string 1722*1134*35*35 SY033    Three body 20 A 4 Square photovoltaic line 30 CM 30A  pallet plus a box
MK400W24V108M182 400 31.18 12.83 37.04 13.47 Dicing  182 *91MM54 string+54 string 1722*1134*35*35 SY033    Three body 20 A 4 Square photovoltaic line 30 CM 30A  pallet plus a box
