Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Cell > Mirekold Energy Monocrystalline Solar Panel 182 Series 50 W 450W 560W China Factory Solar Panel

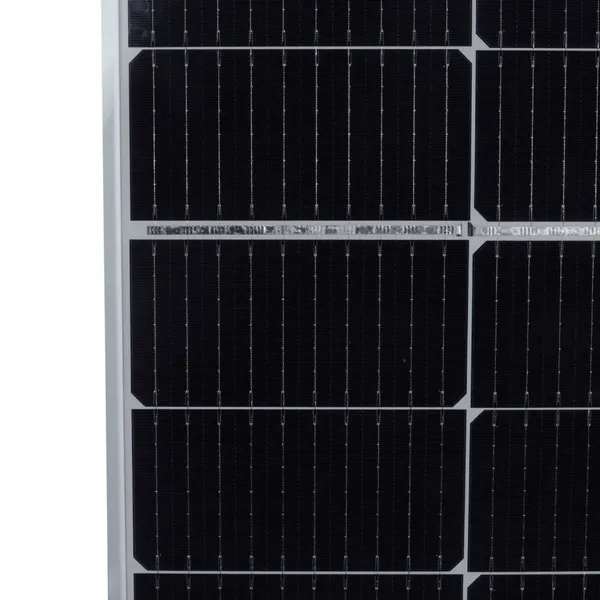

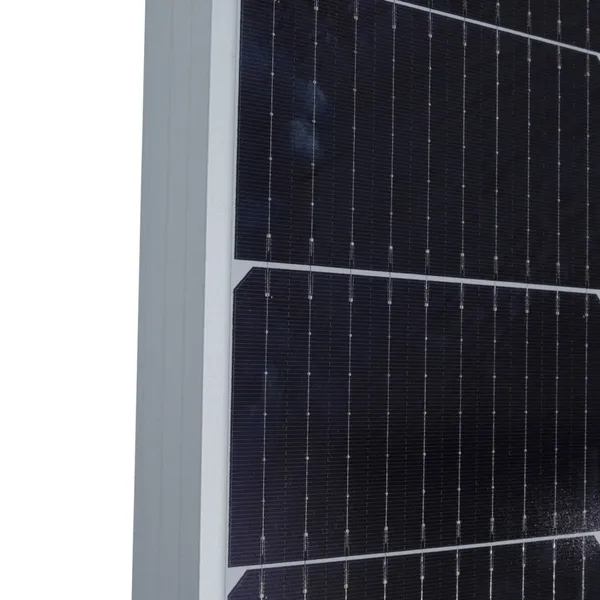

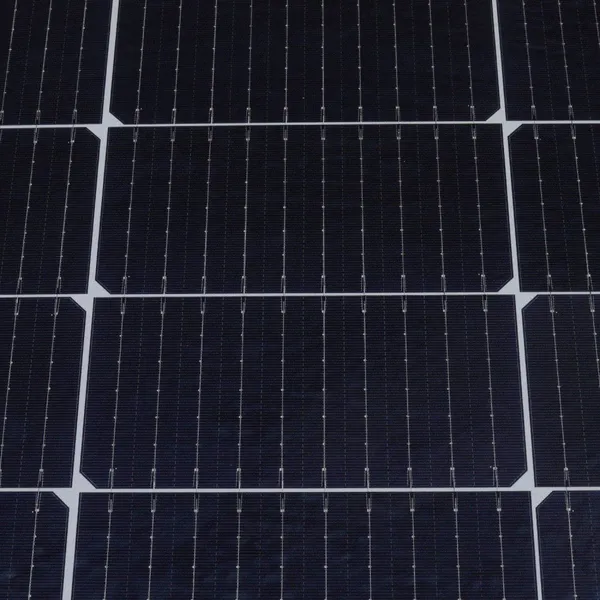

Mirekold Energy Monocrystalline Solar Panel 182 Series 50 W 450W 560W China Factory Solar Panel
US$ 0.09 - 0.12
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
Mirekold
Place of Origin:
China
Model Number:
MK650W24V132M210
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
15 days
Related Products
-
Mirekold Energy Monocrystalline Solar Panel 166 Series 450W 500W China Factory Solar PanelUS$ 0.09 - 0.12MOQ: 200 Pieces -
Mirekold High Quality 450W 480W 500W 550W Mono Half Cell 1000W Price 600 Watt Pv Module Solar PanelUS$ 0.09 - 0.12MOQ: 200 Pieces
-
Mirekold Hot Selling Price Jinko Tiger Pro Solar Panel P-type JKM535-555M-72HL4-BDVP Bifacial Module With Dual Glass 535W 555WUS$ 0.09 - 0.12MOQ: 200 Pieces
-
Mirekold Hot Sale 450w 182M/144 Solar Panel High Efficiency Full Black 550w Solar Panel With Favorable DiscountUS$ 0.09 - 0.12MOQ: 200 Pieces
-
Mirekold Hot Sale 72 Cells 4500W Polycrystalline Solar Panel With 25 Years WarrantyUS$ 0.09 - 0.12MOQ: 200 Pieces
Brand Name
Mirekold
Place of Origin
China
Model Number
MK650W24V132M210
Material
Monocrystalline Silicon
Size
1950*990*35*25
Max. Power
650
Number of Cells
66
| Peak power | Peak operating voltage | Peak operating current | open circuit voltage | short circuit current ) | 210Monocrystalline cells | Component size | Junction box specifications and models | Packing box | |
| W*L*H(mm) | |||||||||
| Company Abbreviation Power Watts Battery Voltage Volts Number of Cells Monocrystalline Cell Specifications | Pmax（W ) | Vmp ( V ) | Imp（A） | Voc（V) | Isc（A | Single crystal 210 *210Battery dicing specifications and string number | long *Width *Border height *Installation side width | Photovoltaic junction box model accessories description | regular packaging says |
| MK50W12V32M210 | 50 | 17.6 | 2.84 | 20.8 | 2.98 | Dicing 210 *35MM32 string | 450*640*25*20 | SY026 1*10Diode double hole without wire | 5Pieces in a carton without inner box |
| MK60W12V32M210 | 60 | 17.6 | 3.4 | 20.8 | 3.57 | Dicing 210 *42MM32 string | 450*740*25*20 | SY026 1*10Diode double hole without wire | 5Pieces in a carton without inner box |
| MK90W12V36M210 | 90 | 21.02 | 4.28 | 24.69 | 4.49 | Dicing 210 *52.5MM36 string | 680*700*25*20 | SY026 1*10Diode double hole without wire | 5Pieces in a carton without inner box |
| MK120W12V36M210 | 120 | 21.02 | 5.7 | 24.69 | 5.99 | Dicing 210 *70MM36 string | 680*900*30*25 | PVCQ107 3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female connector | 2Pieces in a carton without inner box |
| MK150W12V30M210 | 150 | 17.52 | 8.56 | 20.58 | 8.99 | Dicing 210 *105MM30 string | 680*1110*30*25 | PVCQ107 3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female connector | 2Pieces in a carton without inner box |
| MK180W12V36M210 | 180 | 21.02 | 8.56 | 24.69 | 8.99 | Dicing 210 *105MM36 string | 680*1320*30*25 | PVCQ107 3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female connector | 2Pieces in a carton without inner box |
| MK200W24V60M210 | 200 | 35.04 | 5.7 | 41.16 | 5.99 | Dicing 210 *70MM60 string | 680*1480*30*25 | PVCQ107 3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female connector | 30A pallet plus a box |
| MK300W24V60M210 | 300 | 35.04 | 8.56 | 41.16 | 8.98 | Dicing 210 *105MM60 string | 880*1640*35*25 | PVCQ107 3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female connector | 30A pallet plus a box |
| MK360W24V72M210 | 360 | 42.04 | 8.56 | 49.39 | 8.99 | Dicing 210 *105MM72 string | 880*1980*35*25 | PVCQ107 3 20 A Diode 90 CM4 flat photovoltaic line +MC4 Male and female connector | 30A pallet plus a box |
| MK650W24V132M210 | 650 | 38.08 | 17.06 | 45.01 | 18.08 | Dicing 210 *105MM66 string+66 string | 2384*1303*35*35 | Triple junction box model XC022X with cord MC4 Connector | 30A pallet plus a box |
| MK670W24V132M210 | 670 | 38.94 | 17.2 | 45.54 | 18.23 | 210*105MM66 string+66 string | 2384*1303*35*35 | Triple junction box model XC022X with cord MC4 Connector | 30A pallet plus a box |
Send Inquiry to This Supplier
Port of Shipment
shanghai, qingdao, hangzhou
Main Markets
North America, Oceania, Western Europe
