IEC60335-2-92/107 Figure103/102 Adult Foot Probe Test

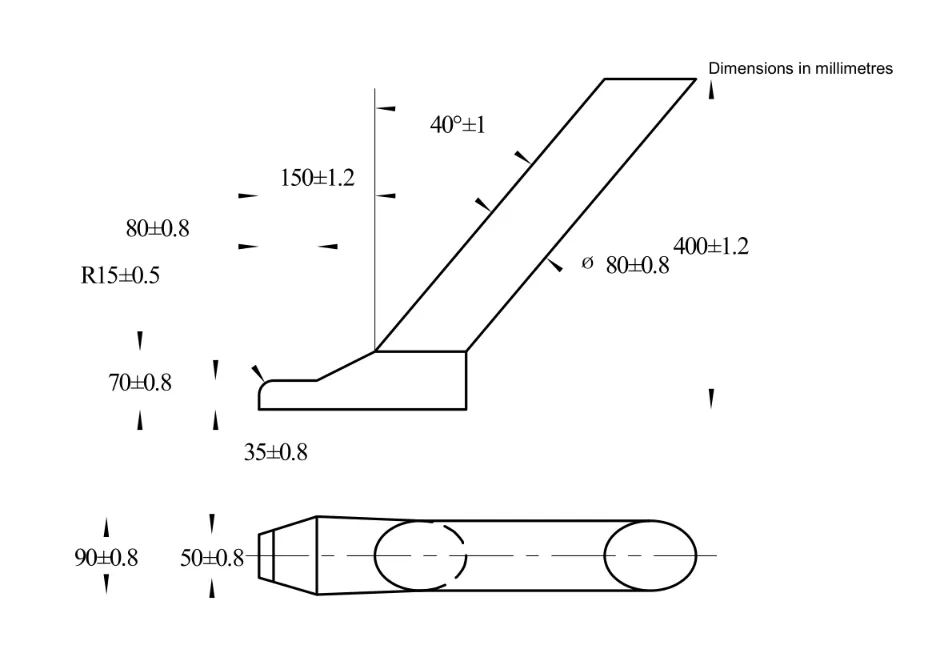

For the guards at the sides of the machine, compliance is checked by the following test using the foot probe(Figure 103) as illustrated in Figure 104.
The scarifier is placed on a hard flat surface, the guards or deflectors or both being in the normal operating position on the cutting means housing and the support members(wheels) in contact with the supporting surface. The test is conducted under static conditions.
Single axle scarifiers are to be positioned as instructed by the manufacturer or so that the handle grip is 900mm above the supporting surface.
The tests are made with the cutting means in the highest and lowest cutting position. The base of the test probe is held horizontally at any height and then inclined up to 15° forward or backward from the horizontal. The probe is applied at any point of the housing side.
The test probe shall not enter the path the cutting means assembly. The test probe shall not lift the scarifier or any of its parts from the supporting surface.
