IEC60335-2-9 Figure 103 ,IEC60335-2-6 Figure 101 Unpolished Aluminium Vessels With Lids for Hotplates and Hob Elements Test

Name: IEC60335-2-9 Figure 103 ,IEC60335-2-6 Figure 101 Unpolished Aluminium Vessels With Lids for Hotplates and Hob Elements Test
Brand: JUSDATEST
Availability: InStock

FOB Price

US$ 280 - 300 / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsT/T
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	JUSDATEST		Place of Origin	China
Model Number	JSD-VA

Product Description

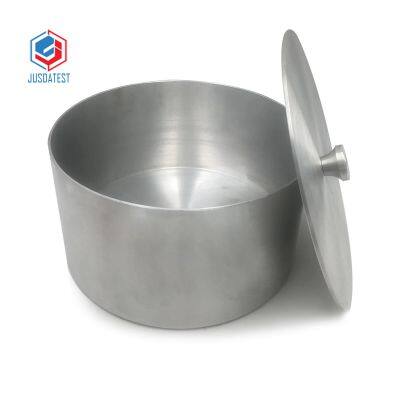

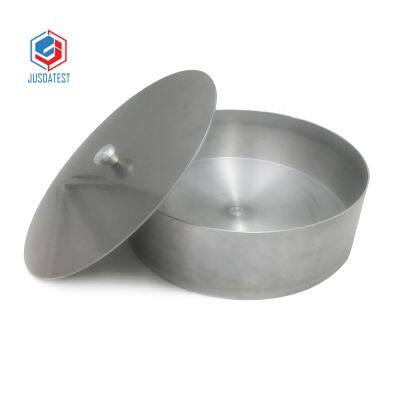

IEC60335-2-9 figure 103 ,IEC60335-2-6 Figure 101 Unpolished Aluminium Vessels with Lids for Hotplates and Hob Elements Test

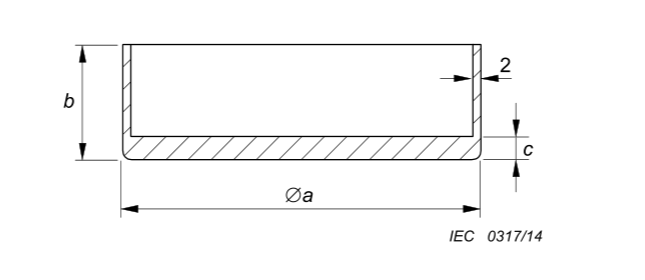

Hotplates, other than induction hotplates, are operated with vessels containing water. The vessels are made of unpolished commercial quality aluminum, have a flat bottom and are covered with a lid. A suitable vessel is specified in Figure 103. controls are adjusted to their highest setting until the water boils and then adjusted so that the water simmers. Water is added to maintain the level during simmering.

For all hotplates, the diameter of the bottom of the vessel is approximately equal to the diameter of the cooking zone and the quantity of liquid is specified in Table 101. The vessel is positioned centrally on the cooking zone.

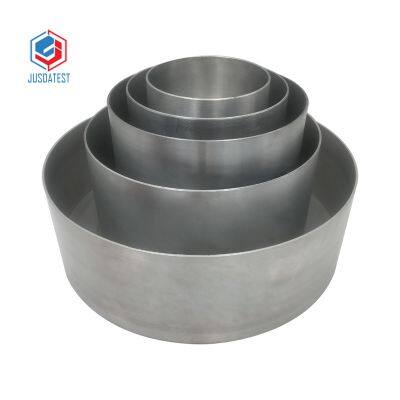

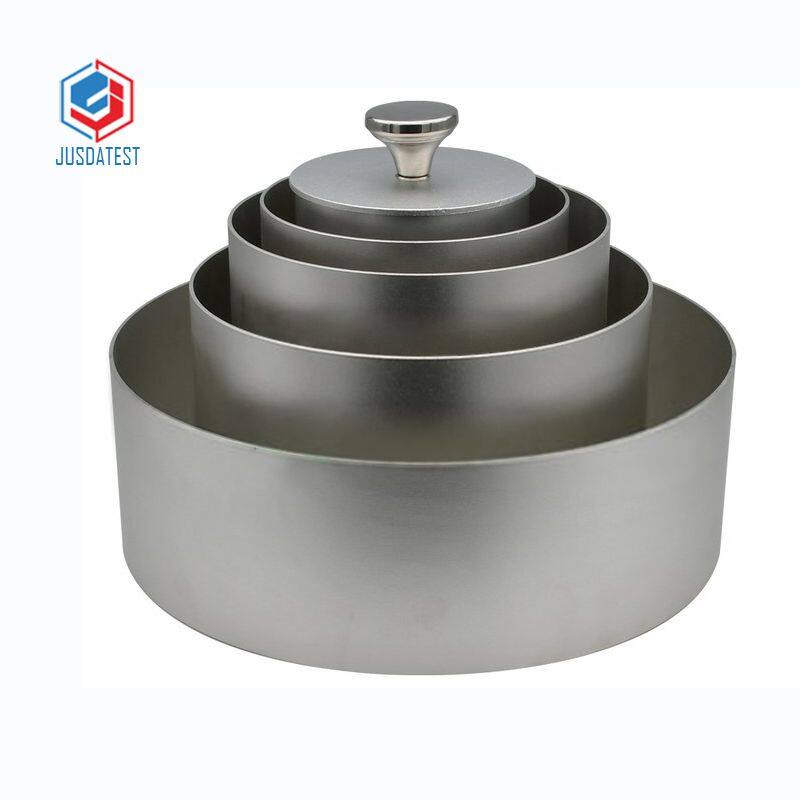

One set includes Ф110 mm, Ф145 mm, Ф180 mm, Ф220 mm, Ф300mm, total 5 pcs.

Technical Parameters:

Diameter of cooking zone mm	Approximate dimension
Diameter of cooking zone mm	a mm	b mm	c mm
≤110	110	140	8
＞110≤145	145	140	8
＞145≤180	180	140	9
＞180≤220	220	120	10
＞220≤300	300	100	10
