UL60335-2-24 Figure 101.DVA.2 Articulate Probe with Flat and Cone Shaped Simulate as Children's Hand 10.5-11.5 Year Age
Product Overview:

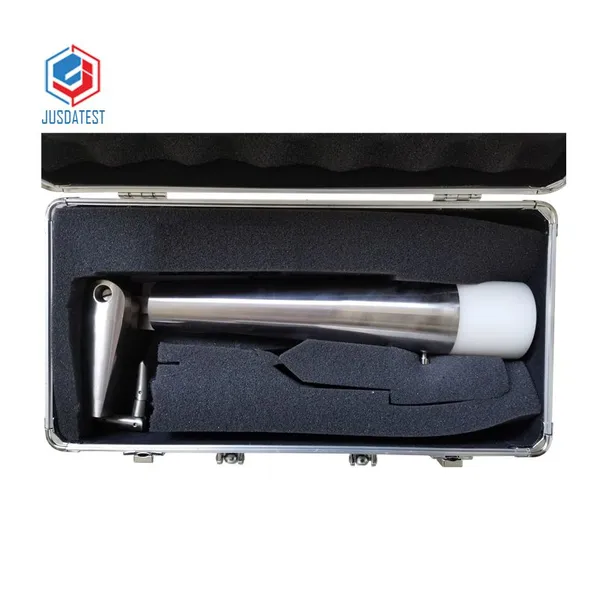

This articulate probe meets the requirements of UL 60335-2-24 figure 101.DVA.2. It is used for hazard assessment for moving parts of refrigeration or similar products, the moving parts should not cause personal injury when touched by children's hand between 10.5 to 11.5 years old. One set includes two pieces.

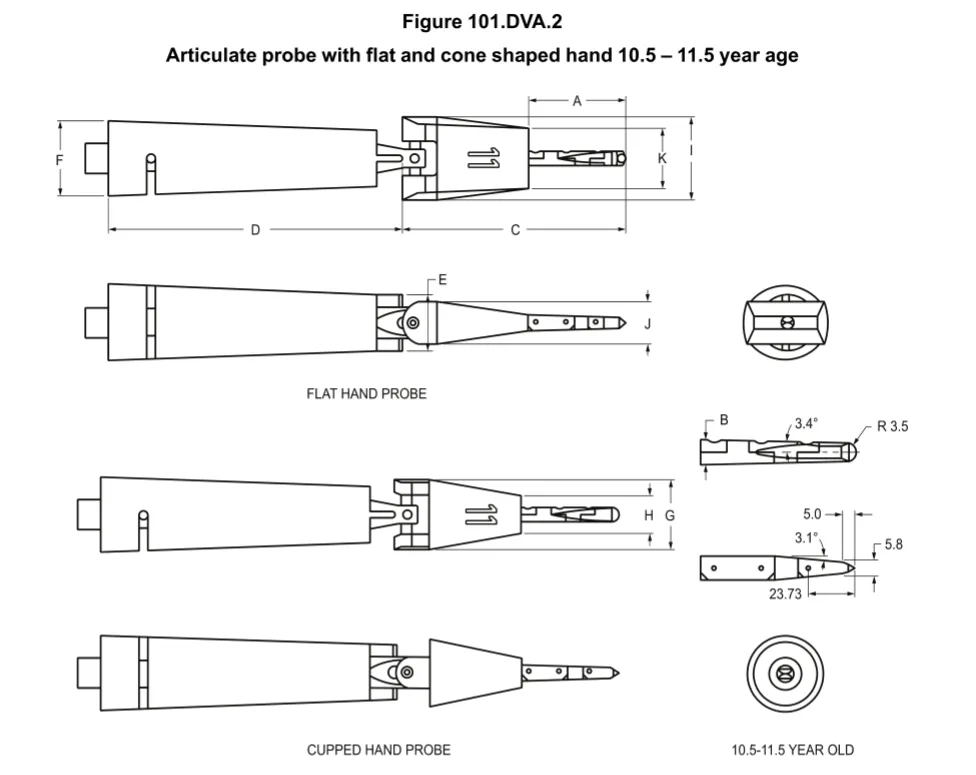

Dimension:
Item |
Dimension Description |
Dimension mm |
A |
Middle finger length, 95 percentile |
77 |
B |
Middle finger diameter, 5 percentile |
11.4 |
C |
Hand Length, 95 percentile |
173 |
D |
Elbow to wrist length, 95 percentile |
235 |
E |
Wrist diameter (circumference divided by pi), 5 percentile |
37 |
F |
Forearm diameter (circumference divided by pi), 5 percentile |
57 |
G |
Minimum hand CLEARANCE (cone shaped hand part) , 5 percentile |
49.4 |
H |
Cone shaped part at finger attachment |
25 |
I |
Hand breadth (flat hand part), 5 percentile |
62 |
J |
Wrist breadth (used for the hand thickness-flat hand part) , 5 percentile |
29 |
K |
Hand breadth at finger attachment (flat hand part) |
46 |
L |
Upper arm length, 95 percentile |
a |
