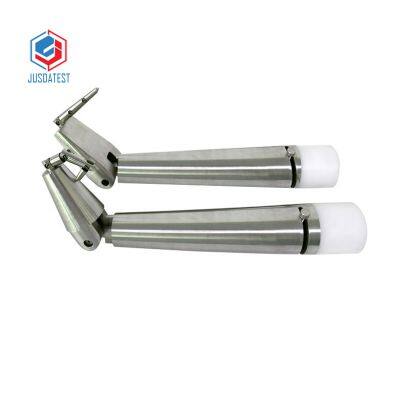

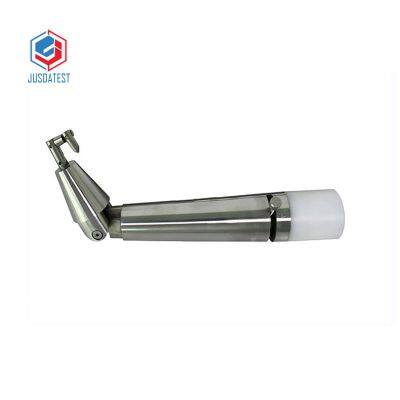

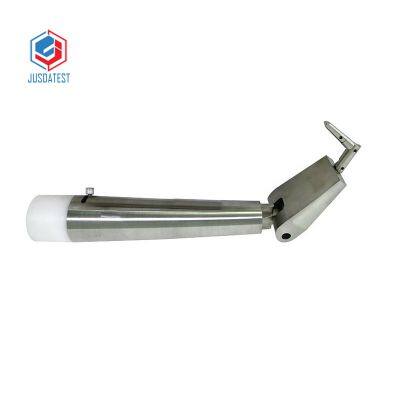

UL60335-2-24 Figure 101.DVA.1 Articulate Probe with Flat and Cone Shaped Children's Hand 3.5-4.5 Year Age for Moving Parts
This articulate probe meets the requirements of UL 60335-2-24 figure 101.DVA.1. It is used to for hazard assessment for moving parts of refrigeration or similar products, the moving parts should not cause personal injury when touched by children’s hand between 3.5 to 4.5 years old. one set include two pieces
Application:
When evaluating potential pinch points, the probes of Figure 12DV, of the Part 1, Figure 101.DVA.1 and Figure 101.DVA.2 cannot penetrate the opening, or the maximum force exerted by the moving part onto the probe is less than 22.2 N (5 lbf) at any location accessible by the probe.

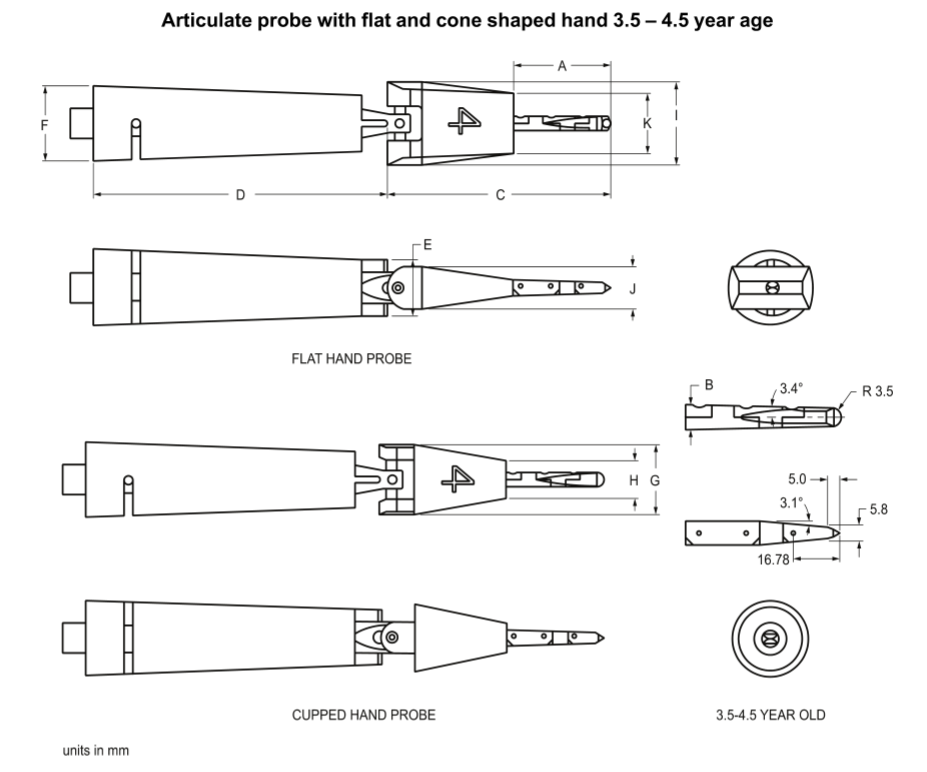

Item |
Dimension Description |
Dimension mm |
A |
Middle finger length, 95 percentile |
55 |
B |
Middle finger diameter, 5 percentile |
9.1 |
C |
Hand Length, 95 percentile |
125 |
D |
Elbow to wrist length, 95 percentile |
165 |
E |
Wrist diameter (circumference divided by pi), 5 percentile |
32 |
F |
Forearm diameter (circumference divided by pi), 5 percentile |
46 |
G |
Minimum hand CLEARANCE (cone shaped hand part) , 5 percentile |
39.1 |
H |
Cone shaped part at finger attachment |
20 |
I |
Hand breadth (flat hand part), 5 percentile |
48 |
J |
Wrist breadth (used for the hand thickness-flat hand part) , 5 percentile |
24 |
K |
Hand breadth at finger attachment (flat hand part) |
36 |
L |
Upper arm length, 95 percentile |
a |
