Industrial CNC Milling Machine, Production, Machine Center for Steel, Stainless

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Vertical

Condition:

New

CNC or Not:

CNC

Yornew Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Type Vertical

Condition New

CNC or Not CNC

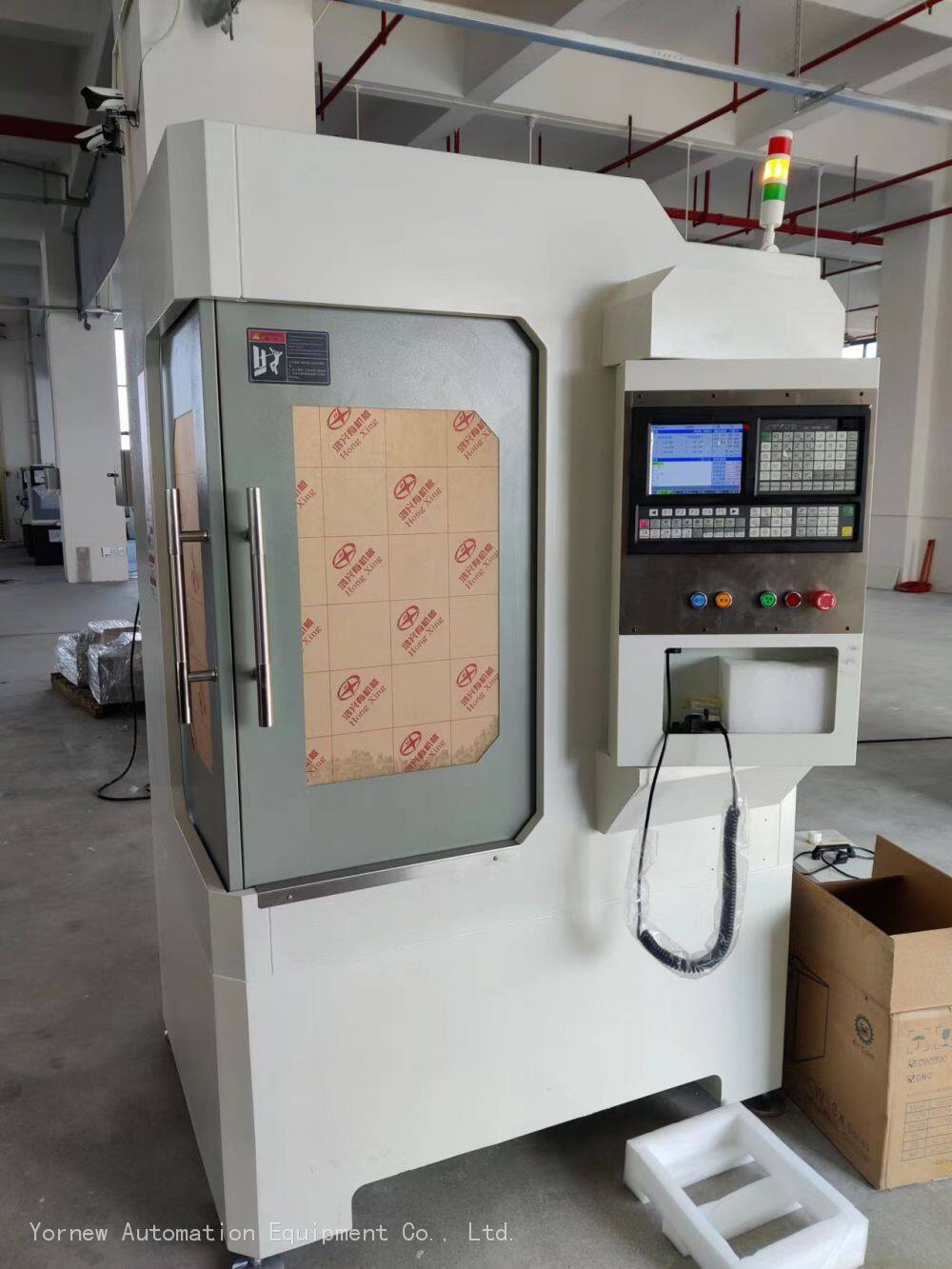

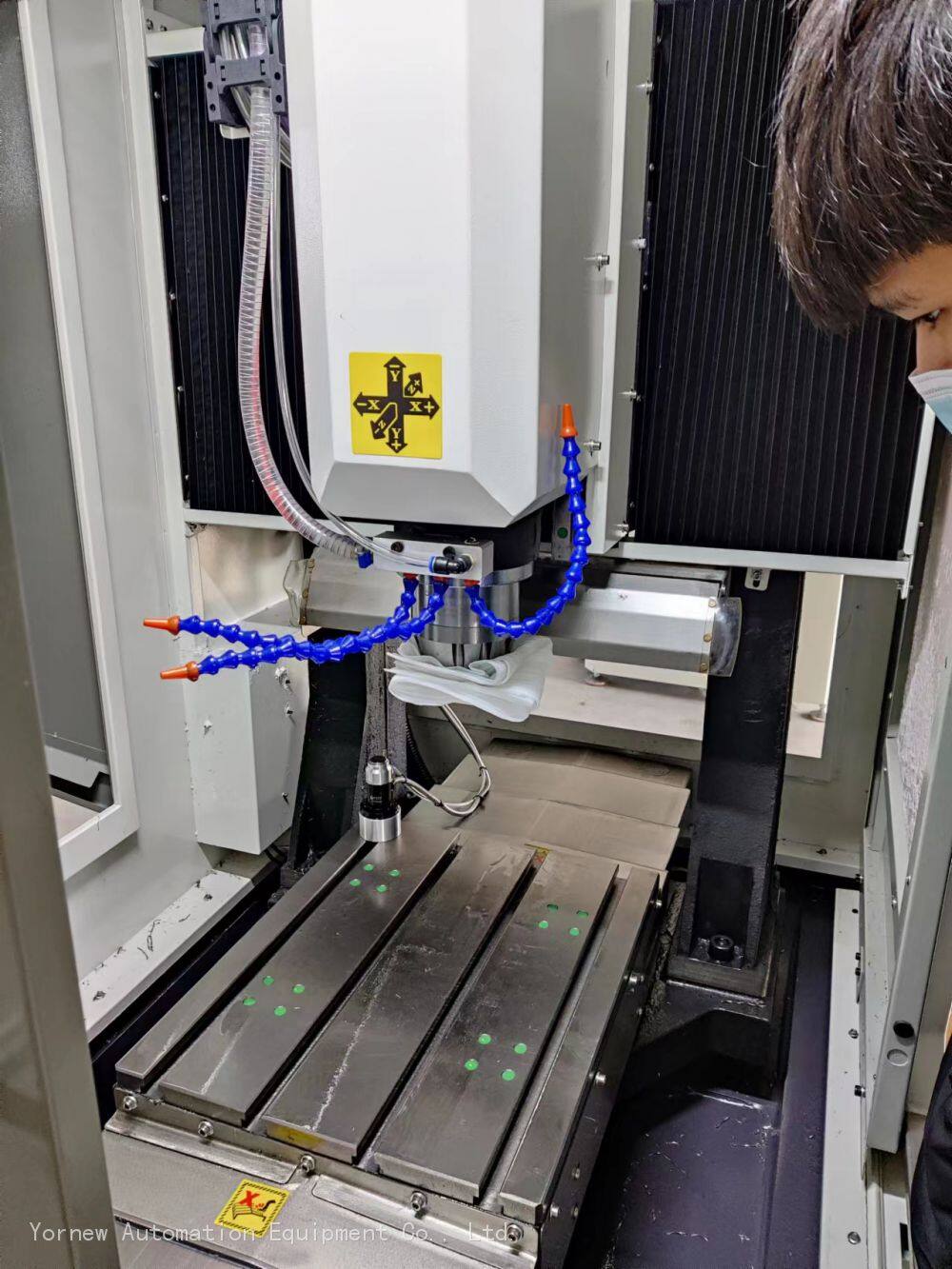

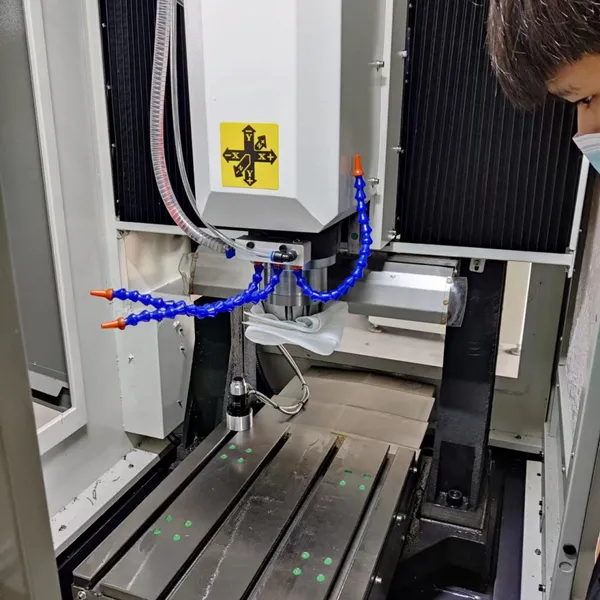

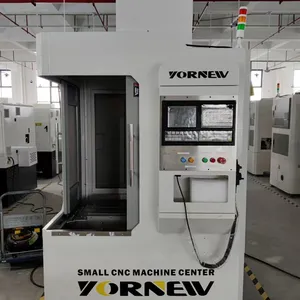

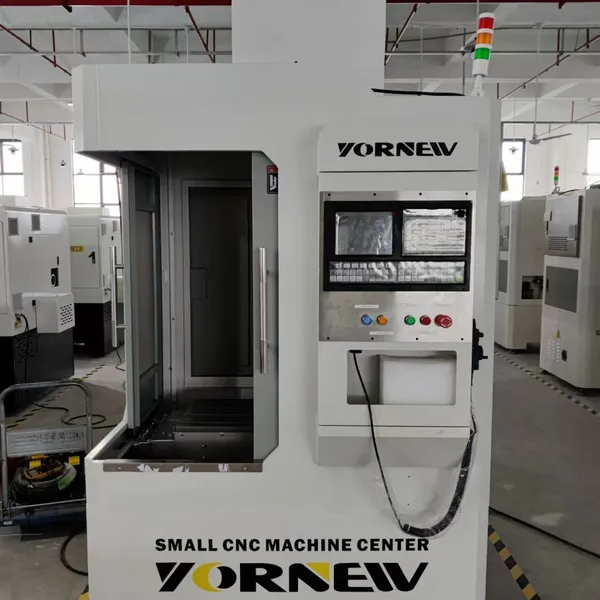

MX400 Small CNC Drilling & Milling Center
Item	Unit	MX400
Outlook	/
Inner	/
Spindle type		Mechanical		Mechanical		High-speed
Max Spindle Speed	rpm	5000		9000		30000
Spindle Power	Kw	2.6	3.8	2.6		4.5
Spindle Taper		BT30
Repeat positioning accuracy	mm	±0.01
X Axis Travel	mm	400
Y Axis Travel	mm	500
Z Axis Travel	mm	200
Motor Power(X/Y)	Kw	0.75 AC Servo
Motor Power(Z)	Kw	1.2 AC Servo
Rapid feed rate(X/Y)	Mm/min	35000
Rapid feed rate(Z)	Mm/min	25000
Cutting feed rate	Mm/min	10000
ATC tool number		8
Pneumatic supply	MPa	0.5
Collet chuck		ER25
Tool DIA. range	mm	1-16
Transmission		Taiwan P grade Ball Screw
Guide rail		Taiwan High-precision C3 linear guide rail
Table size	mm	*400500**
Max. Load	Kg	200
Power supply		3 phase 380V
Weight	kg	2000/2100
Machine Size	Mm	*140011002000*
Packing Size	Mm	*155013502250*
4^th axis (optional)	Mm	Φ125			Φ170
5 axis table (optional)	Mm	Φ160
