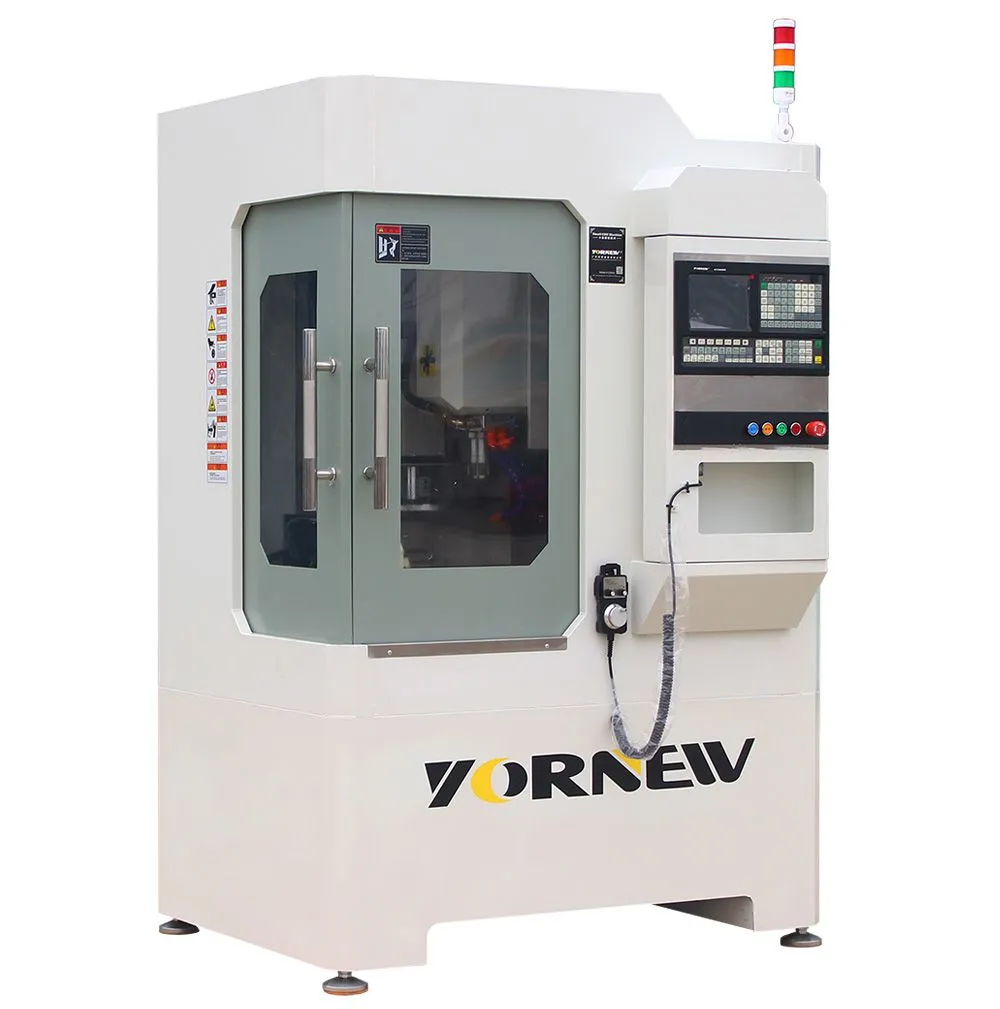

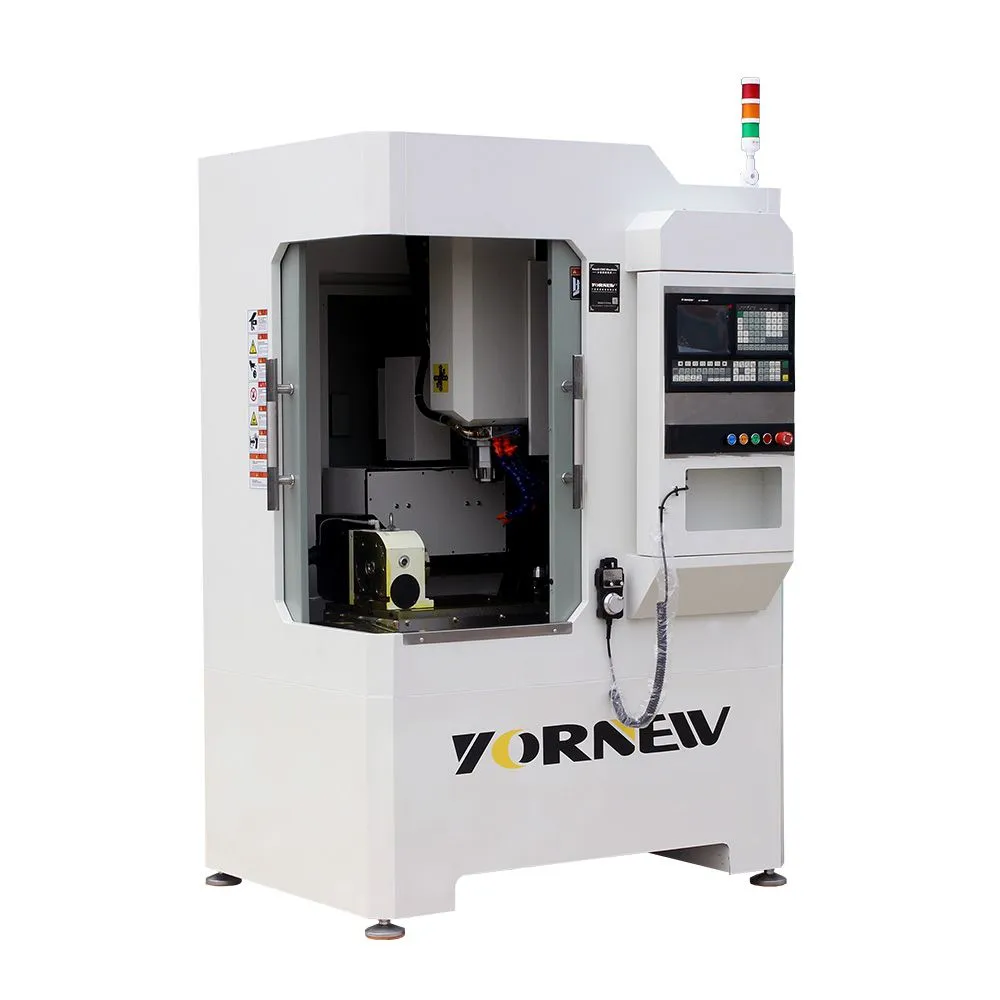

MX400 Small CNC Drilling & Milling Center

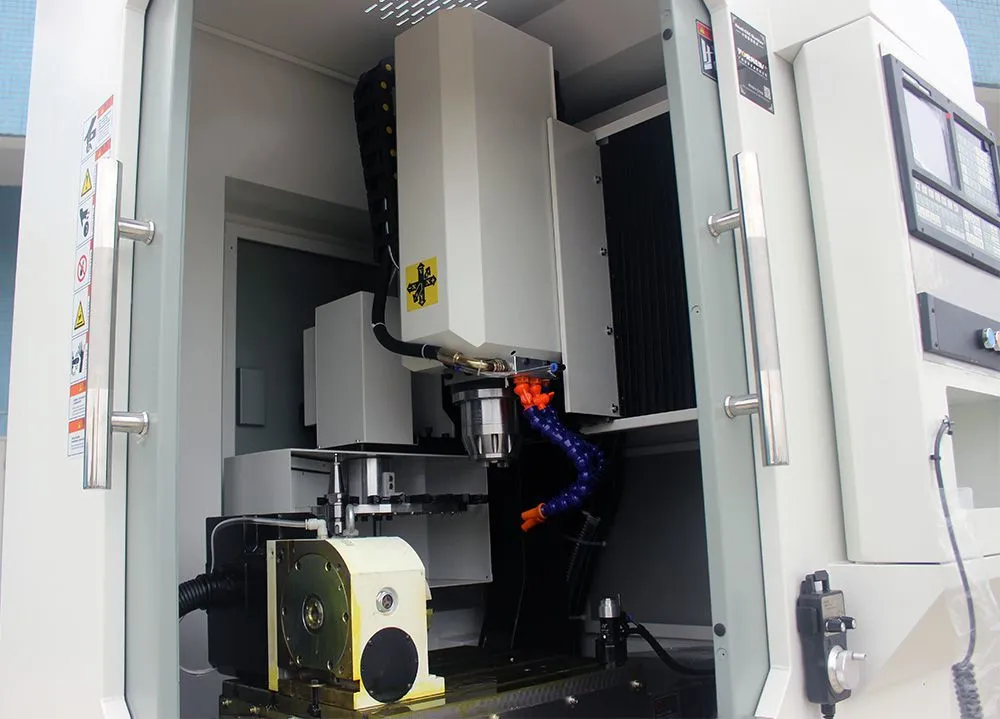

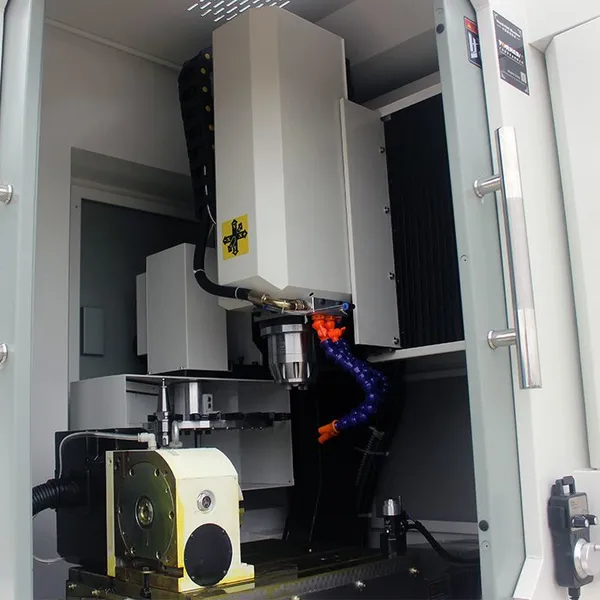

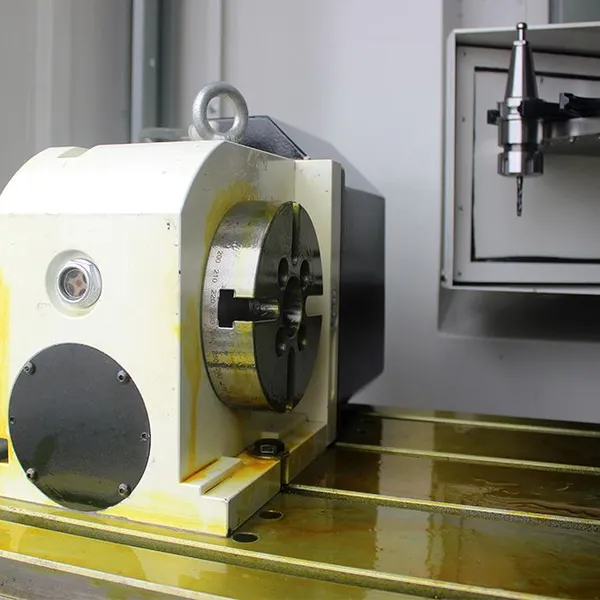

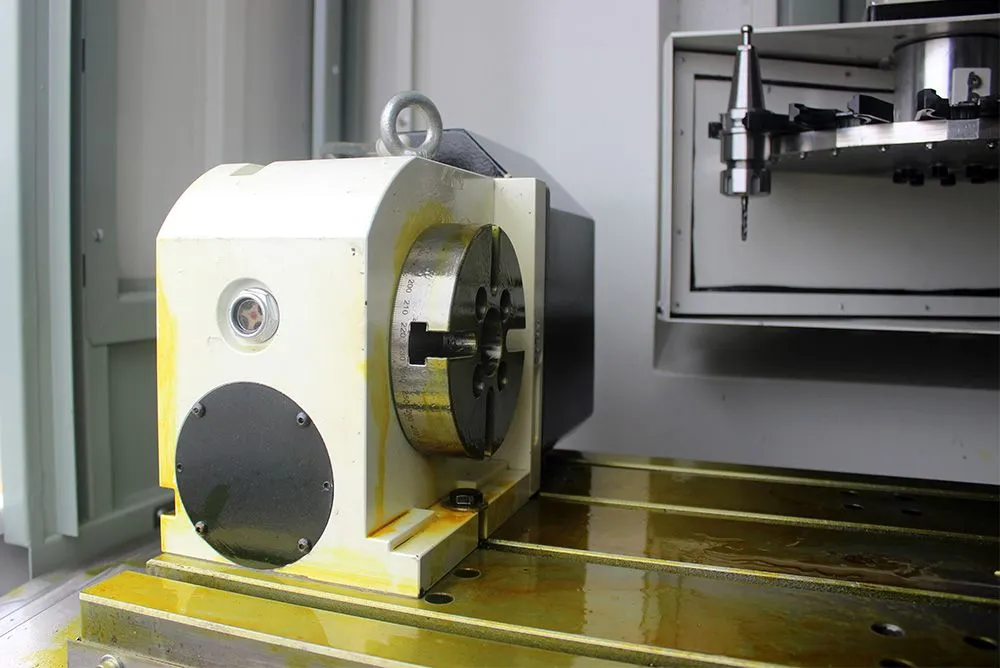

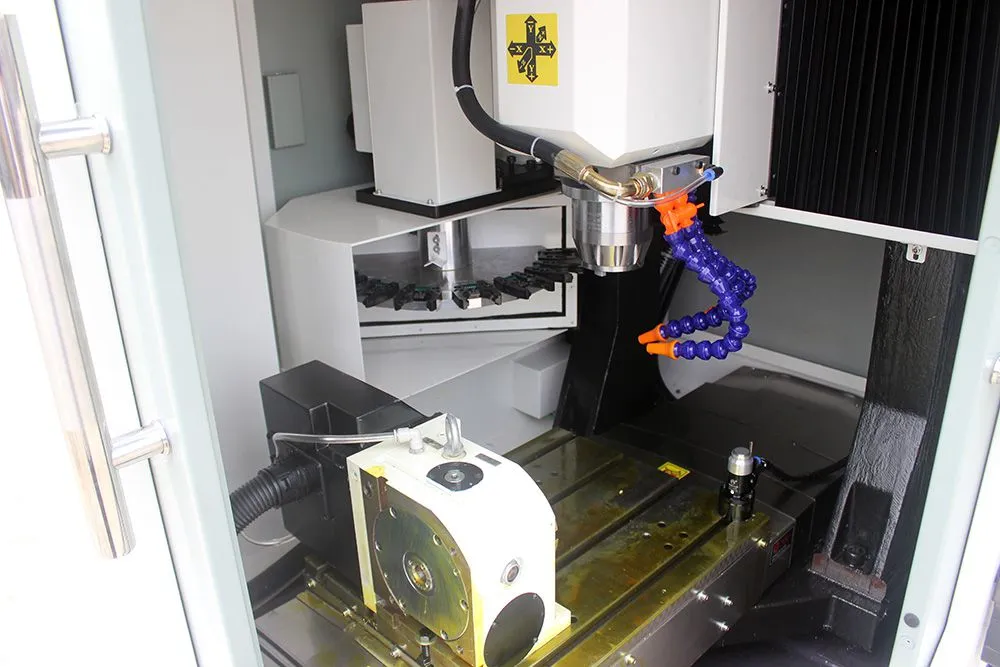

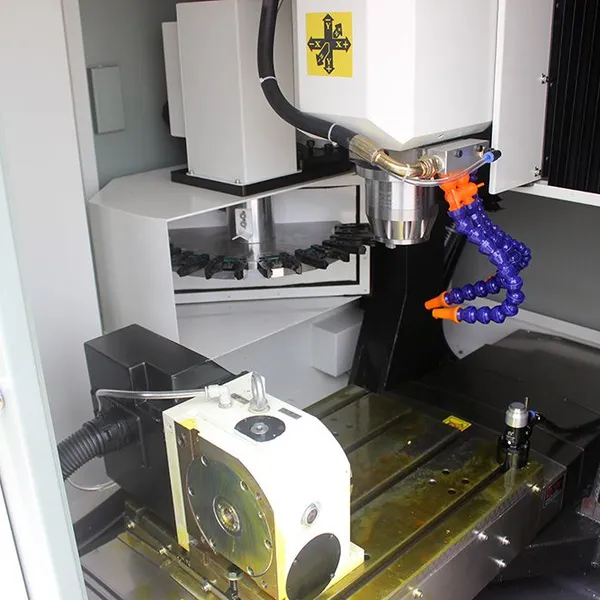

MX400 Small Drilling & Miling Center, with high performance 4 axis milling CNC controlle,support multi languageinterface display,the standard spec includes MpG hand wheel.Selection of high -quality casting materials,High-precisionlinear guide and ballscrews, XYZ axis motor type are AC servo motor(optional 4th axis).with the flood coolant,automaticLubrication system,BT30 spindle type.The MX400 has a higher speed spindle (6000rpm or 24000rpm).It is suitable for 8-station processing of copper, iron, aluminum, and stainless steel workpieces with in 500mmX400mm.The operation is compatible with the general machining center in the market and supports driling, tapping, milling.enaraving, and other functions. Using such as high rigidity and antl-deformatlon structure, it is suitable for processincstainless steel parts with tapping within 8mm and drilling within 10mm
|
Technical parameters | ||||
Spindle type |
Unit |
Fmachinery |
High-speed |
|
Max Spindle Speed |
rpm |
6000 |
24000 |
|
Spindle Power |
Kw |
3 |
4.5 |
|
Spindle Taper |
BT30 |
|||
Repeat positioning accuracy |
mm |
±0.01 |
||
XAxis Travel |
mm |
400 |
||
YAxis Travel |
mm |
500 |
||
Z Axis Travel |
mm |
200 |
||
Motor Power(X/Y) |
Kw |
0.75 AC Servo |
||
Motor Power(Z) |
Kw |
1.2 AC Servo |
||
Rapid feed rate(X/Y) |
mm/min |
35000 |
||
Rapid feed rate(Z) |
mm/min |
25000 |
||
Cutting feed rate |
mm/min |
10000 |
||
ATC tool number |
8 |
|||
Pneumatic supply |
MPa |
0.6 |
||
Collet chuck |
ER25 |
|||
Tool DIA. range |
mm |
1-16 |
||
Transmission |
Ball Screw |
|||
Guide rail |
High-precision linear guide rail |
|||
Table size |
mm |
400*500 |
||
Max. Load |
Kg |
200 |
||
Power supply |
3 phase 380V |
|||
Weight |
kg |
2000/2100 |
||
Machine Size |
mm |
1400*1400*2000 |
||
Packing Size |
mm |
1640*1600*2300 |
||
