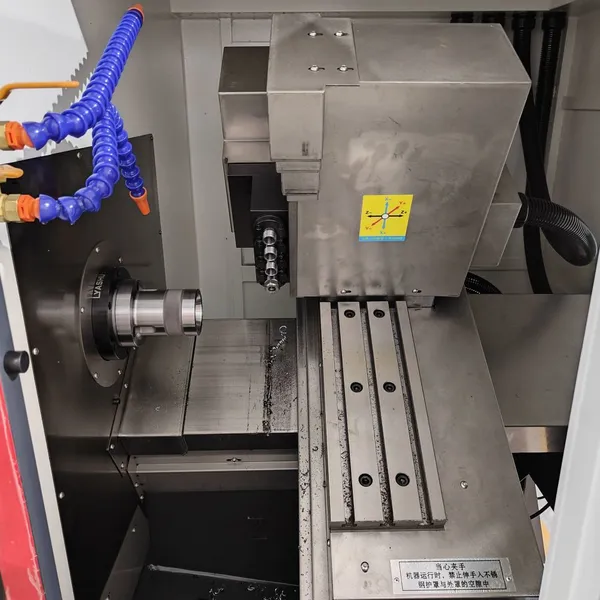

Industrial CNC Lathe, Turning, Milling, Combination Machine, Hydraulic Collet
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other
Condition:
New
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Industrial CNC Milling Machine, Production, Machine Center for Steel, StainlessNegotiableMOQ: 1 Set -
Industrial CNC Milling Machine, Production, Machine Center for Steel, StainlessNegotiableMOQ: 1 Set
-
Industrial CNC Milling Machine, Production, Machine Center for Steel, StainlessNegotiableMOQ: 1 Set
-
Industrial CNC Milling Machine, Production, Machine Center for Steel, StainlessNegotiableMOQ: 1 Set
-
Industrial CNC Milling Machine, Production, Machine Center for Steel, StainlessNegotiableMOQ: 1 Set
Type
Other
Condition
New
CNC or Not
CNC
Technical parameters | |||
Max Spindle Speed |
rpm |
3500（4000 max) |
|
Finish after machining |
1.6Ra |
||
Spindle hole |
mm |
25 |
|
Repeat positioning accuracy |
mm |
±0.01 |
|
Unilateral cutting amount |
mm |
2mm (3mm max) |
|
Spindle Power |
kw |
2.2Kw Servo motor |
|
X/Z Axis Motor |
1.2Kw Servo motor |
||
Y Axis Motor |
1.2Kw Servo motor |
||
Power head |
3 tools standard |
4 tools optional |
|
X Axis Travel |
mm |
500 |
|
Z Axis Travel |
mm |
180 |
|
Fast feed rate |
m/min |
20m/min (30m/min max) |
|
Clamping Diameter |
mm |
Hydraumaticφ40mm (φ50 max) |
|
Cutting Feed Rate |
mm/rev |
0.001-500 |
|
Cutting Length |
mm |
180 |
|
Cutting Length With Lathe Center Frame |
mm |
120 |
|
Machine Bed Inclination |
° |
30 |
|
Controller |
KY |
Yornew Industrial CNC Controller |
|
Ball Screw |
Taiwan P4 |
||
Linear Guide |
Taiwan P4 Linear Guide rail |
||
Weight |
kg |
1800-2200 |
|
Machine Size |
Mm |
1700*1200*1800 |
|
Packing Size |
Mm |
1950*1300*2050mm |
|
