Electronic Universal Testing Machine

Electronic Universal Testing Machine

 function：WDW series testing machine,Meet the physical performance tests of materials such as tension, compression, and bending.

scope of application：Non metallic materials such as plastics, films, wooden boards, textiles, banana peels, etc。It also meets the testing of metal materials with strength below 300kN.

Basic parameters：

1 Max test force 1kN-5kN 10kN 20kN 30/50kN 100kN-300kN（Multiple options available）

2 Test range 0.4%--100%

3 Test accuracy ±0.5%

4 Test force division six

5 Measurement accuracy of beam displacement More than 0.025mm

6 Deformation measurement accuracy ±0.5%（From 0.2 to 10mm）

7 Test speed range 0.01 -- 500mm/min, stepless speed regulation

8 Velocity control accuracy ±1%

9 Constant force, constant deformation, constant displacement control range 0.2%-100% FS

10 Constant force, constant deformation, constant displacement control accuracy When the set value is <10%FS, the set value is within ±1.0%;

When the set value is ≥10%FS, the set value is within ±0.1%

11 Control accuracy of deformation rate When the rate is less than 2%FS, it is within the set value of ±2.0%;

When the rate is ≥2%FS, it is within the set value of ±0.5%

12 Test space A: tensile space :600mm

                    B: compression space :600mm

C: width space: 400mm

13 Power supply 1 phase, 220V, 50Hz

14 Work environment Room temperature - 35℃, relative humidity does not exceed 80%

15 Host machine size 760×520×1950mm

16 Weight 550kg

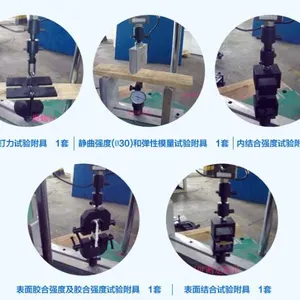

The shipment includes: 1 set of computer printer, 1 set of testing machine host, 1 set of stretching tooling, and 1 set of compression tooling. A set of English software (pre installed)
