The YORNEW Desktop CNC Milling Machine is the proven desktop machining solution perfect for prototyping in aluminum, other soft metals, plastics, and other materials. Iterate fast with a CNC machine right at your desk.
With additional course content, how-to projects, and a robust support team, the YORNEW Tools Desktop CNC Machine is a great STEAM tool to skill up on CNC machining. It’s an excellent addition to any shop, lab, classroom, studio, or makerspace.
Features
(1).Automatic 4 positions tool post.
(2).KY 980Tc Turning CNC System
(3). ARM 9 CPU+FPGA,Support B macro function,PLC function,Mutil-language library function.
(4).Lathe CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas.
(5). The standard spec includes MPG hand wheel.
(6). USB and RS232 port, DNC function of USB.
(7). Control speed of G code.
(8). Selection of high -quality casting materials,more compact.
(9). A collection of double-nut ball screw, bearings and couplings with high precision positioning, while adding an automatic oil lubrication system, to protect your machine precision, extended service life.
(10). 220VAC or 110VAC single-phase AC power supply.
(11). Safety electrical components of high quality.
(12). Auto power off when door open.
(13). Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.
Technical parameters | |
|---|---|
| Turning diameter over bed(max) | 140mm |
| Travel across slide | 75mm |
| Chuck diameter | 80mm |
| Spindle speed | 100-2000r/min(control speed of G code) |
| Spindle through-hole | 11mm |
| Spindle mount | MT2 |
| Spindle motor power | 150W |
| X travel | 70mm |
| Z travel | 160mm |
| The max moving speed | 2000mm/min |
| The max feeding speed | 1000mm/min |
| Control system | KY 980Tc Turning CNC System |
| Tool position | 4 |
| Tool dimension | 8×8mm |
| Tailstock taper | MT1 |
| Tailstock sleeve diameter | 20mm |
| Travel of tailstock | 25mm |
| Positioning accuracy | 0.02mm |
| Repeatability accuracy | 0.02mm |
| Power | 220VAC / 110VAC |
| Weight(NW/GW) | 50/65KG |

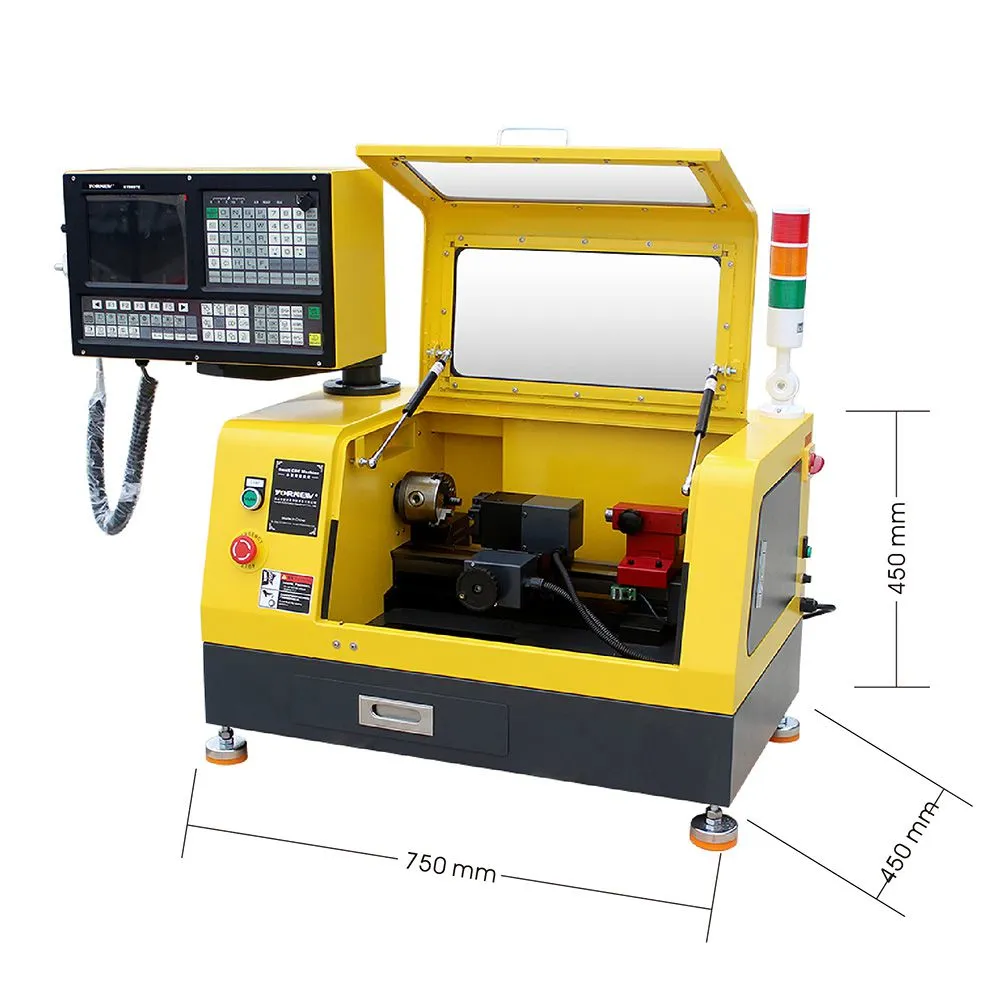

| Overall dimension | 750*450*450mm |
| Packing size | 850*470*470mm |
