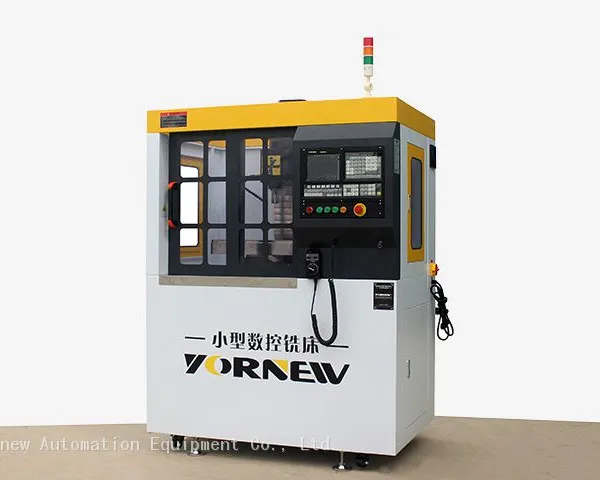

XK300A CNC milling machine of 4-axis
Features
(1). Milling CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas
(2). High performance 4 axis cnc milling controller,KY1000MC CNC Controller ,Optional siemens 808D or GSK980MDc cnc controller.
(3). KY1000MC can control 5 feed axes(including C axis), 2 analog spindles, 1ms high-speed interpolation, 0.1μm control precision, which can obviously improve the machining efficiency, precision and surface quality.
(4). X, Z, Y, 4th, 5th ; axis name and axis type of Y, 4th, 5th can be defined,1ms interpolation period, control precision 1μm, 0.1μm,Max. speed 60m/min（up to 24m/min in 0.1μm）,Adapting to the servo spindle to realize the spindle continuously positioning, rigid tapping, and the rigid thread machining,Built-in multi PLC programs, and the PLC program currently running can be selected Statement macro command programming, macro program call with parameter,Metric/inch programming, automatic toolsetting, automatic chamfer, tool life management function,Chinese, English display can be selected by parameters,USB interface, U disc file operation, system configuration and software.
(5). The standard spec includes MPG hand wheel.
(6). By MPG handwheel convenient electronic control of each axis of movement.
(7). Selection of high -quality casting materials,more compact.
(8). A collection of double-nut ball screw, bearings and couplings with high precision positioning, while adding an automatic oil lubrication system, to protect your machine precision, extended service life.
(9). 220VAC or 110VAC single-phase AC power supply.
(10). Safety electrical components of high quality and fast plug.

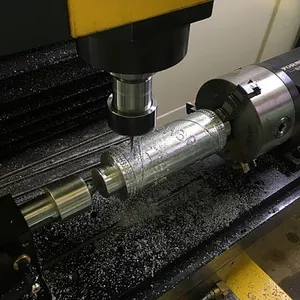

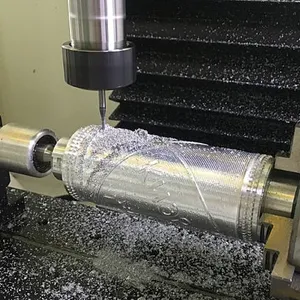

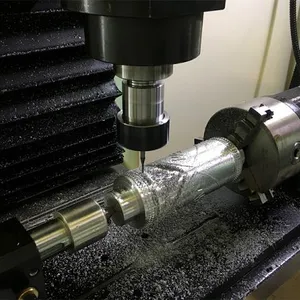

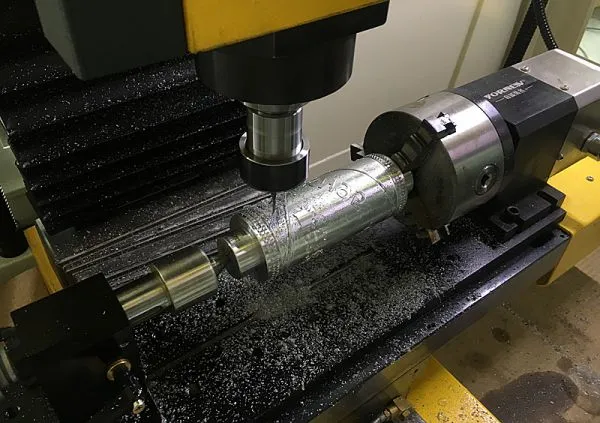

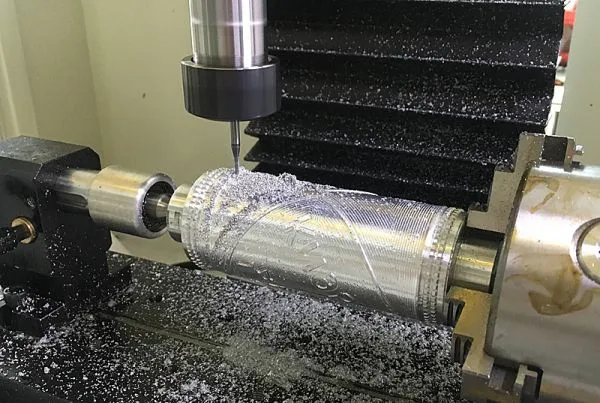

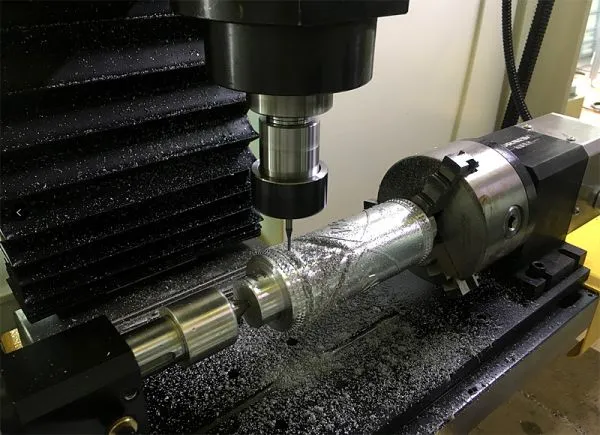

(11). Pre-installed fourth axis fast interface.
(12). With sink and nozzles.
(13). Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.
Technical parameters | |
|---|---|
| X axis travel | 300mm |
| Y axis travel | 175mm |
| Z axis travel | 270mm |
| A axis Rotate | 360°(optional) |
| Table size | 450*160mm |
| Spindle taper | BT30 |
| Tool DIA. range | 4-16mm |
| T slot (amount*width) | 3*12mm*43mm |
| Positioning accuracy | 0.03mm |
| Repeatability accuracy | 0.02mm |
| Control system | KY1000MC CNC Controller |
| Instruction | ISO G code |
| MPG hand wheel | 4 axis |
| Spindle motor | 1.1KW(2.2KW optional) |
| Spindle speed | 100-3500r/min(24000r/min optional) |
| The max moving speed | 2500mm/min |
| The max feeding speed | 1500mm/min |
| Power of X/Y | 4Nm/400W |
| Power of Z | 6Nm/750W |
| Transmission | ball screw |
| Max. load | 40kg |
| Table structure | Full cast iron |
| Power | 230/120V |
| Weight(NW/GW) | 500/550kg |
| Overall dimension | 1360*990*1800mm |
| Packing size | 1400*1050*2000mm |
