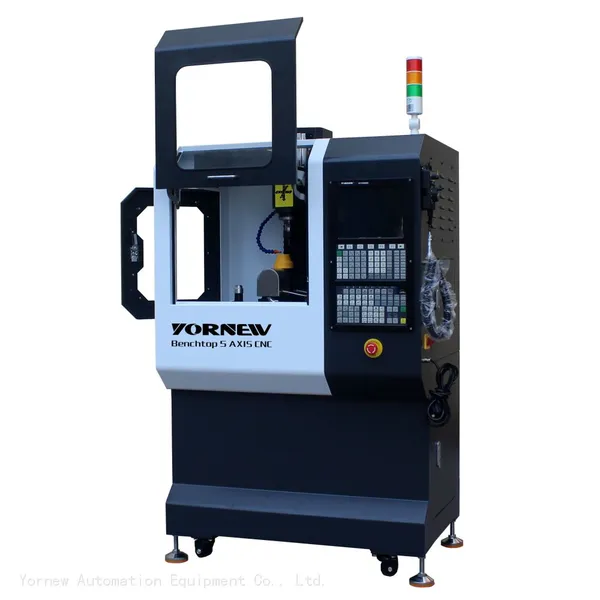

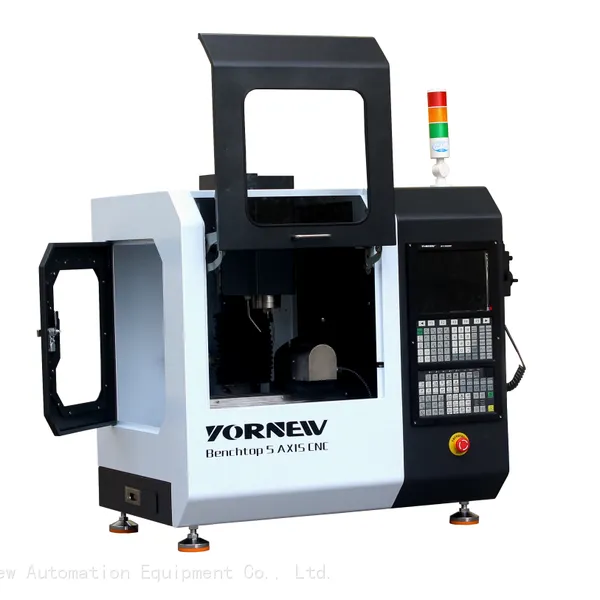

Product No: MX220Product Name: 5 axis Mini CNC Mill
Features
(1).The brand new MX220 is a powerful mini CNC machine that is quick to set up, easy to operate, very stable, highly dynamic, and requires very little maintenance.
(2).High performance 4 axis milling CNC controlle.
(3).Selection of high -quality casting materials,more compact.
(4).High-precision linear guide.
(5).X, Y, Z, A four axis micron level interpolation accuracy controlling;
(6).U disc/RS232COM etc many kinds of communication mode, to help users achieve different data transmission and software upgrades easily.
(7).Perfect self diagnosis function, internal and external status real-time display, alarm immediately when abnormal.
(8).Macro variable, macro definition programming,realizing a variety of logical relations. Support macro program with parameters ,convenient to the user programming
(9).DXF+G code template function, converting DXF automatically to G code for processing.
(10).With the automatic aligning instrument.
(11).Teaching function: Teaching+ simplified instruction programming,teaching methods in table format, that is simple and intuitive.
(12).Graphic simulation function: show the graphics of the processing program and the tool path of the actual operation, tool path simulation processing without controlling the operation of the machine , to exam if the preparation process is correct.
(13). Multi interface selection: support multi language interface display, automatic fault alarm. Processing information display,processing time, the number.
(14).10 inch super large colorful LCD screen.
(15).Applicable industry: Mini CNC mill is perfect for schools, small job shops, or as a second machine.
Technical parameters | |
Positioning accuracy |
0.02mm |
Repeatability accuracy |
0.01mm |
X axis travel |
220mm |
Y axis travel |
120mm |
Z axis travel |
200mm |

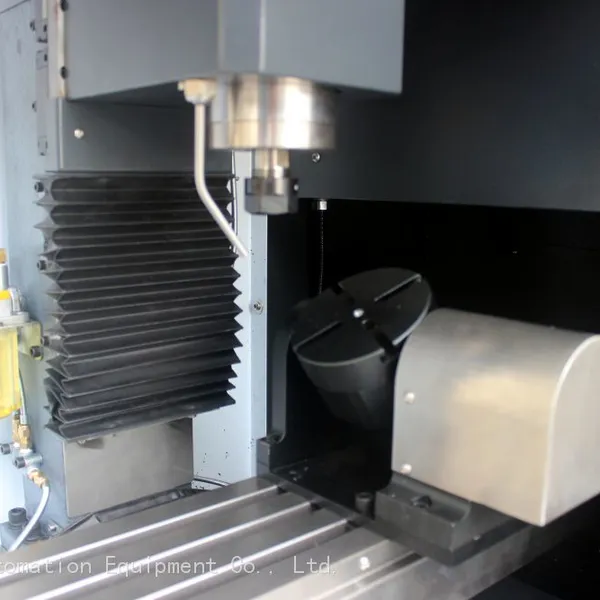

A axis Rotate |
360°(optiona axis) |
Tool DIA. range |
2-12mm |
Control system |
KY1000MC CNC Controller |
Instruction |
DXF+G code template function, converting DXF automatically to G code for processing |
MPG hand wheel |
5 axis |
Spindle motor |
2.2kw |
Spindle speed |
24000r/min |
The max moving speed |
2000mm/min |
The max feeding speed |
1000mm/min |
Transmission |
ball screw |
guide rail |
High-precision linear guide |
Table size |
460*130mm |
Max. load |
30kg |
Table structure |
Full cast iron |
Power |
220VAC / 110VAC |
Weight(NW/GW) |
180kg/220kg |
Overall dimension |
930×750×920mm |
Packing size |
970*850*1100m |
