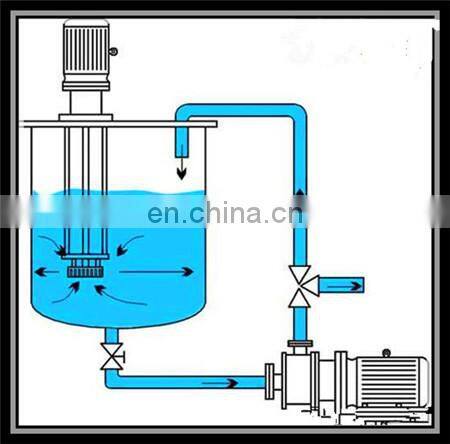

Homogeneous Vacuum Emulsifier mixer / vacuum mixing emulsifier

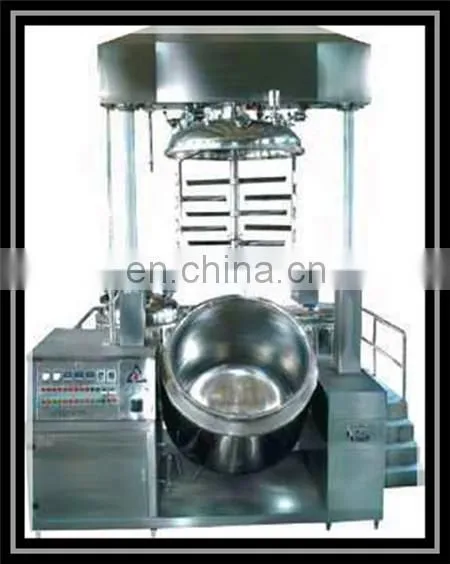

1. Provided with oil pressure lifting system, which can freely lift and lower the boiler cover and has such
functions as boiler tilting
2. The blending system adopts advanced triple blending and frequency conversion speed adjustment, so
ads to satisfy production of different technology requirement
3. Advanced homogenizer with unique structure and reliable sealing (the mechanical seal adopt Germany
Bergman product), and the emulsifying rotation speed of 0-3500 rpm (Taiwan’s teco frequency debugger)
4. Made of imported SUS304 or SUS316L stainless steel. The tank body and pipe are carried out mirror
polishing, which is in complete accordance with GMP standard
5. The vacuum defoaming can make the materials meet the requirement of being sanitary and aseptic.
The vacuum sucking material adopted can avoid dust, especially for the powder products
6. According to technological requirements, the tank can heat and cool the material. The heating method
can be chose to steam or electric heating according to customer requirements.
7. The advanced electric control system adopt PLC control, which is equipped with color touch screen to
completely supervise the data of material temperature, blending and homogenizing rotation speed and
time etc. and print out the above data...
| Model | main mixer | oil&water pre-mixers | dimensions | total power | heating method |
| GY-10 | 10 | 5/8 | 1700×1200×1100-1300 | 1.1/5 | Steam or electric |
| GY-20 | 20 | 10/16 | 1850×1400×1200-1400 | 1.5/5 | |
| GY-50 | 50 | 25/40 | 2100×2000×2000-2700 | 4.5/16.5 | |
| GY-100 | 100 | 50/40 | 2600×2100×2000-2800 | 6/27 | |
| GY-200 | 200 | 100/160 | 2600×2500×2400-3350 | 8/32 | |
| GY-300 | 300 | 250/150 | 2800×2700×2550-3650 | 10/37 | |
| GY-500 | 500 | 420/250 | 2900×2800×2850-4100 | 16/52 | |
| GY-1000 | 1000 | 850/850 | 4150*4150*3700-5200 | 18/55 | |
| OTHERS | OTHER |
|
Homogenizing Emulsifying Machine Advantage |
|
1) Stir speed can be adjusted 2) Vacuum defoaming,vacuum sucking 3) Lifting system,easy to clean 4) Three layers stainless steel construction |
|
Emulsifying machine Payment terms |
|
Payment terms:T/T,Western Union,PayPal 30% deposit before production,70% balance before shipment Trade term:EXW,FOB&CIF are available |
|
Homogenizing Emulsifying Machine Material |
|
Stainless steel 304/stainless steel 316 |
|
Emulsifying machine Packing Information |
|
Safe package: PE film+plywood case |

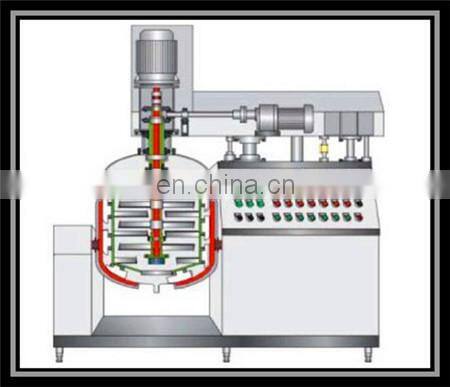

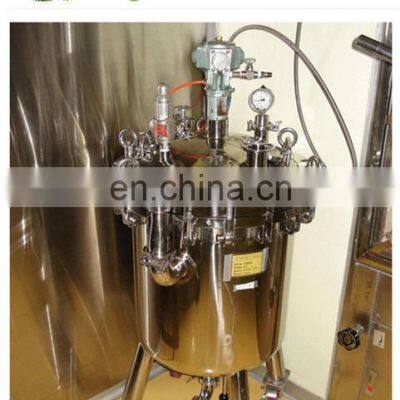

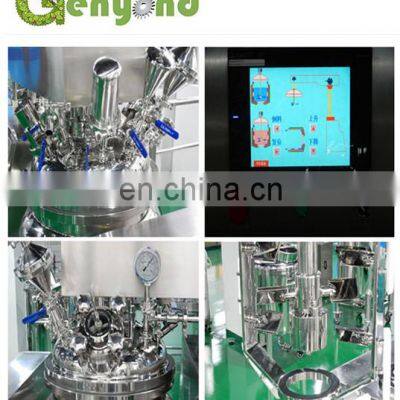

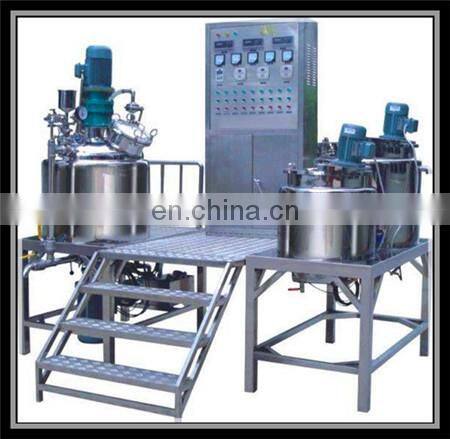

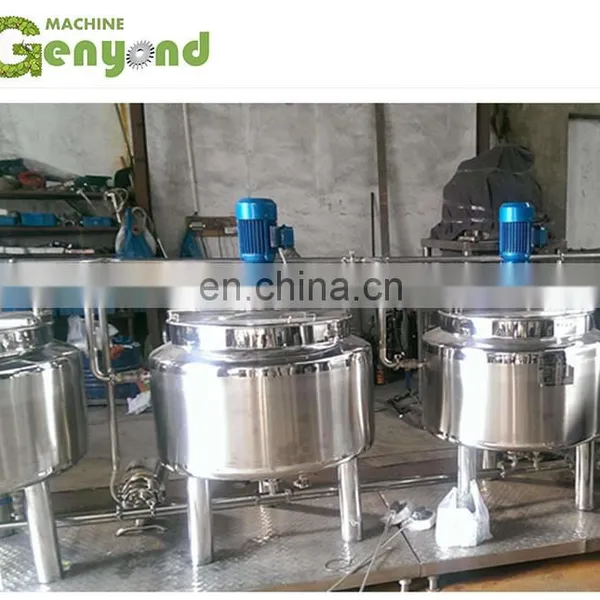

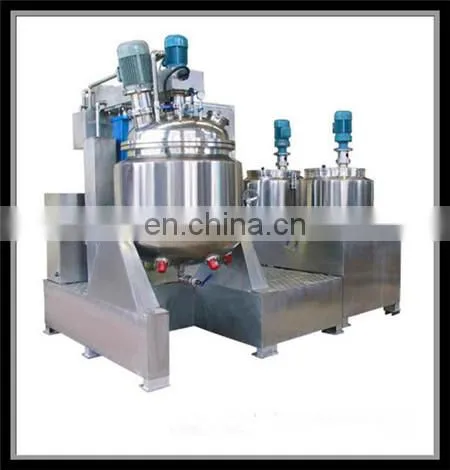

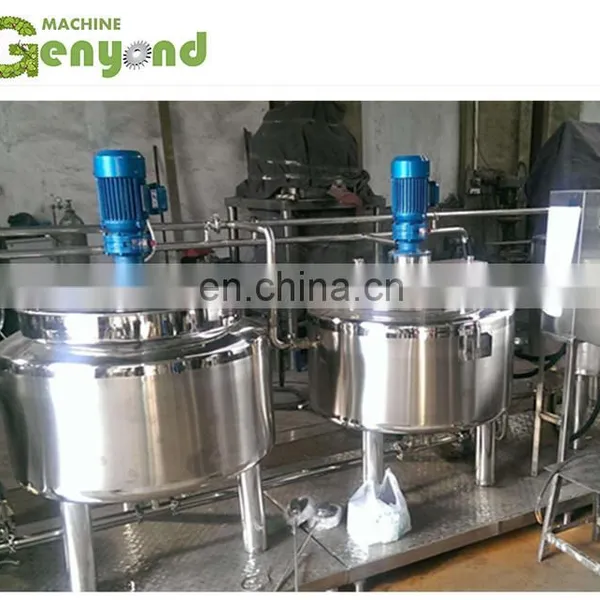

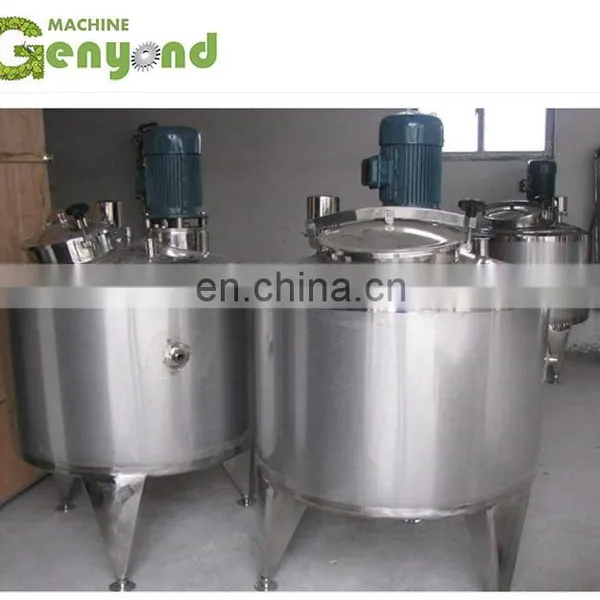

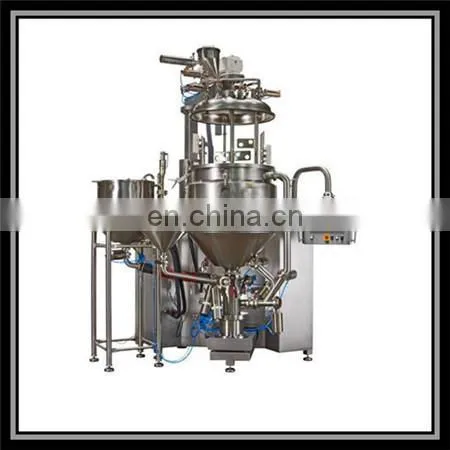

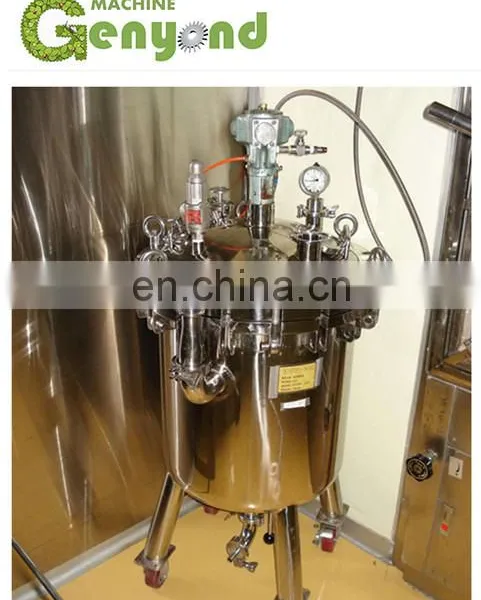

machines pictures:

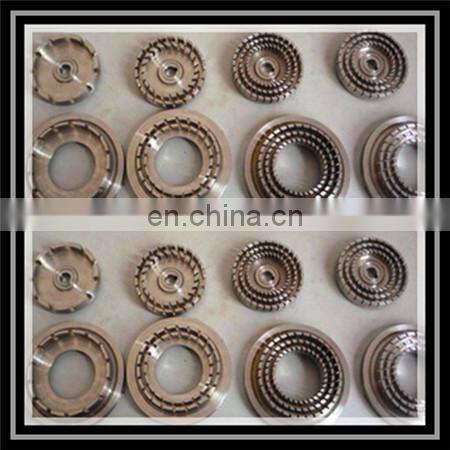

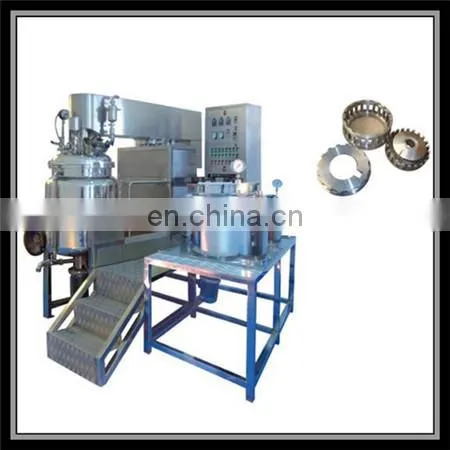

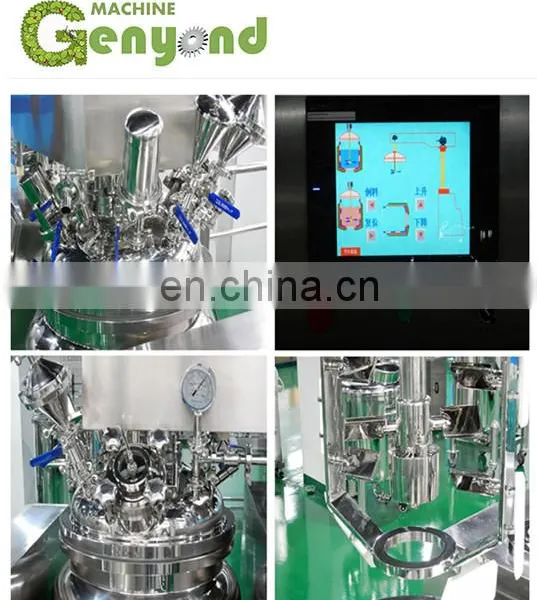

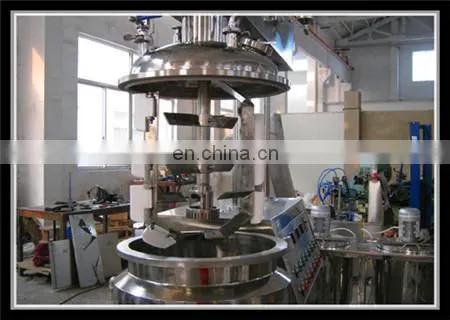

emulsifying parts:
application: vacuum mixing emulsifying machines are applied to many feilds: food,
medicine, fine chemistry, daily chemistry and so on
