Help CenterRice/Wheat/Corn/Maize Flour Production Equipment/ Mills Processing/ Flour Milling Machinery Price
Related Products
-
Shanghai Full Complete Dried Mango Processing PlantNegotiableMOQ: 1 -
Automatic Coconut Flakes Drying Machine / Coconut Shred DryerNegotiableMOQ: 1
-
Spray Dryer/Spray Drying Machine/fruit and Vegetable Powder Production LineNegotiableMOQ: 1
-
Pressure Spray Dryer For Ceramic Tile Plant With Factory ServiceNegotiableMOQ: 1
-
Shanghai Factory Centrifugal Coffee Spray Dryer Equipment Banana Powder High Pressure Spray Dryer Spraying Drying Tower MachineNegotiableMOQ: 1
1 Name flour milling machine
2 Capacity 10-500T/D
3 Quality Pass the quality management system ISO9001. Quality guarantee period of one year.
4 Service turnkey project,special design, installation, commissioning and training workers,lifelong service to our product.
5 Spare parts All of our new equipment to contain one year free spare parts
6 Workshop according to the capacity
7 Power supply according to the capacity
8 Color Red,green,white,blue or according the customer's demand

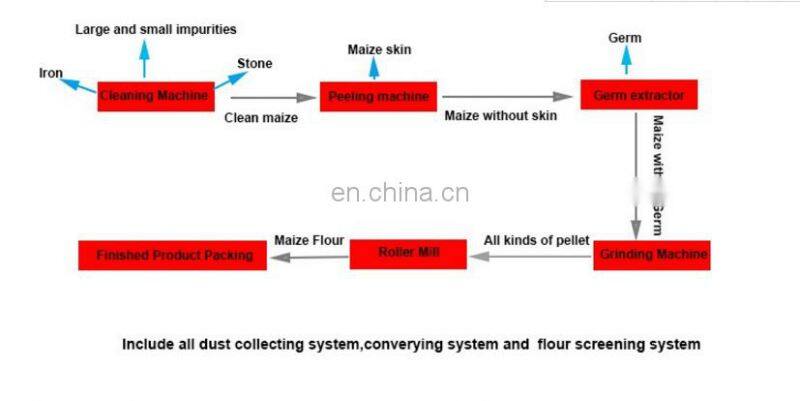

9 Cleaning system beating, screening, destoner, magnetic separator and dampening.
10 Milling system roller mill, plansifter, purifier, impact detacher, etc
11 packing and stacking The packing part can be manual one also can be auto one, this can be designed according to requirement and machine capacity.
12 Storage silos, or warehouse
No | Equipment | Quantity | Power(kw) | Remark |
1 | Versatile cleaner | 1set | 2.2 | Clean raw maize |
2 | Screw conveyor | 1set | 1.1 | Wet corn in the way of elevate maize to peeling machine |
3 | Peeling machine | 1set | 11 | Remove husks and germ from maize |
4 | Hammer mill | 1set | 4 | Crush the maize |
5 | Roller mill | 2sets | 7.5*2 | Mill the maize |
6 | Sifting machine | 3sets | 2.2 | Grade the flour |
7 | Bran finisher | 1set | 1.1 | Separate bran from corn core |
8 | High pressure air blower | 1set | 7.5 | Supply air conveying |
9 | Air lock | 5sets | 1.1 |
|
10 | Pipelines | 1set |
|
|
11 | Electric cabinet | 1set |
| Control the machines |
12 | Bag filter | 1set |
| Collect dust |
13 | Support for machines | 1set |
|
|
14 | Steel structure | 1set |
|
|
15 | Screws | 1set |
|
|
16 | V-belt | 1set |
|
|
17 | Flange | 1set |
|
|
18 | Pipe clamp | 1set |
|
|
19 | Chains&gear parts | 1set |
|
|
20 | Motor | 1set |
|
|
21 | Spare parts for one year | 1set |
|
|
Capacity | 10T/24H input maize |
Space required | 7*2.5*3.2m(L*W*H) |
Power supply | About 45.2kw |
Total weight | About 3500kg |
Package | One 20feet container |
Output yield | Maize flour:70-75%(60-80M); Animal feed:25-30% |
