Product Description

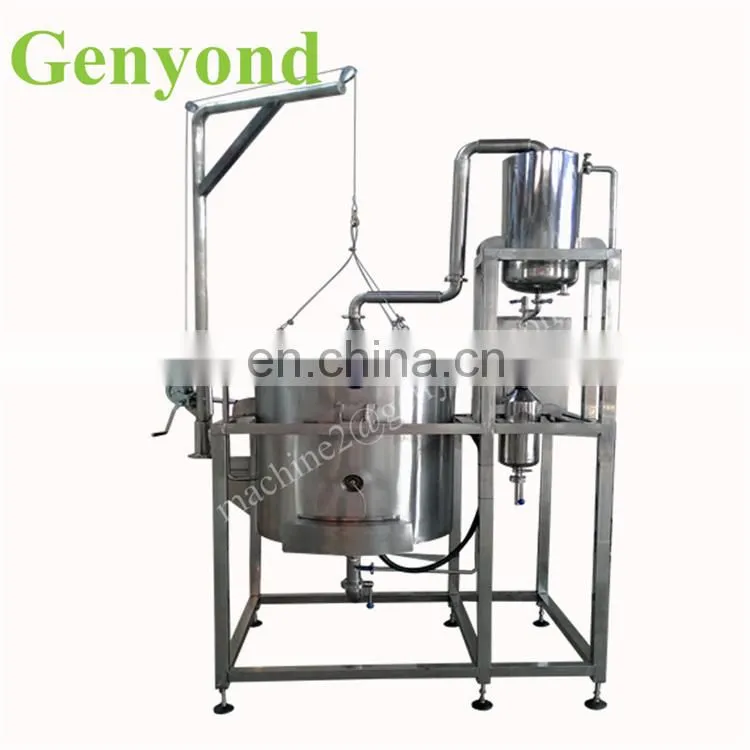

Factory cumtomized for agal wood essential oil steam distiller
Our plant Essential Oil Steam Distiller is suitable for the extraction of various flowers and leaves which contain essential oil. It adopts water vapor distillation apparatus for water distillation method and water proof distillation method, so the extraction of plant volatile component is effectively, this equipment is suitable for enterprises to set up production near the plant origin place. The equipment is new, multifunctional and multipurpose plant essential oil extraction unit. the equipment can collect the plant essential oil, aromatic plants, and other effective ingredients efficiently.
A, the equipment use:
This equipment is suitable for containing high grease composition of plant leaves, flowers, grass and animal material in conventional oil, fragrant oil composition of water distillation extraction process.
| Model | Capacity (L/3-4hr) | Power (KW/H) | Supply Power | Dimension(mm) | |||
| Voltage | Phase | Length | Width | Height | |||
| GY-10 | 10 | 4.5 | 380/220 | 3 | 1300 | 550 | 1800 |
| GY-20 | 20 | 5.5 | 380/220 | 3 | 1200 | 700 | 1700 |
| GY-30 | 30 | 6 | 380/220 | 3 | 1300 | 800 | 1700 |
| GY-40 | 40 | 7.3 | 380/220 | 3 | 1400 | 700 | 1800 |
| GY-50 | 50 | 7.5 | 380/220 | 3 | 1600 | 850 | 1800 |
| GY-60 | 60 | 8 | 380/220 | 3 | 1600 | 850 | 1850 |
| GY-80 | 80 | 9 | 380/220 | 3 | 1700 | 850 | 1900 |
| GY-100 | 100 | 12 | 380/220 | 3 | 1700 | 900 | 2100 |
| GY-150 | 150 | 18 | 380/220 | 3 | 1800 | 900 | 2100 |
| GY-200 | 200 | 25 | 380/220 | 3 | 1800 | 1000 | 2100 |
Second, the characteristics of the equipment:
1. This equipment is to use steam distillation method was carried out on the material lie between water distillation extraction.
2. The equipment is my company according to the essential oil extraction process, combined with advanced automation control system, developed by subminiature steam distillation extraction equipment. Reasonable structure design, superior
performance. Simple and flexible operation, one can easily finish the experiments and production.
3. Use indirect heat conduction oil heating equipment, in ensuring clean, safe, under the condition of normal pressure can reach 100 °C high temperature quickly.
Under the condition of the process allows, close vacuum pump, guide steam quickly through the condenser, the volatile oil quickly gather in the oil-water separator.
4. Vacuum cryogenic distillation, can has a better recovery of volatile substances.
5. Grade oil/water separation using laboratory glass pipe design, glass pipe diameter at 20 mm, facilitate oil separation and collection.
6. Distillation device built-in type multilayer blue, open structure, placed flowers and plants, all cleaning equipment is very convenient.
This equipment is suitable for containing high grease composition of plant leaves, flowers, grass and animal material in conventional oil, fragrant oil composition of water distillation extraction process.
Second, the characteristics of the equipment:
2.Chracters of Rose essential oil extract machine:
1)By steam-distillation to reach the extraction of essential oils.
2)Easy operation. One people can operate this machine easily.
3)High efficiency. Using indirect heating of heat-
transfer oil, it can quickly reach 100C high temperature under the conditions of cleanness,
safety and atmospheric pressure. If required, with vacuum pump, the extraction speed of essential oils
will be more faster.
4)Compact structure. It covers only about 1.5 square meter.
Material of Orange Peel Essential Oil Extraction
| Flowers | Rose; jasmine; lavender; chamomile; ylang ylang; geranium; neroli; clary sage;achillea millefolium; osmanthus; peony; marigold;l aurel; |
| Leaves | Tea tree; eucalyptus; mint; patchouli; juniperberry; cypress; pine needles; spearmint; basil. |
| Roots | Ginseng; ginger; angelica; garlic; vetivert; angelica root; mugwort; borneol camphor. |
| Grasses | Rosemary; verbena; lemongrass; melissa; nardostachys; tarragon; caraway; dill; valerian; houttuynia; wintergreen; evening primrose. |
| Wood | Sandalwood; cedar wood; rosewood; agarwood; Birch; holly; camphor; melaleuca; sassafras. |
| Resins | Frankincense; myrrh; benzoin; fir tree; amyris; Elemi. |
| Bark | Cinnamon. |
| Citrus | Bergamot; grapefruit; lemon; orange; lime; tangerine . |
| Seeds | Cloves; almonds; cardamom; carrot seed; pomegranates; pepper; c apsicum ; fennel. |
