Industrial Hydrosol Distillation Plant Essential Oil Distiller Extractor Extraction Equipment Extracting Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2013
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Basil Essential Oil Extraction Machine Extractor Essence Distiller Distillation Equipment Extracting PlantNegotiableMOQ: 1 -
Essential Oil Distillation UnitNegotiableMOQ: 1
-
Factory Co2 Supercritical Extraction Machine With DiscountNegotiableMOQ: 1
-
Stainless Steel DistillerNegotiableMOQ: 1
-
Industrial Herbs and Flower Essential Oil Distillation Distilling Equipment Hydrosol Plant Extracting Unit Extraction MachineNegotiableMOQ: 1
Product Description
Product Introduction
The essential oil steam distillation unit uses distillation technology and chemical separation,which can extract plant components efficiently by steam distillation,and have good effect in collecting essential oil from plants.
Extraction machine support frame, extraction tank, extraction basket, heating device, condenser, hoist, collection tank, water and oil separation, control cabinet, etc.
steam distillation or water distillation, the steam passes through plants material and vapourises oil,mixtures of steam and oil vapors go into the condenser. After the cooling,oil formed.This is the ideal device for you to make essential oil no matter for laboratory use or batch production.
The material information
Plant leaves and flowers: roses, osmanthus,chrysanthemum,lavender,
sagebrush, rosemary, wintersweet, sophora japonica, mint, thyme,etc.
Plant roots: aloes, ginger, aloe, clove,etc.
Plant fruit, passion fruit, castor, aniseed, grape seeds, etc.
Processing flow

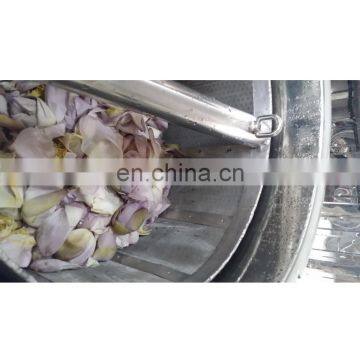

Raw material processed

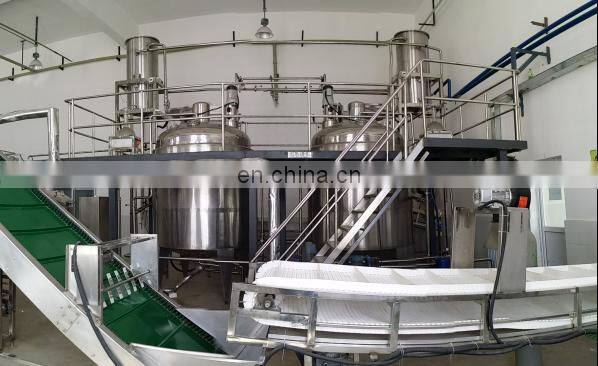

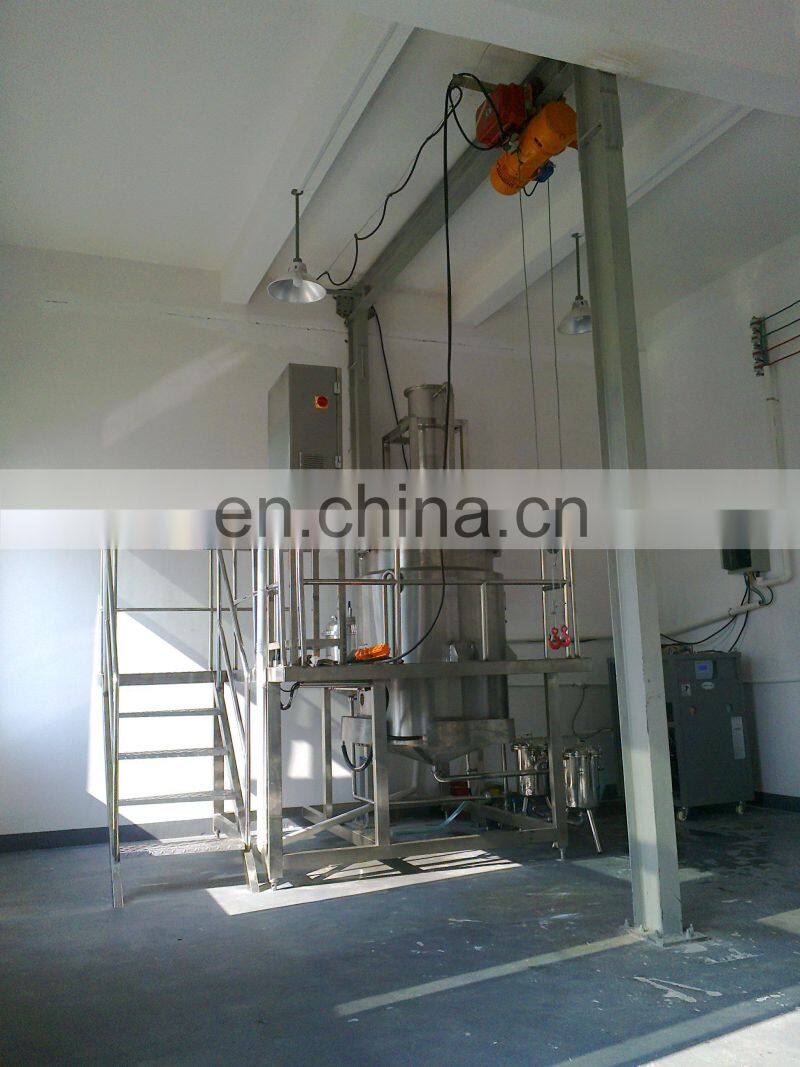

Machine picture
Parameter
Small & Medium size Essential Oil Distiller (Electricity or steam) | ||||||||||||
Model | Capacity | Power | Diameter of Condenser | Material | Heating Area of Extraction Tank | Condensing Area of Condenser | ||||||
GYC10 | 10L | 4KW | 102mm | SUS304 | 0.3M2 | 0.7M2 | ||||||
GYC20 | 20L | 4.5KW | 102mm | SUS304 | 0.4M2 | 0.75M2 | ||||||
GYC30 | 30L | 5KW | 133mm | SUS304 | 0.45M2 | 0.8M2 | ||||||
GYC50 | 50L | 11KW | 133mm | SUS304 | 0.5M2 | 0.85M2 | ||||||
GYC100 | 100L | 15KW | 133mm | SUS304 | 1.05M2 | 0.95M2 | ||||||
GYC150 | 150L | 17KW | 133mm | SUS304 | 1.45M2 | 1.25M2 | ||||||
GYC200 | 200L | 20KW | 133mm | SUS304 | 1.85M2 | 1.50M2 | ||||||
HEC300 | 300L | 25KW | 133mm | SUS304 | 1.95M2 | 2.00M2 | ||||||
Large Customized Machines (steam ) | ||||||||||||
Model | Capacity | Temperature display | Cooling water circulation pump | Crane system | Console | Boiler | ||||||
GYC500 | 500L | Digital temperature control system, with steam stop valve,drain valves, steam traps, etc. | Cooling water circulation pump, 20tons/H, the cooling water through the pipe into the condenser | 750kg | Carbon steel rust treatment table | The gas coal electric boilers according customer local conditions to select | ||||||
GYC1000 | 1000L | 1000kg | ||||||||||
GYC1500 | 1500L | 1000kg | ||||||||||
GYC2000 | 2000L | 1000kg | ||||||||||
GYC3000 | 3000L | 1500kg | ||||||||||
GYC4000 | 4000L | 2000kg | ||||||||||
GYC5000 | 5000L | 2000kg | ||||||||||
Structure: A: up charging and up discharging (Crane system needed) B: up charging and side discharging C: up charging and bottle discharging | ||||||||||||
