stainless steel distiller

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Lemon Essential Oil Steam Distillation Unit for Sale

Introduction:

This device is suitable for medicine, health care products, bio-pharmaceuticals, cosmetics,

food and other industries to extract, collect plant volatile oils. This device uses special structure

of the water vapor distillation unit can efficiently extract the plant essential oils. Essential Oil Steam Distillation Unit can significantly increase essential oil collection rate.

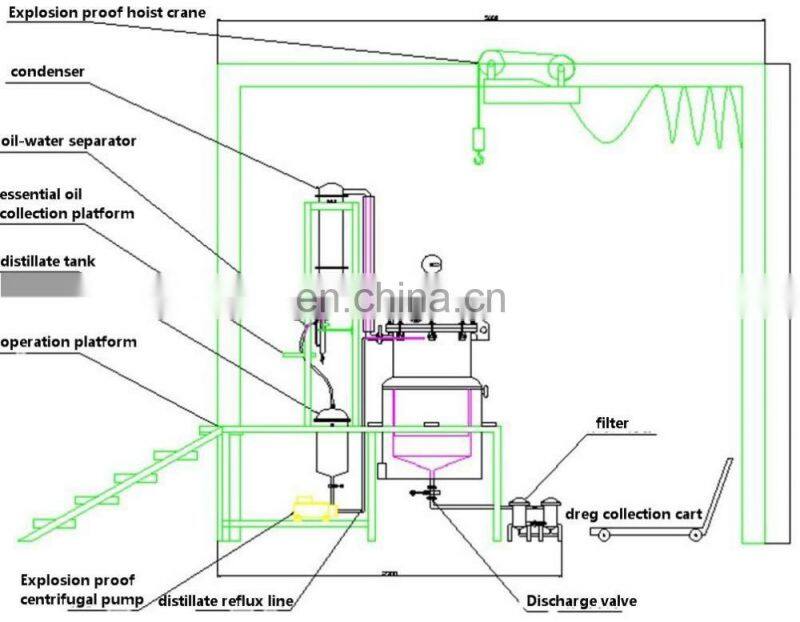

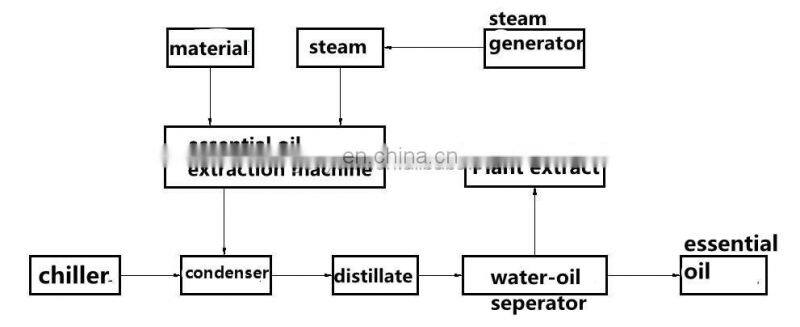

Structure and parts:

Advantage:

1. This equipment is made of SUS304 stainless steel with special frame

2. Special condenser design which can extract the oil efficiently

3. This machine equips Digital control system and Touch screen display control system

4. Multiple heating fuel:electric,natural gas,coal gas and so on

We can also Make it according to your request

Model:

Model	Capacity (L/3-4hr)	Power (KW/H)	Supply Power		Dimension(mm)
Model	Capacity (L/3-4hr)	Power (KW/H)	Voltage	Phase	Length	Width	Height
EO-10	10	4.5	380/220	3	1300	550	1800
EO-20	20	5.5	380/220	3	1200	700	1700
EO-30	30	6	380/220	3	1300	800	1700
EO-40	40	7.3	380/220	3	1400	700	1800
EO-50	50	7.5	380/220	3	1600	850	1800
EO-60	60	8	380/220	3	1600	850	1850
EO-80	80	9	380/220	3	1700	850	1900
EO-100	100	12	380/220	3	1700	900	2100
EO-150	150	18	380/220	3	1800	900	2100
EO-200	200	25	380/220	3	1800	1000	2100
EO-300	300	38	380/220	3	1900	1000	2100
Note: Besides the above model, we also have 500L,1000L,1500L,2000L 3000L and above.

Raw materials can be used to extract essential oil as below:(just for reference)

flowers:	Rose; jasmine; lavender; chamomile; Ylang ylang; geranium; neroli; clary sage;achillea millefolium; osmanthus; peony; marigold; laurel; honeysuckle; violets.
leaves:	Tea tree; eucalyptus; mint; patchouli; juniperberry; cypress; pine needles; spearmint; basil.
roots:	Ginseng; ginger; angelica; garlic; vetivert; angelica root; mugwort; borneol camphor.
grasses:	Rosemary; verbena; lemongrass; melissa; nardostachys; tarragon; caraway; dill; valerian; houttuynia; wintergreen; evening primrose.
wood:	Sandalwood; cedar wood; rosewood; agarwood; Birch; holly; camphor; melaleuca; sassafras.
resins:	Frankincense; myrrh; benzoin; fir tree; amyris; Elemi.
bark:	Cinnamon.
citrus:	Bergamot; grapefruit; lemon; orange; lime; tangerine .
seeds:	Cloves; almonds; cardamom; carrot seed; pomegranates; pepper; capsicum ; fennel.

Other Details:

Package: wooden cases for sea transportation
Delivery time: 30 working days after receiving the deposit
Installation : engineers available for installation and training overseas
Guarantee : 12 months after it is sent out

Plz feel free to contact me for any further information.

Company Profile

Shanghai Genyond Technology Co., Ltd.

Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
