Vertical Parting Boxless Molding Machine

Qingdao Sanzhuji Technology Co., Ltd.

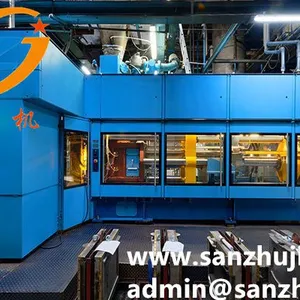

Vertical Parting Boxless Molding Machine thumbnail-1
Vertical Parting Boxless Molding Machine thumbnail-2
Vertical Parting Boxless Molding Machine photo-1

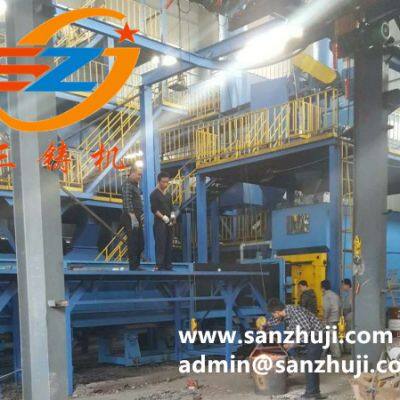

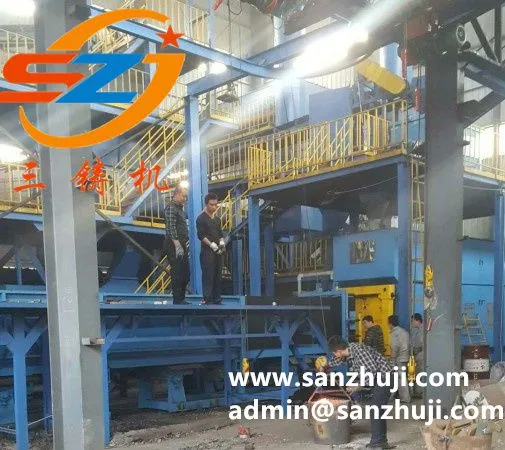

Vertical Parting Boxless Molding Machine photo-2
Negotiable MOQ: 1 Bag (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Vertical Parting Boxless Molding Machine is mainly used in automatic green sand casting workshop, which needs to be used in combination with green sand recycling processing equipment, because this equipment requires high quality of green sand, which needs to remove the iron bean splinter etc. in the old sand, and also needs to regenerate the old sand, 120-300 moulds/h, which is a special molding equipment for pedestrian cover, and the hardness of the mould sand is HB80-90 on average.


Model



Mold size：mm



modeling methods



control mode



Compaction pressure：Mpa



sand hardness：N/cm²



]productivity：Box/hour





hydraulic pressure：Mpa



power





ZTD416





600×480×（120-330）



Injection compaction + compaction







PLC/touch screen





1.0-1.2





85-90



Sand mold thickness: 160mm, type 300 / h (core thickness: 120-180 / h)





10





53





ZTD417





700×560×（120-330）



Injection compaction + compaction







PLC/touch screen





1.0-1.2





85-90



Sand mold thickness: 160mm, type 240 / h (core thickness: 120-180 / h)





10





70





ZTD418





800×600×（120-330）



Injection compaction + compaction







PLC/touch screen





1.0-1.2





85-90



Sand mold thickness: 160mm, type 240 / h (core thickness: 120-180 / h)





10





70



ZTD4110



1000×1100×（120-330）



Injection compaction + compaction





PLC/touch screen



1.0-1.2



85-90

Sand mold thickness: 160mm, type 240 / h (core thickness: 120-180 / h)



10



70


Product Tags: Vertical parting boxless molding machine , Flaskless Molding Machine , Sand molding machine , sand casting molding machine , Green Sand Molding Line , sanzhuji
