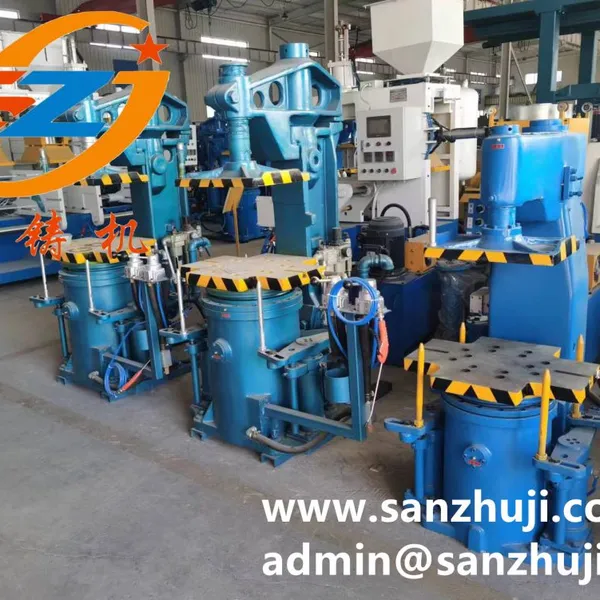

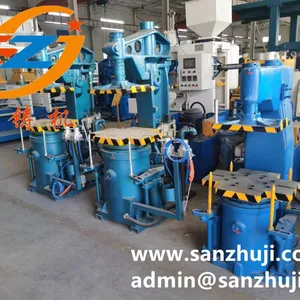

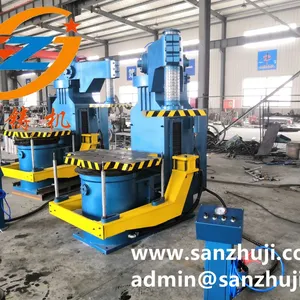

Jolt-squeezing moulding machines
- 10 Bag / Bags per Month
- Qingdao
- T/T L/C
You May Like
Product Description
Jolt-squeezing moulding machines, which can be used in automated green sand casting lines or individually, 40-60moulds/h, divided into cope and drag, so they need to be used in pairs, using air cushion type vibration compaction, flat plate compaction sand, sand hardness in HB80-90 on average.
Model | Z143 | Z145 | Z146 | Z147 | Z148 | Z149 | Z1410 |
Maximum sand box size:mm | 500×400×200 | 500×450×200 | 600×500×200 | 750×650×300 | 1000×800×300 | 1200×1000×350 | 1500×1100×350 |
Worktop size:mm | 560×465 | 620×520 | 700×550 | 850×700 | 900×730 | 1170×850 | 1400×1030 |
Compressed air pressure:Mpa | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Pressure strength:Kgf | 4200 | 6300 | 7000 | 9500 | 15500 | 21000 | 32000 |
Shock load:Kg | 280 | 300 | 400 | 500 | 600 | 1200 | 1600 |
Compaction stroke:mm | 120 | 160 | 160 | 200 | 200 | 200 | 200 |
Die start stroke:mm | 160 | 200 | 200 | 250 | 350 | 350 | 350 |
Distance from indenter to table:mm | 200-370 | 200-450 | 200-450 | 350-650 | 400-700 | 600-750 | 700-1000 |
Productivity:Mould/h | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
