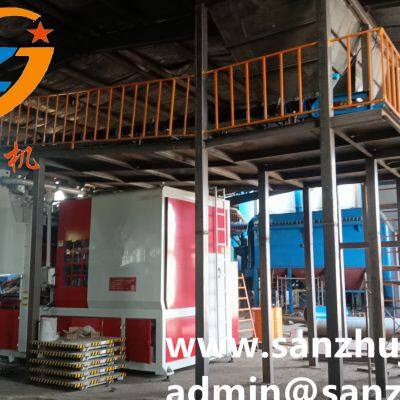

Horizontal Flaskless Moulding Machine
- Qingdao
- T/T L/C
You May Like
Product Description
Removable Flask Molding Machine is mainly used in automated green sand casting workshop, which needs to be used in combination with green sand recycling processing equipment, because this equipment requires high quality of green sand, which needs to remove iron bean splinter etc. from old sand, and also needs to regenerate the old sand, 40-70 S/model, which is divided into horizontal sand injection and upper and lower sand injection, and the hardness of the mould sand is HB80-90 on average.
Model | ZXJ5060 | ZXJ6272 | ZXJ6272A | ZXJ6565 | ZXJ8080 | ZXJ100100 |
Weight:T | 10 | 15 | 16 | 15 | 18 | 20 |
Size:mm | 3840×1900×3200 | 4530×2750×4155 | 4530×2750×4155 | 4530×2750×4220 | 5400×2950×4560 | 5750×3300×4600 |
Code size:mm | 600x500x(130-200) | 720x620x(190-250) | 720x620х(300-350) | 650x650x(240-300) | 800x800x(260-330) | 1000x1000 x (180-250) |
Drag size:mm | 600x500x(100-200) | 720x620x(190-250) | 720x620×(190-250) | 650x650x(190-250) | 800x800x(210-280) | 1000x1000×(180-250) |
Molding method | Pneumatic sand shooting + hydraulic extrusion | Pneumatic sand shooting + hydraulic extrusion | Pneumatic sand shooting + hydraulic extrusion | Pneumatic sand shooting + hydraulic extrusion | Pneumatic sand shooting + hydraulic extrusion | Pneumatic sand shooting + hydraulic extrusion |
Molding spped:s/model | 30-40 | 40-60 | 40-60 | 40-60 | 50-65 | 50-70 |
Air consumption：m³/model | 1.1 | 1.2 | 1.2 | 1.2 | 1.4 | 1.7 |
Hydraulic system pressure：Mpa | 13 | 13 | 13 | 13 | 13 | 16 |
Air pressure:Mpa | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
Whole machine input voltage:V | 380V (control voltage 24V) | 380V (control voltage 24V) | 380V (control voltage 24V) | 380V (control voltage 24V) | 380V (control voltage 24V) | 380V (control voltage 24V) |
Total power：Kw | 20 | 20 | 20 | 20 | 20 | 46 |
