Parker SSD 890 Ac Motor Driver 890SD-532240C0-B00-1A000 AC Drive High Over Load Capacity

Parker AC890 inverter

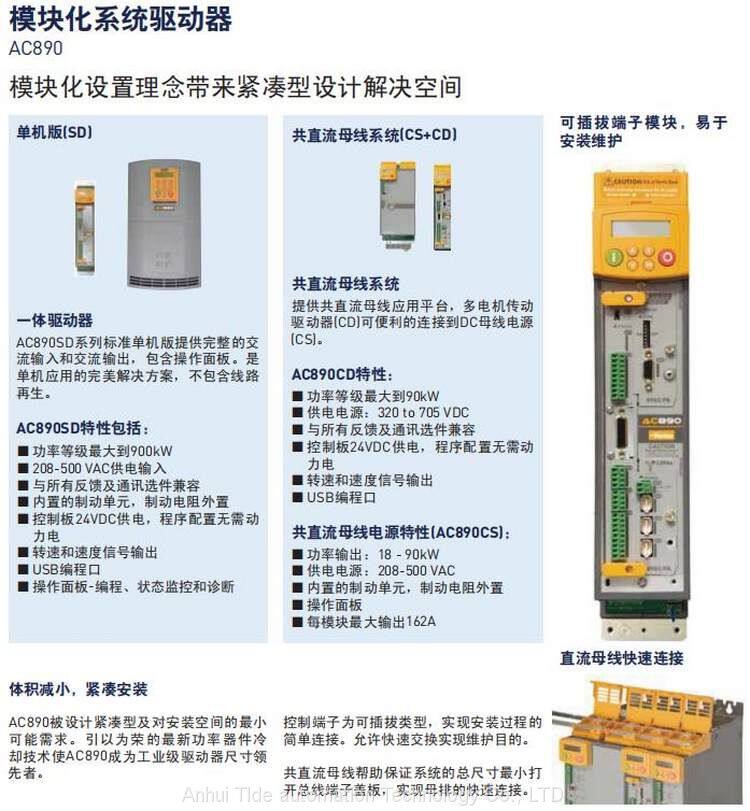

The AC890 system driver is a modular AC motor driver performance unit that can be combined to form a maximum multi-segment drive system, saving space, reducing wiring, and providing a system. The safety torque switch function (PLE of the SIL3 or according to EN ISO13849 and EN61800-5-2 classes) provides the framework for the blast furnace.

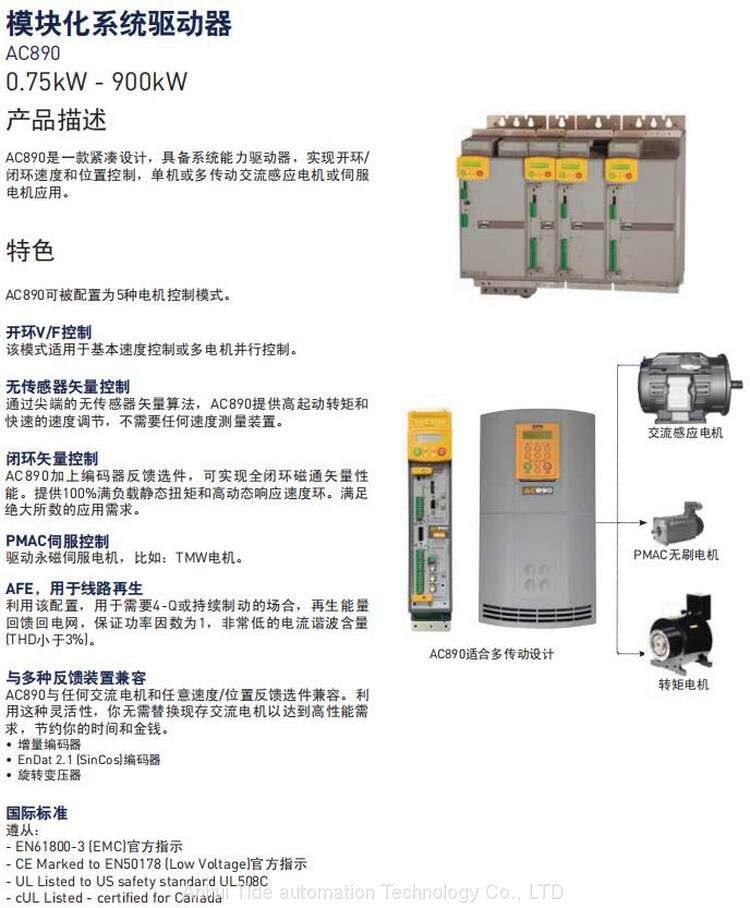

The AC890 offers V/F, sensorless vector, closed-loop flux vector and servo position control, from simple AC motor control parts to more demanding parts. The AC890 comes in a wide variety of sizes and grades as well as input and output types, making it a solution for motion control projects.

The AC890 can be configured with five motor control modes:

Open loop V/F control

This mode is suitable for basic speed control or multi-motor parallel control.

Sensorless vector control

With the most advanced sensorless vector algorithm, the AC890 provides high starting torque and fast speed regulation without the need for any speed measuring device.

Closed-loop vector control AC890 with encoder feedback options enables full closed-loop flux vector performance. Provides full load static torque and high dynamic response speed loop. Meet most application requirements.

PMAC servo control

Drive permanent magnet servo motor, such as TMW motor.

AFE, used for line regeneration

With this configuration, for applications requiring 4-Q or continuous braking, regenerative energy is returned to the grid with a *** power factor of 1 and a very low current harmonic content

(THD is less than 3%).

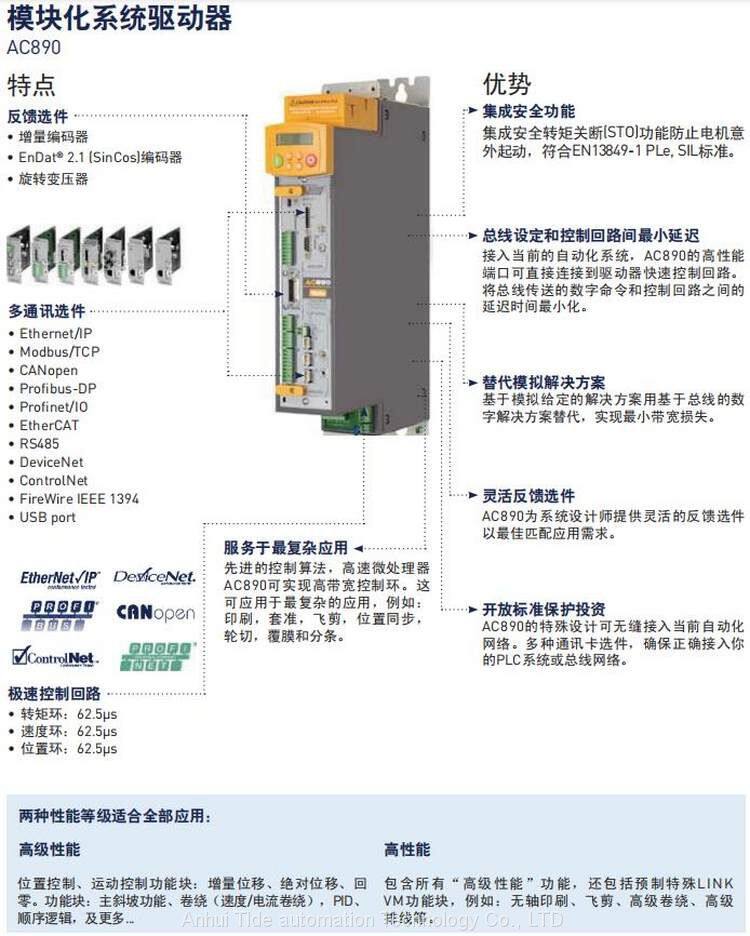

Compatible with a variety of feedback devices

The AC890 is compatible with any AC motor and any speed/position feedback option. With this flexibility, you don't need to replace existing AC motors to meet your needs

Please, save your time and money.

Incremental encoder

EnDat 2.1 (SinCos) encoder

Rotating transformer

Performance level

The performance of the AC890 inverter provides a level suitable for your application needs. With 2 different performance levels, the AC890 system allows for flexibility in use.

The best performance

Basic links virtual machine function blocks: Mathematical functions, Boolean logic, timers, counters, plus: Motion adds a position loop, motion control function block control firmware, move increments, moving, line driver main ramp and part control, (surface plasma wave, coplanar waveguide) winding machine block, features the most advanced PID, state machine, etc.

* * *

The performance characteristics of * * *, plus: * * * preliminary design of virtual library connection function block, such as: shaftless printing, cut to length, precision, cross, etc.

Registration of shaftless printing control solutions

The printing machine line shaft easily replaces the individual AC890 drive, the sync and print register the ability to adjust each part, *** each color aligned. The AC890** class features virtual machine functional modules in pre-designed specific segments of the application, including shaftless printing, cutting to length, precision winding, etc

Standard:

When installed in accordance with the relevant product manuals, the AC890 series is compatible with the following standards:

CE Marked to EN50178 (Safety, Low Voltage Directive)

CE Marked to EN61800-3 (EMC Directive)

UL listed to US Standard UL508C

cUL listed to Canadian Standard C22.2 #14

Technical specifications:

Main power supply:

three-phase

- 890SD : 380 - 500 VAC +/- 10 %, 50-60 Hz +/- 5%

- 890CS : 208 - 500 VAC +/- 10 %, 50-60 Hz +/- 5%

- 890CD : 320/560 - 705 VDC

- Frames E/F/G/H/J/K : 380 - 460 Vac +/- 10 %

Setting:

0-45°C (capacity reduction 2%/°C up to its upper limit of 50°C)

Maximum 1000m ASL (capacity reduction 1%, maximum 4000m per 100m increase)

brand

Parker

Product type

Ac driver

Drive shaft type

Uniaxial technique

Multiaxis technique

Product sequence

AC890

Input voltage

3*230VAC

3*380-480VAC

3*500-690VAC

320-705VDC (Public bus)

Output power

0.55-1200 kW

Compatible motor type

Brushless servo

Frameless servo

reaction

Spindle motor

Torque motor

PMAC

Compatible feedback device

Rotating transformer

Incremental encoder

Control mode

V / Hz

Sensorless vector

Closed loop vector

Active Front End

Speed control of permanent magnet motor

Communication interface

RS232 / RS485

CANopen

ControlNet

DeviceNet

Profibus

Profinet

Ethernet TCP/IP

Operating temperature

0-45 °C for Frames B-F / derate up to max 50 °C 0-40 °C for Frames G-K / derate up to max 50 °C

32-113F, suitable for Frames B-F (reduced capacity, allowed temperature 122F)

32-104F, suitable for Frames G-K (reduced capacity, allowed temperature 122F) °F

Working height

1000m ASL (capacity reduction over 1000m)

Overload rating

Heavy load (constant torque) : 150% lasts 60s

Standard load (variable torque) : 110% lasts 60s

Servo mode (Frames B-D) : 200% lasts 4s

Servo mode (Frames E-J) : 150% duration 60s

Meet specifications

CE (EMC&LVD)

Listed by UL

Listed through cUL

890CD-531200B0-000-1A000

890CD-531350B0-000-1A000

890CD-531450B0-000-1A000

890CD-531600B0-000-1A000

890CD-532100B0-000-1A000

890CD-532120B0-000-1A000

890CD-532160B0-000-1A000

890CD-532240C0-000-1A000

890CD-532300C0-000-1A000

890CD-532390D0-000-1A000

890CD-532450D0-000-1A000

890CD-532590D0-000-1A000

890CD-532730E0-000-1A000

890CD-532870E0-000-1A000

890CD-533105F2-000-1A000

890CD-533145F2-000-1A000

890CD-533156F2-000-1A000

890SD-531200B0-B00-1A000

890SD-531450B0-B00-1A000

890SD-531600B0-B00-1A000

890SD-532100B0-B00-1A000

890SD-532120B0-B00-1A000

890SD-532160B0-B00-1A000

890SD-532240C0-B00-1A000

890SD-532300C0-B00-1A000

890SD-532390D0-B00-1A000

890SD-532450D0-B00-1A000

890SD-532590D0-B00-1A000

890SD-432730E0-B00-1A000

890SD-432870E0-B00-1A000

890SD-433105F2-B00-1A000

890SD-433145F2-B00-1A000

890SD-433156F2-B00-1A000

890SD-433180F2-B00-1A000

890SD-433216G2-000-1A000

890SD-433250G2-000-1A000

890SD-433316G2-000-1A000

890SD-433361G2-000-1A000

890SD-433375H2-000-1A000

890SD-433420H2-000-1A000

890SD-433480H2-000-1A000

890SD-433520H2-000-1A000

890SD-433590J2-000-1A000
