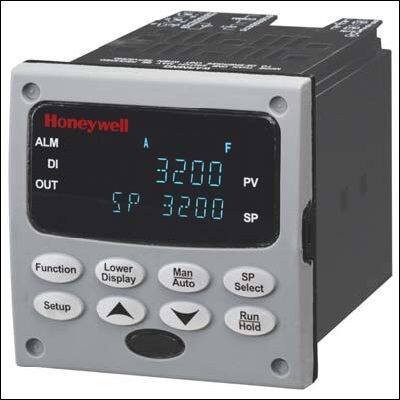

Honeywell UDC3200 Universal Digital Controller Agent

Honeywell UDC3200 Universal Digital Controller Agent thumbnail-1
Honeywell UDC3200 Universal Digital Controller Agent photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Honeywell
Model Number:
UDC3200
Contact Supplier Request Quote Chat Now
Chengdu Shengzhijie Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Honeywell
Model Number UDC3200

New Power and Flexibility

The UDC3200 Universal Digital Controller packs new powerful features in the popular 1/4 DIN size.

Unmatched application power includes: Infrared (IR) Configuration interface, two universal analog inputs and a Math Algorithm. When these are combined with the Accutune III™ tuning with fuzzy logic overshoot suppression, the result is price/performance leadership.

Application flexibility is assured by the universal analog inputs, universal AC power supply, two digital inputs, a

maximum of five analog and digital outputs, RS422/485 Modbus RTU or Ethernet 10Base-T TCP/IP communication protocols, simple configuration plus total field upgrade capability for any optional feature.

Features􀁸􀀃 2 Universal Analog Inputs􀁸􀀃 0.20% Accuracy

􀁸􀀃 Fast scanning rate (166ms)􀁸􀀃 Up to 5 Analog Output Types

􀁸􀀃 2 Digital Inputs􀁸􀀃 Math Functions

􀁸􀀃 Ethernet and Modbus communication

􀁸􀀃 Infrared PC & Pocket PC configuration

􀁸􀀃 NEMA4X and IP66 front face protection

􀁸􀀃 Multilanguage prompts

􀁸􀀃 ¼ DIN Size

􀁸􀀃 Jumper free configuration

􀁸􀀃 Easily Field Upgradable

Bright, dual displays with multi-language prompts (in English, French, German, Spanish, or Italian) make the operator interface easy to read, understand, and operate. Simple keystrokes let you set operating parameters that meet your process control needs.

Analog Inputs

The UDC3200 has two analog inputs with a typical accuracy of ±0.20% of fullscale input and a typical resolution of 16 bits. Both analog inputs are sampled six times per second (every 166 ms).

The first, or Process Variable input, can be one of the various thermocouple, RTD, Radiamatic or linear actuations. Linear actuations have thermocouple, RTD, and Radiamatic transmitter characterization capability as a standard feature. Linear actuations also have square root capability. The optional second input is isolated and accepts the same actuations as input one, or it provides the Slidewire input for Position Proportional control.

All actuations and characterizations are keyboard configurable. Cold junction compensation is provided for

thermocouple type inputs. Upscale, downscale or failsafe sensor break protection is keyboard configurable. A

configurable digital filter of 0 to 120 seconds provides input signal damping.

Thermocouple Health - In addition to the standard configurable upscale, downscale or failsafe output burnout

selections, the condition of the thermocouple can be monitored to determine if it is good, failing or in danger of imminent failure.

Math Functions

Algorithm—A pre-configured algorithm is available for easy implementation. This includes the capability of using a Ratio and Bias with any input. You can select from the following menu: Feedforward Summer—Uses either

input, followed by a Ratio/Bias calculation, summed directly with the computed PID output value to provide a resultant output to the final control element (standard feature). Weighted Average —Computes the

weighted average of a PV or SP for the control algorithm from two inputs (standard feature).

Feedforward Multiplier—Uses any input, multiplied by the calculated PID output to provide a resultant output

which is sent to the final control element (standard feature). Summer/Subtractor—Will add or subtract inputs with the result used as the derived PV.

Multiplier/Divider—Uses the analog inputs to calculate a derived PV. Available with or without Square Root.

Input High/Low Select—Specifies the PV input as the higher or lower of the two inputs.


Product Tags: Universal Digital Controller , Honeywell UDC3200 , UDC3200
