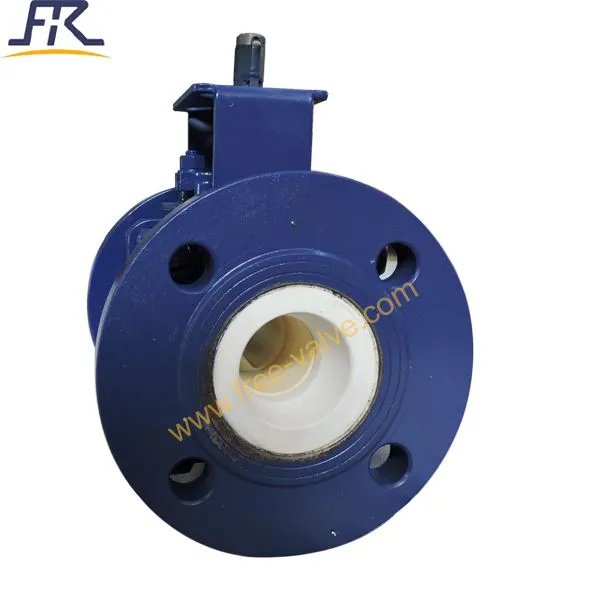

FREE-VALVE brand Carbon steel bare stem ceramic lined ball valves are designed with engineering ceramics the engineering ceramics internal parts provide excellent wear resistance, the ceramic ball valves are widely used as an open and close function as well as a throttling control tasks in corrosive medium with abrasive solids .
Features:
1.The hardness of the ceramic material can be higher than HRC80.
2.Engineering internal parts of ceramic ball valve provide superior protection from corrosive and abrasive medium.
3.Customized actuation types are installed on the ceramic ball valve, the manual lever or gear box, as well as with pneumatic and electric actuators.
4.Customized V type ceramic control valve is also available.
5.The valve has a floating ball design, the ball is floating, the ball has a defined clearance and is pressed against the downstream seat under the differential pressure to achieve sealing.
6.The valve body is in the form of 3-PCS.
Technical Specification
Thread Standards:GB,NPT,BSPT
Nominal Pressure 1.0MPa,Class150
Size Range :DN10~DN 50
Connection type:Flanged
Working Temperature ≤200℃
Operating Type:Manual operation, Pneumatic ,Electric can be choosed
Sealing surface material:Engineering ceramic

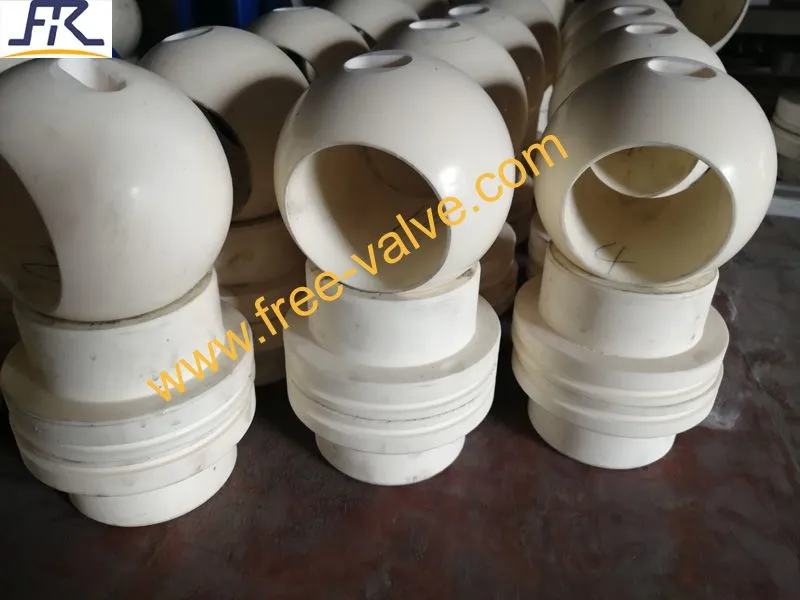

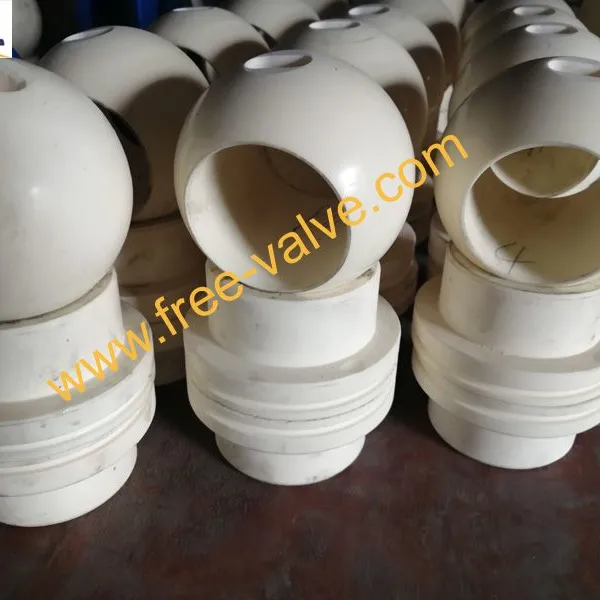

Ball material:Engineer ceramic
Pressure test :GB/T13927, API598
Face to Face: GB/T12221, ASME B16.10
Application
FREE-VALVE brand carbon steel bare stem ceramic lined ball valves are suitable for Silicon Powder, Alumina Powder, Dry Coal Powder, Limestone Slurry, Gypsum Slurry, Plaster, Fly Ash, Mining Ore, Coal Powder Injection, Metallurgical dust, Thermal Power plant FGD , LiCoO2 powder equipment,Glue industry and food industry.
Model：FRQ41TC
Price terms:FOB,CIF,FCA,CFR
Price:100-500USD/set
Origin:China
Brand:FREE-VALVE
