Help CenterDN100 PN10 Pneumatic Full Ceramic Lined Double Disc Gate Valve
Related Products
-
Pneumatic Actuator Ceramic Twin Disc Gate ValveUS$ 500 - 5000MOQ: 2 Sets -
Hydraulic Operated High Pressure Ceramic Lined Knife Gate ValveUS$ 500 - 5000MOQ: 2 Sets
-
Electric Operated High Pressure Ceramic Lined Knife Gate ValveUS$ 500 - 5000MOQ: 2 Sets
-
DN50 PN10 Pneumatic Ceramic Lined Rotating Double Disc Gate ValveUS$ 600 - 1000MOQ: 2 Sets
-
Ceramic Lined Slag Discharge Gate ValveUS$ 500 - 5000MOQ: 2 Sets

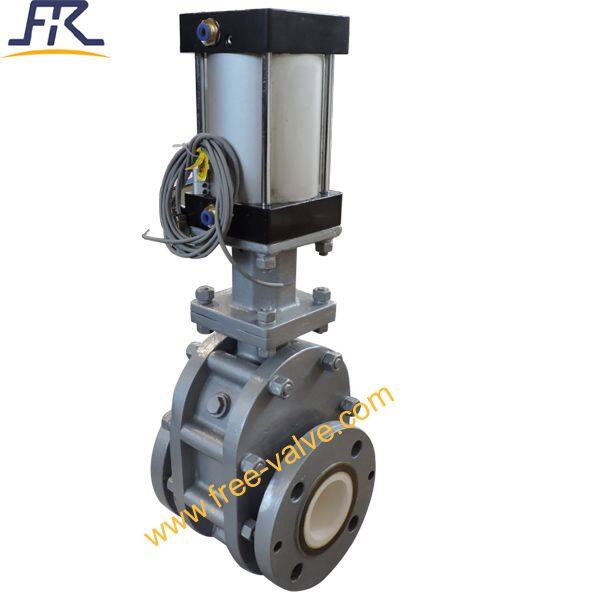

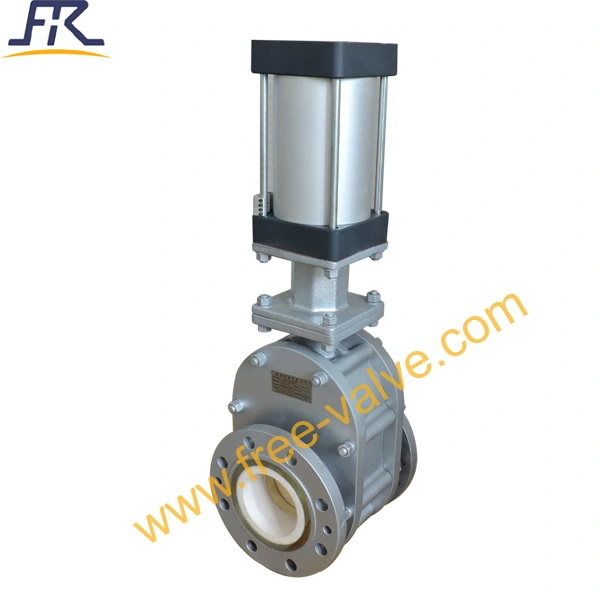

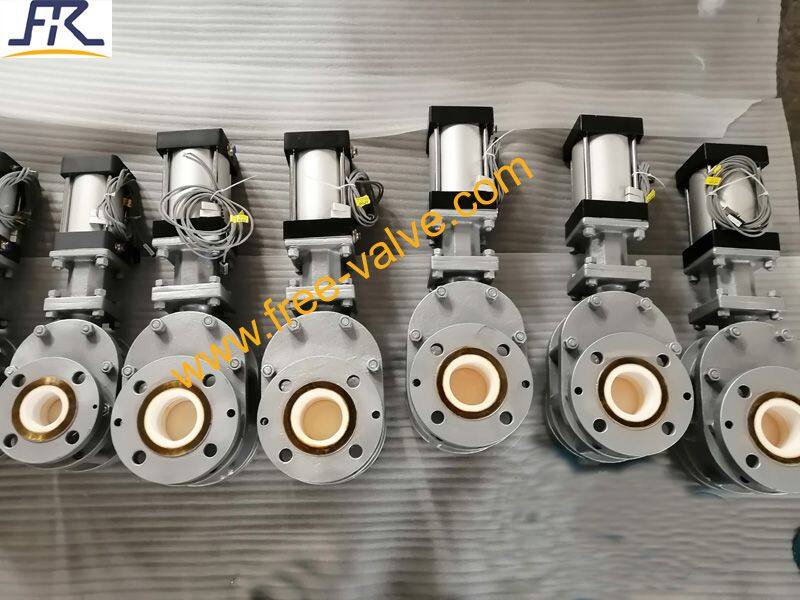

FREE-VALVE Brand DN100 PN10 Pneumatic Full Ceramic Lined Double Disc Gate Valve is mainly used in feeding and dumping the dry powder and the transport pipeline, which not only adopt toughening ceramic as shut off and wear out resistance material, but also design construction of pressure self-sealing and valve disc auto-rotate, so as to the sealing surface within the dry powder get more wear resistance in process of opening and closing frequently, thereby, which guarantee the high requirements of sealing performance of this valve and long working time.
Features:
1. Sealing pair is made of structural ceramics，which have perfect performance to resist wear and flushing.
2. Two-side sealing can realized due to double disc structure of the pneumatic ceramic double disc gate valve.Ceramic seat and ceramic liner are designed separately.
3. It inserts spring between double valve discs to ensure self- sealing through bi-directional flexible preload pressure of spring, having characteristics of low pressure bi-directional sealing and without dust clogging phenomenon in the process of the opening and closing of valve.
4. The valve disc rotational motion can avoid the ash deposition on the sealing surface during opening and closing, so the valves have much longer service.
5. The blow sweep port or automatic blow sweep device can be set on the valve body according to different operating conditions.
6. Both the valve inlet and outlet flow channel are lined with ceramic to make the valve more wear-resisting.
Technical Parameters
1) Size : DN100
2) Pressure: PN10
3) Applicable Temperature: 0~250℃
4) Connection Type: Flange
5) Sealing material: Engineering ceramics
6) Pressure test:GB/T13927
7) Face to Face: GB/T12221
8) Flange standards:ASME B16.5
9)Operating Type: Pneumatic

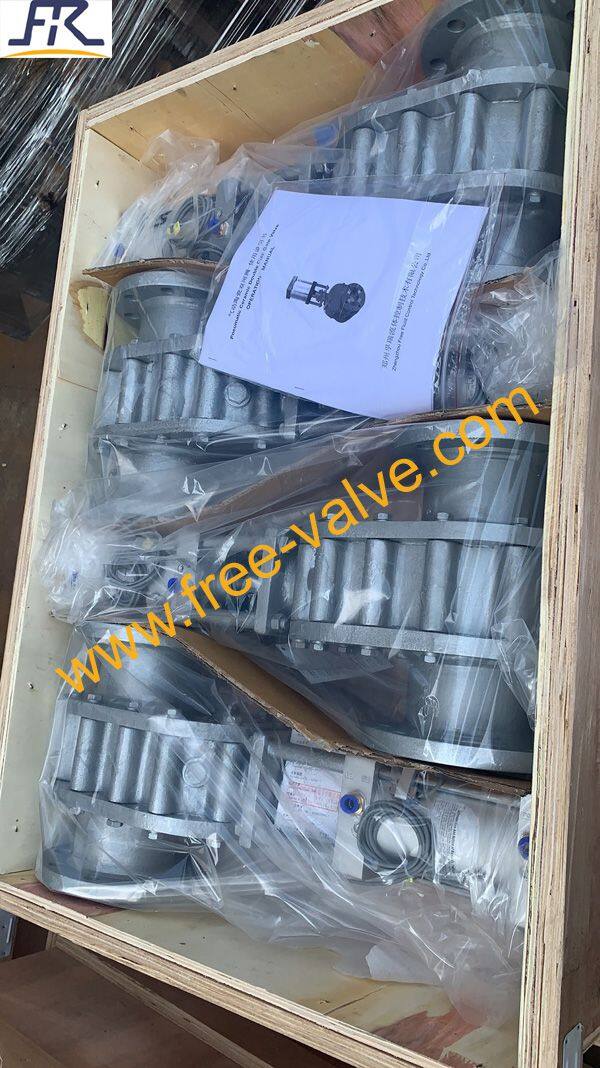

10) Packing :Ply wooden box
Applications

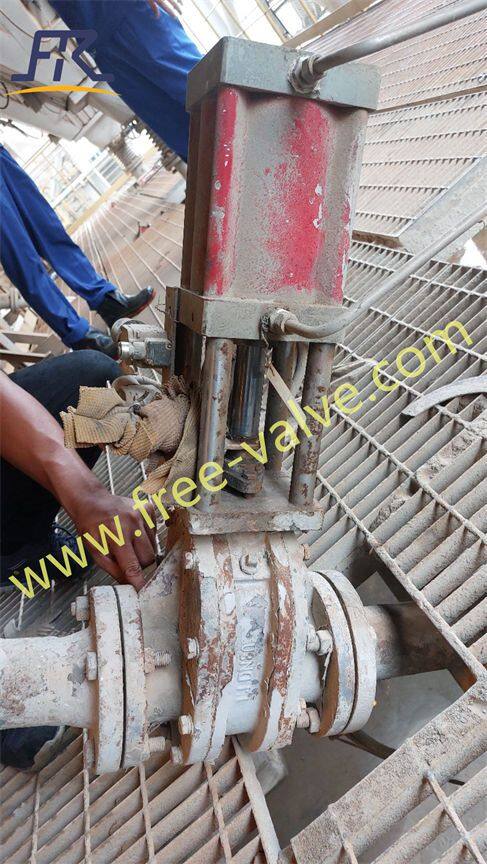

1. Power plant ash handling system.
2. Cement industry-dry powder conveying and dumping.
3. Dressing works-dry powder materials’ selection and conveying.
Price:500-6000USD/set
Price terms:FOB,CIF,CFR,FCA
Payment terms:TT,LC
Delivery time:30days
Model：FRZ644TC
Wechat ID:Free_Valve
Email&skype:marketing@free-valve.com
What’s app:+8613460250295
