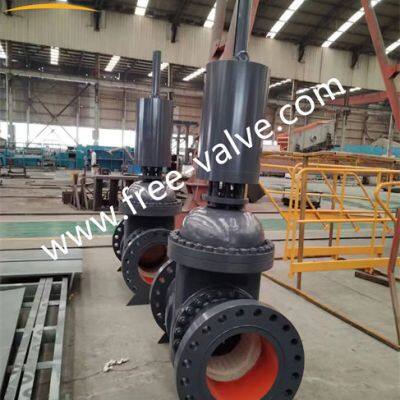

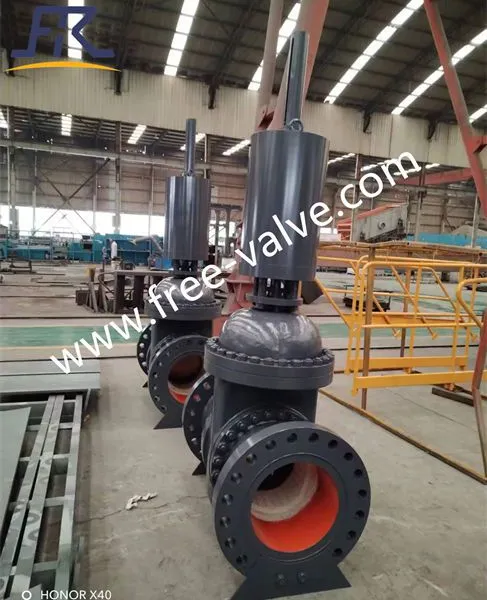

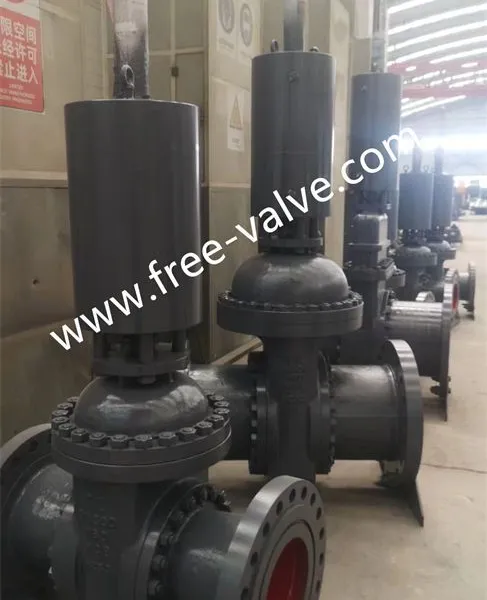

FREE-VALVE brand hydraulic operated high pressure ceramic lined gate valves are known as slurry gate valves. Its has special valve structure and anti abrasive sealing material and can cut off medium which contains solid particles , suitable for some very hard particles or serious erosive mediums in mining industry.They are installed to replace general high pressure metal seated gate valves which will be washed out easily.
Features:
1) Anti-high pressure wedge type valve design
3) The sealing surface is made of structure ceramic with abrasion resistance and long service life.
4)Hydraulic operated can save the manpower cost .
Technical Specification
1) Size Range: NPS2~NPS24,DN50~DN600
2) Pressure Range: PN100-PN160
3) Applicable Temperature.: 0~200℃
4) Connection Type: Flange
5) Sealing material: Engineering ceramics
6) Body Material: WCB
7) Pressure test:GB/T13927, API598
8) Face to Face: GB/T12221, ASME B16.10
9) Valve body : GB/T12224,ASME B16.34
10)Operating Mode:Hydraulic
Application
FREE-VALVE brand hydraulic operated ceramic lined gate valves are suitable for the conveying system with liquid-solid two-phrase medium , such as coal -water slurry , mining residue and coal residue in coal washing plant etc.
Model：FRZ741TC
Price:500-5000USD/set
Payment terms:TT,LC
Price terms:FOB,CIF,FCA,.CFR
Delivery time:30days
Origin:China
Brand:FREE-VALVE
