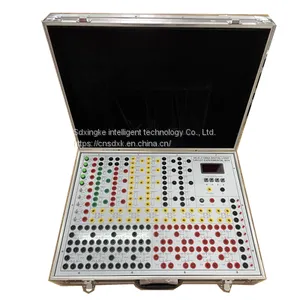

XK-ELC1006A digital logic circuit experimental case consists of normal logic gate circuit, trigger and signal generator, here adopts type of principle symbol and jack, it will be convenient for students learning the symbol of logic gate and trigger and using them. More spec. and electronic related training series, view at tvetlabsolution(a)aliyun com.
TECHNICAL PARAMETERS
Overall Size: 570 (L) x 430 (W) x 130mm (H); Weight: 3.5kg
The power supply: single-phase power supply, AC 220 V, 50/60 Hz, power≤30VA.
With grounding protection, over-current protection, power supply indication and main power indication
Working environment: temperature: -10℃～+40℃
Signal Source Technology Parameter:
DC 12V voltage source, capacity: 0.5A
DC 5V voltage source, capacity: 1A
- Signal generator:
Frequency range: 0Hz～2KHz, continuously adjustable
Signal type: square wave
Signal level type: TTL
Duty ratio adjustable range: 0%～100%
Frequency, waveform selection and duty ratio adjustable independently
ACCESSORIES
K4 Experiment wires: 30 pieces
Power line: 1pce
Manual book: 1pce
TRAINING ITEMS
More spec. and electronic related training series, view at tvetlabsolution(a)aliyun com
Learning structure and working principle of AND gate circuit
Learning structure and working principle of OR gate circuit
Learning structure and working principle of NOT gate circuit
Learning structure and working principle of NAND gate circuit
Learning structure and working principle of NOR gate circuit
Learning structure and working principle of the RS flip-flop
Learning structure and working principle of the JK flip-flop
Learning structure and working principle of the D flip-flop
Learning logic algebra
Study the application of logic gate circuit
Learning using gate circuit to implement simple logic design
Learning digital combinational logic circuits
Study the application of RS trigger
Study the application of JK trigger
Study the application of D trigger
