XK-ELC01X Basic Circuit Experiment Kit
1. Product Introduction

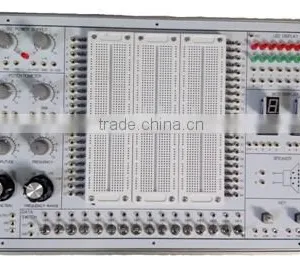

XK-ELC01X basic circuit experiment kit includes experiment power circuit, signal source circuit, input switch, output display circuit and bread board. It adopts jack type, easy for student to do the experiments of artificial circuit and digital circuit.
2. Technical Parameter
Overall size: 340*260*120mm, weight: 3.5Kg
Power supply: single phase, AC220V, frequency 50/60Hz, power ≤20VA
With the power indication, grounding protection, over current protection
Working environment: temperature -10℃~+40℃
3. Signal Source Technical Indicator
DC ±5V voltage source, capacity 1A
DC 0-±15V voltage source, capacity 1A
Frequency signal source 1-100KHz, 5 files can be adjustable, sine wave, triangular wave, square wave can be selected
4. Product Configuration
4.1Panel configuration
1) Power circuit module includes DC±5V voltage source, DC 0-±15V adjustable voltage source
2) Signal source circuit module: output 1-100KHz square wave, triangular wave, sine wave, frequency can be adjusted: 1-10Hz,10-100Hz,100-1KHz,1K-10KHz,10K-100KHz, amplitude 0-10V adjustable.
3) Potentiometer: 1 piece of 1KΩ,1 piece of 100KΩ, lead to the ports.
4) Keys: 1 piece of self-lock key, 1 piece of non self-lock key
5) Switch: 16 pieces of toggle switch
6) Loudspeaker: 8Ω0.5W,lead to two input ports
7) LED display: 8 pieces of red LED, 8 pieces of green LED, common anode connection.
8) Nixie tube: two pieces common cathode nixie tube, two ways BCD code input.
9) Bread board: 2500 holes, 2.54mm distance between holes, 150*160mm
4.2Accessories
Power line: 1 piece
Bread board connection wires: 100 pieces
K2 connecting wires: 10 pieces
Manual: 1 piece
